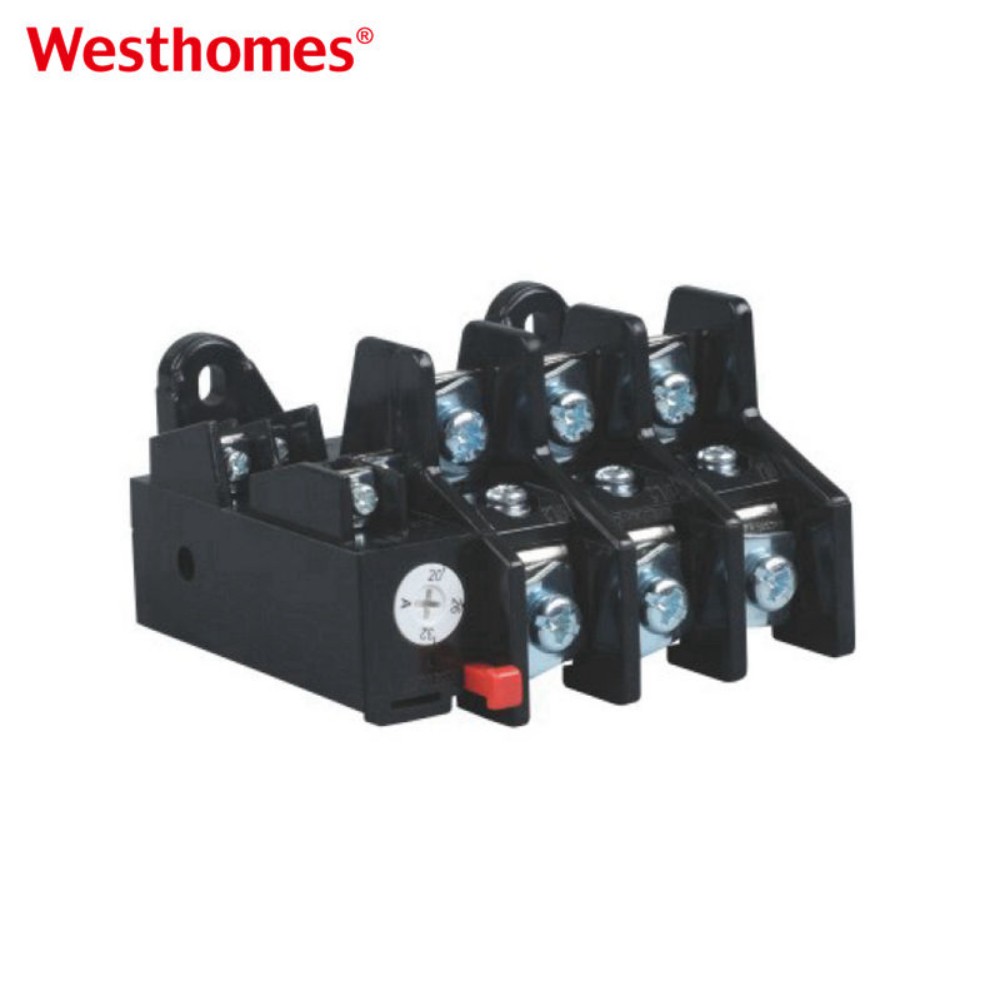

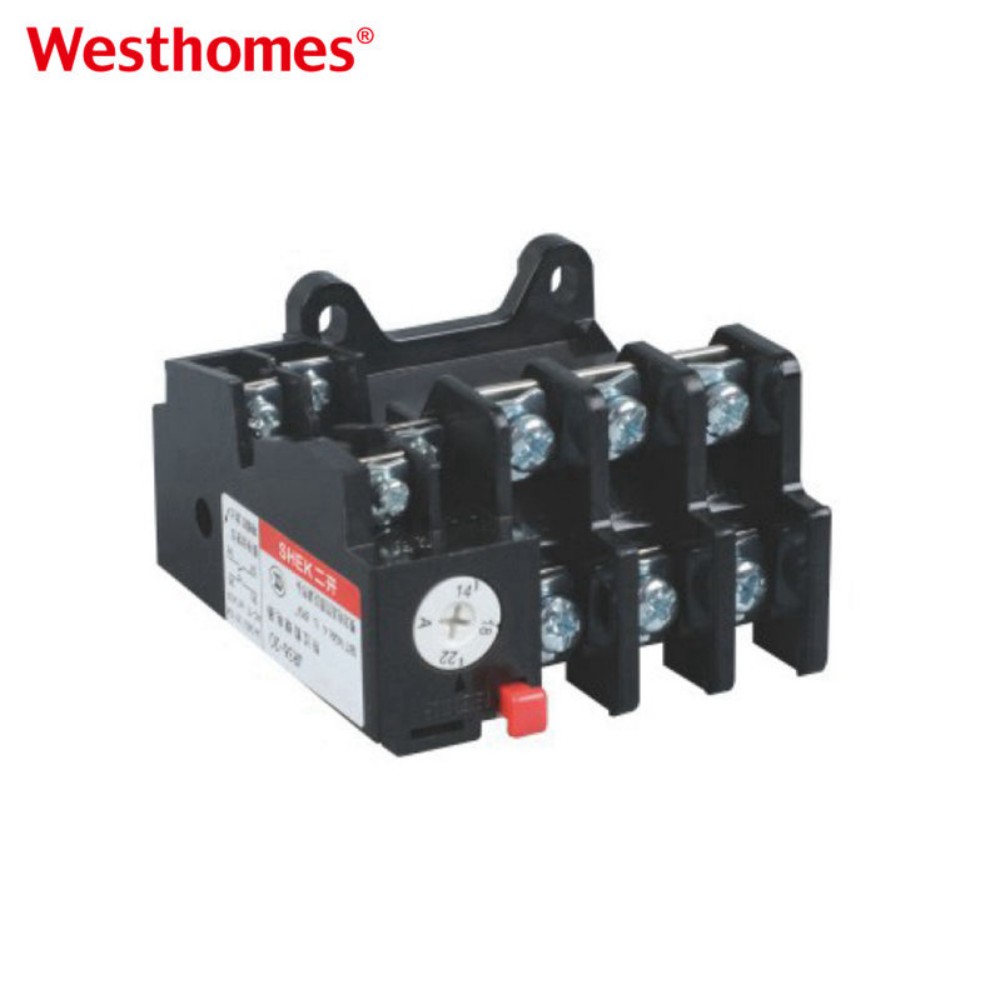

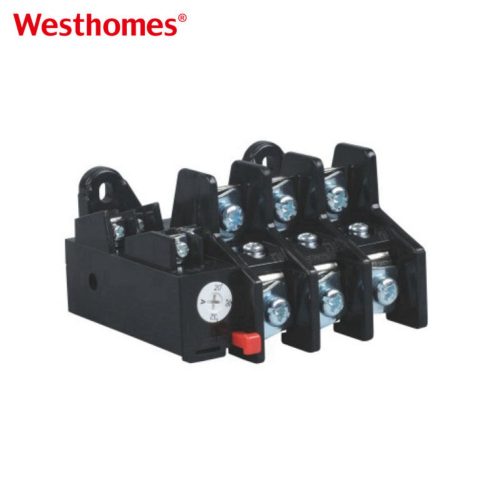

Westhomes JR36 sealed electromagnetic thermal overload relay, miniature pin style with durable AC copper contacts, rated 0.1-140A and adjustable 9-95A, 3-phase stable structure, flexible mounting, robust long-distance control for industrial motors.
Westhomes JR36 sealed electromagnetic thermal overload relay, miniature pin style with durable AC copper contacts, rated 0.1-140A and adjustable 9-95A, 3-phase stable structure, flexible mounting, robust long-distance control for industrial motors.
The Westhomes JR36 sealed electromagnetic thermal overload relay is a professionally designed industrial protection component specifically designed for reliable remote motor control and comprehensive thermal overload protection. This miniature needle relay features a fully sealed electromagnet with stronger dust, moisture, and electrical interference resistance, making it fully adaptable to various industrial working environments.
Key Features：
Extra-Long Service Life & Low Upkeep: Crafted with wear-resistant industrial-grade materials and precision manufacturing, built for sustained durability, requiring only minimal routine maintenance to keep optimal performance.
Versatile Mounting Flexibility: Supports both screw mounting and standard DIN rail installation, with simple wiring and quick setup steps, adapting to different control cabinet layouts and installation demands.
Miniature Pin Type & Copper Contacts: Compact miniature size with standard pin interface saves installation space; premium AC copper contacts boost conductivity and contact stability for extended relay life.
Sealed Robust Construction: Fully sealed electromagnetic design with high-strength casing, resisting external damage and interference, delivering reliable long-distance switching and stable operation under heavy use.
Applications:
Harsh Environment Workshops
Equipment Retrofit & Replacement
Long-Distance Remote Control Systems
| Model | Current Adjus- tment Range |
Control Power(kW) | Pluggable Contactor | Short Circuit Protection Fusegreed Heating Current |
|||||
| 220V | 380V | 415V | 440V | 660V | aM | gG | |||
| JR28-09301d | 0.1~0.16 | CJX2-09~25 | 0.25 | 2 | |||||
| JR28-09302d | 0.16~0.25 | CJX2-09~25 | 0.5 | 2 | |||||
| JR28-09303d | 0.25~0.40 | CJX2-09~25 | 1 | 2 | |||||
| JR28-09304d | 0.40~0.63 | 0.37 | CJX2-09~25 | 1 | 2 | ||||
| JR28-09305d | 0.63~1 | 0.55 | CJX2-09~25 | 2 | 4 | ||||
| JR28-09306d | 1~1.6 | 0.37 | 0.55 | 0.75 | CJX2-09~25 | 2 | 4 | ||
| JR28-09307d | 1.6~2.5 | 0.37 | 0.55 | 0.75 | 1.1 | 1.5 | CJX2-09~25 | 4 | 6 |
| JR28-09308d | 2.5~4 | 0.75 | 1.1 | 1.5 | 2.2 | 3 | CJX2-09~25 | 6 | 10 |
| JR28-09310d | 4~6 | 1.1 | 2.2 | 2.2 | 2.2 | 4 | CJX2-09~25 | 8 | 16 |
| JR28-09312d | 5.5~8 | 1.5 | 3 | 3.7 | 3.7 | 5.5 | CJX2-09~25 | 12 | 20 |
| JR28-09314d | 7~10 | 2.2 | 4 | 4 | 4 | 7.5 | CJX2-09~25 | 12 | 20 |
| JR28-12316d | 9~13 | 3 | 5.5 | 5.5 | 5.5 | 10 | CJX2-09~25 | 16 | 25 |
| JR28-18321d | 12~18 | 4 | 7.5 | 9 | 9 | 15 | CJX2-09~25 | 20 | 35 |
| JR28-25322d | 17~25 | 5.5 | 11 | 11 | 11 | 18.5 | CJX2-09~25 | 25 | 50 |
| JR28-32353d | 23~32 | 7.5 | 15 | 15 | 15 | 22 | CJX2-32 | 40 | 63 |
| JR28-32355d | 28~36 | 10 | 18.5 | 22 | 22 | 30 | CJX2-32 | 40 | 80 |
| JR28-40353d | 23~32 | 7.5 | 15 | 15 | 15 | 22 | CJX2-40~80 | 40 | 63 |
| JR28-40355d | 30~40 | 10 | 18.5 | 22 | 22 | 30 | CJX2-40~80 | 40 | 80 |
| JR28-50357d | 37~50 | 11 | 22 | 25 | 25 | 37 | CJX2-40~80 | 63 | 100 |
| JR28-65359d | 48~65 | 15 | 25 | 30 | 30 | 45 | CJX2-40~80 | 63 | 100 |
| JR28-65361d | 55~70 | 18.5 | 30 | 37 | 37 | 55 | CJX2-40~80 | 80 | 125 |
| JR28-80363d | 63~80 | 22 | 37 | 45 | 45 | 75 | CJX2-40~80 | 80 | 125 |
| JR28-140365d | 80~104 | 30 | 45 | 55 | 55 | 75 | CJX2-115~170 | 125 | 200 |
| JR28-140367d | 95~120 | 30 | 55 | 75 | 75 | 90 | CJX2-115~170 | 125 | 224 |
| JR28-140369d | 110~140 | 37 | 63 | 75 | 75 | 110 | CJX2-115~170 | 160 | 250 |
| Selling Units | Single item |
| Quantity (pieces) | 1 – 100 | > 100 |
| Lead time (days) | 15 | To be negotiated |
| Theory | AC |
| Power Source | 50 Hz, 60 Hz |
| Terminal Shape | Screw or rail installation |
| Contact Material | CJX2 |
| Place of Origin | Zhejiang, China |
| Rated Current | 0.1-140A |
| Size | Miniature |
| Contact Load | Low Power |
| Model Number | JR28 |
| Brand Name | Westhomes |
