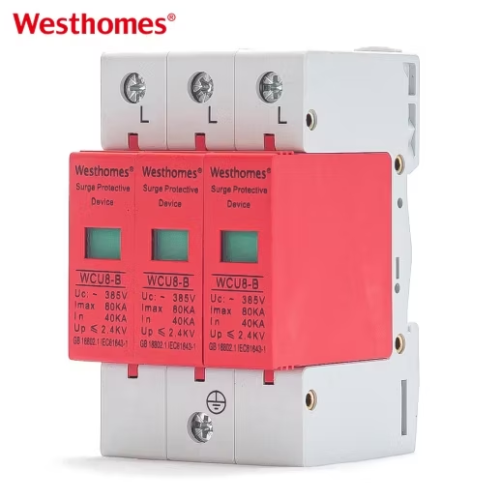

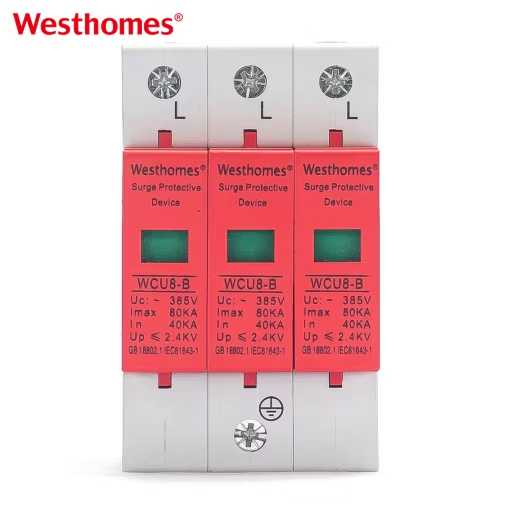

Westhomes WCU8-B 2P 60kA Surge Protection Device

An SPD is a parallel protective device that diverts fast transient overvoltage surges — caused by lightning strikes, utility switching, or inductive load commutation — to earth, clamping the voltage to a level safe for downstream electronics. The WCU8-B 2P version connects across the line (L) and neutral (N) of a single-phase supply, suppressing surges that could otherwise destroy TVs, refrigerators, computers, smart home gear, or industrial single-phase loads.

IEC 61643-11 classifies SPDs by the surge waveform and energy they can handle: Type 1 handles direct lightning current (10/350 µs) at the service entrance, Type 2 absorbs induced surges (8/20 µs) in sub-boards, and Type 3 provides final fine protection at the load. The WCU8-B 60kA 2P is a Type 1/2 combined SPD suitable for single-phase main or secondary distribution boards.

60 kA is Imax — the maximum peak 8/20 µs surge current the device can withstand in a single event. It represents the upper limit of surge energy the metal-oxide varistor (MOV) / gas discharge can absorb once without immediate destruction. It is a short-term rating, not a continuous current rating.

In is the nominal discharge current: the 8/20 µs surge current the SPD can survive repetitively (typically 15 shots) during its rated life, commonly 20 kA for a 60 kA class device. Imax (60 kA) is a single-event peak that is always larger than In. Specifying both In and Imax gives a much clearer picture of surge robustness than either number alone.

Up is the voltage protection level — the residual clamping voltage across the SPD terminals during a surge. A low Up (typically ~1.5 kV for a 230 V single-phase 2P SPD) means less voltage reaches the protected equipment. Up must be comfortably below the impulse withstand voltage (Uw) of the loads, otherwise the SPD cannot protect them even if it diverts the current correctly.

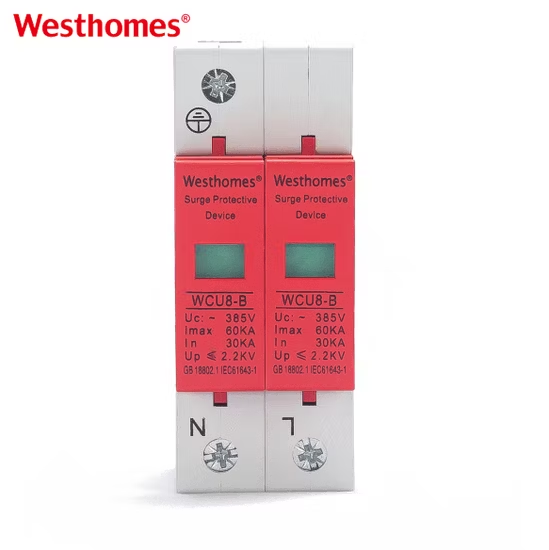

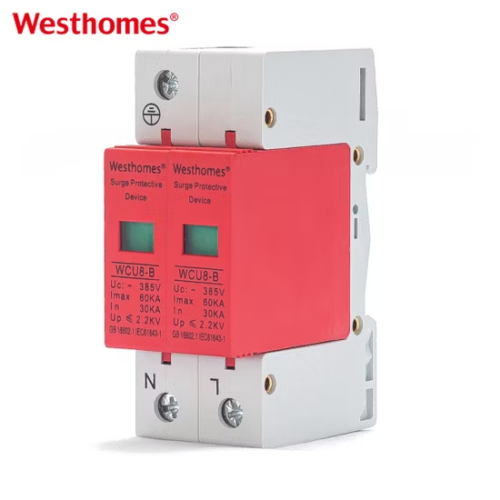

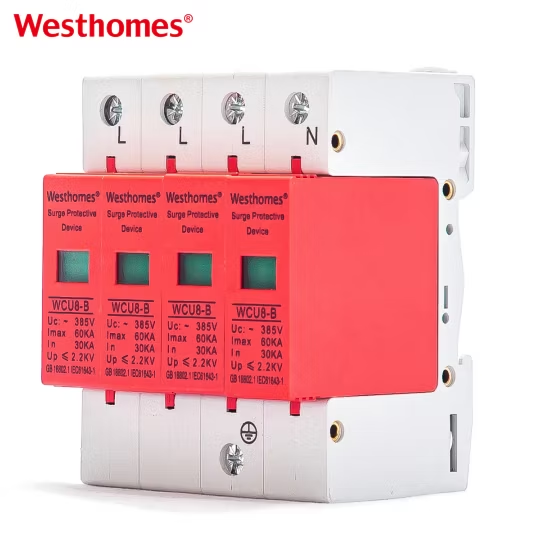

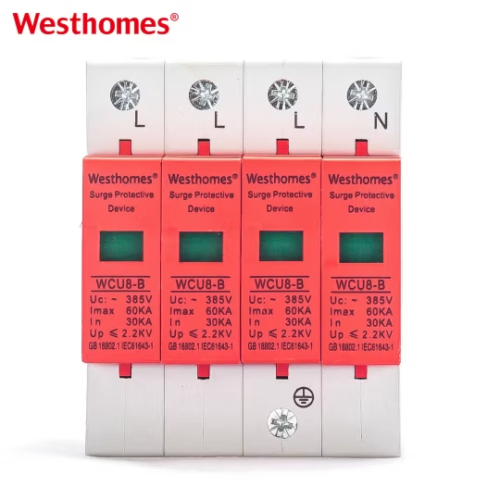

A 2P SPD has two poles and is designed for single-phase 230 V AC systems (L + N), with an additional PE terminal. It is the correct choice for homes, shops, offices, and single-phase industrial loads. A 2P SPD protects line-to-neutral and line-to-earth insulation, whereas a 3P version is required for three-phase 400 V networks.

The unit clips onto a standard 35 mm DIN rail inside a consumer unit or distribution board. L and N terminals are connected in parallel with the upstream supply (after the main isolating switch), and a backup overcurrent protection device (gG fuse or upstream MCB rated appropriately) must be fitted upstream of the SPD to clear the circuit if the SPD fails in short-circuit mode.

The front-face status indicator shows green when the SPD is healthy and red (or "Fault" / "Replace") when the internal arrester has degraded. A red indicator means the SPD can no longer provide its rated protection and should be replaced, even though the installation may still appear to be working normally. Remote-signal contact terminals are often available for monitoring the status remotely.

No. An MCB interrupts power-frequency overcurrents and short circuits (seconds to milliseconds, hundreds of amps), and an RCD trips on residual earth-leakage current at 30 mA or 100 mA. The SPD only handles microsecond-range surge transients and carries no continuous current. All three serve different failure modes and are used together in a properly protected installation.

The WCU8-B series is designed to IEC 61643-11 (and the corresponding GB/T 18802.11 national standard) and carries CE marking. Routine maintenance consists of visual inspection of the status indicator once or twice a year, and after any nearby lightning strike; the SPD should also be replaced when the indicator goes red, and its earth connection checked for tightness.
