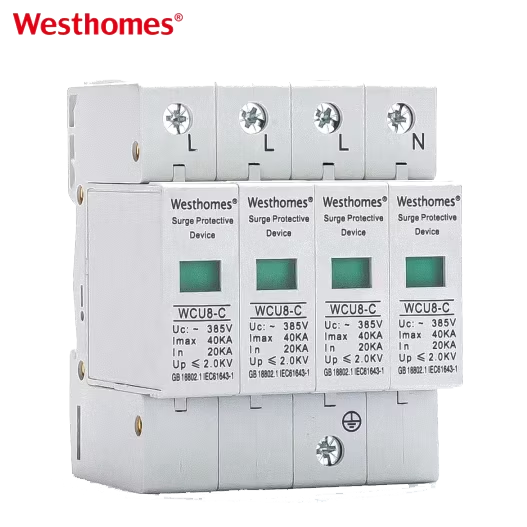

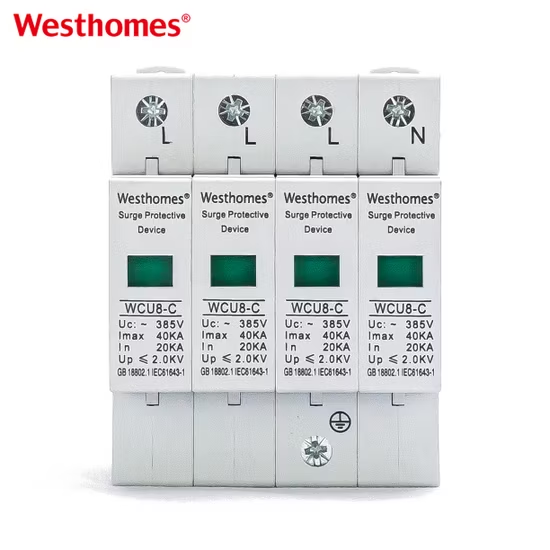

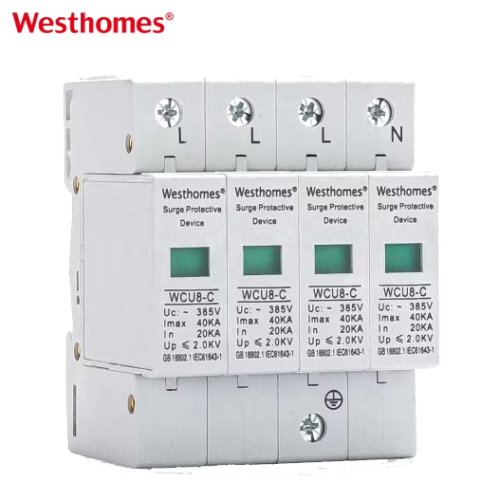

Popular Electric WCU8-C 4P 40kA Surge Protection Device

The WCU8-C steps the discharge current class up to 40 kA Imax (8/20 µs) compared with 20 kA on the WCU8-D, so it absorbs larger and more frequent surge energy. Both are 4P Type 2 DIN-rail SPDs for three-phase boards, but the WCU8-C is aimed at heavier-duty locations — long overhead feeds, exposed sites, industrial or commercial buildings — while the WCU8-D suits standard residential and light loads. Choose the C-series where lightning exposure or switching activity is higher.

Imax is the maximum 8/20 µs peak surge current the SPD can survive once. A 40 kA Imax device can absorb roughly double the single-shot energy of a 20 kA unit, giving greater margin in high-surge environments. It does not change the mains voltage or your normal current; it only matters during transient events. Pair it with a correspondingly sized upstream backup disconnector.

Up is the clamping (residual) voltage the SPD lets through to the load during a surge. A lower Up means tighter protection for sensitive electronics. On a 40 kA Type 2 arrester the Up is typically in the 1.5–2.5 kV range, which is adequate for general commercial and industrial loads; for servers, PLCs or precision instrumentation, add a coordinated Type 3 SPD closer to the equipment to bring the clamped voltage even lower.

Type 1 sits at the service entrance to handle direct lightning current (10/350 µs, Iimp); Type 2 in distribution boards handles switching and induced surges (8/20 µs); Type 3 is point-of-use, near sensitive equipment. The WCU8-C 40kA is a Type 2 stage. In a fully protected three-phase building it is installed downstream of any Type 1 entrance arrester, and any Type 3 devices should sit downstream of it, with Up values coordinated down the chain.

Yes. A 4P SPD protects L1, L2, L3 and N in a three-phase four-wire (TN-S/TN-CS/TT) supply in a single modular unit. It clamps phase-to-earth and phase-to-neutral surges simultaneously across all three legs. If your site is genuinely single-phase, use a 1P or 1P+N model instead; 4P is the correct selection for factories, offices, retail units and machinery with three-phase power.

It diverts indirect lightning surges induced on incoming overhead lines, and internal switching transients from large motor starts, transformer switching, contactor operation, capacitor banks and variable-frequency drives. As a Type 2 device it does not intercept direct lightning strike current (10/350 µs), which requires a Type 1 arrester at the entrance; it handles the residual energy that reaches the distribution board.

Clip the 4P unit onto a 35 mm DIN rail in the main or sub distribution board, wire it in parallel across L1/L2/L3/N and PE with short, straight leads under roughly 0.5 m, and bond it firmly to the earth bar. Install the manufacturer-recommended backup overcurrent device (gPD/fuse or MCB) ahead of the SPD so that a SPD short-circuit failure cannot itself become a hazard. All wiring and earthing must be to local code.

Green indicates the thermal disconnector is closed and the varistor is healthy; red (or a tripped flag) means the built-in thermal protection has disconnected the failed varistor and the SPD is no longer offering protection. Replace the pluggable module immediately, even though the rest of the installation keeps running. After a major thunderstorm or a known surge event, inspect all four pole modules and replace any that show red.

It is suited to commercial and industrial three-phase installations such as factories, workshops, server rooms, retail stores, hotels, schools and apartment mains boards, especially where the supply includes overhead sections or the site sits in a lightning-prone region. It is also appropriate where heavy machinery, welders, lifts or large motors create frequent switching transients. For a simple underground-supply domestic board, the 20 kA WCU8-D is usually sufficient.

It is designed and type-tested to IEC 61643-11 for low-voltage surge protective devices (with local equivalent standards where required). Maintenance consists of quarterly-to-annual visual checks of the status windows, a verified earth bond, and replacement of any module showing red; after severe storm seasons or major surge events, record the condition. A qualified electrician can also perform periodic resistance/insulation checks on the SPD circuit using appropriate test equipment.
