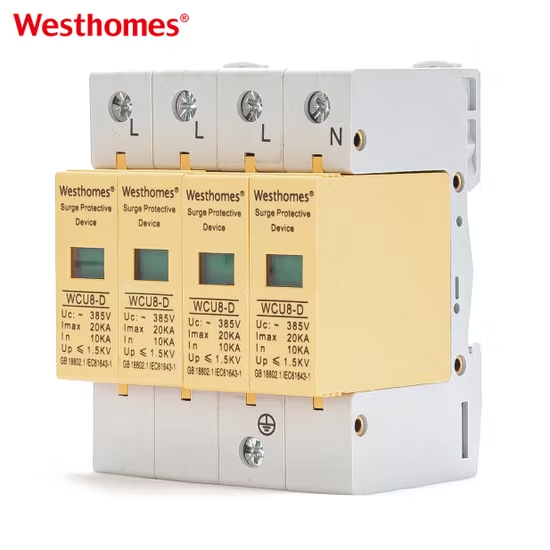

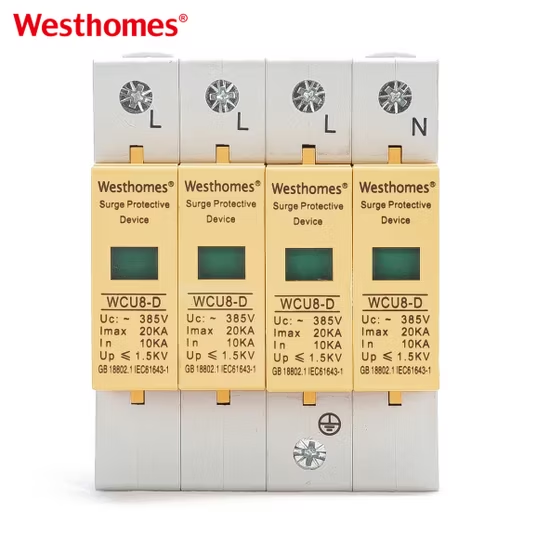

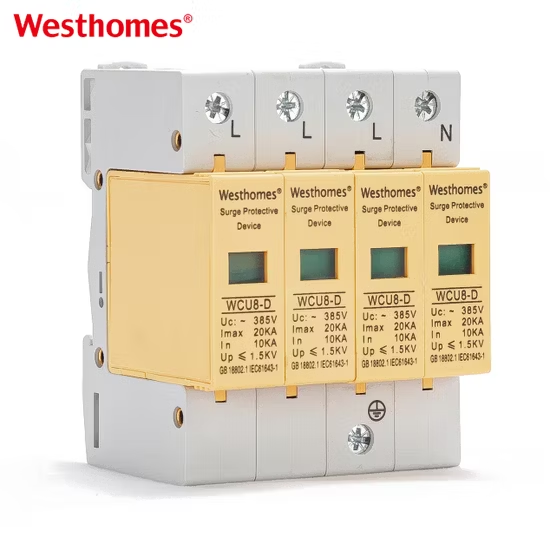

Westhomes WCU8-D 4P 20kA Surge Protection Device

An SPD is a voltage-clamping device that shunts transient overvoltages (microsecond spikes caused by lightning or switching) safely to earth, instead of letting them pass through to your appliances. The WCU8-D 4P is a DIN-rail, Type 2 low-voltage AC surge arrester installed in the distribution board to protect downstream wiring and sensitive electronics. It sits in parallel with the circuit and does not interrupt normal power flow.

20 kA refers to Imax, the maximum peak discharge current (8/20 µs surge waveform) the SPD can withstand once without damage. For typical residential and light commercial three-phase boards with underground or partly overhead supply, a 20 kA Type 2 SPD is a common and adequate choice. If the building has long overhead lines or sits in a high-flash-density lightning region, a higher 40 kA class (such as the WCU8-C) may be preferable.

In is the nominal discharge current the SPD can handle repeatedly (a defined number of times), while Imax is the single-shot maximum current it can survive once. In other words, In describes routine duty, and Imax is the upper one-off survival limit. Always check both figures on the nameplate when sizing protection; a 20 kA Imax model will have a correspondingly lower In.

4P means the SPD has four protected poles: three phase conductors plus the neutral, used on a three-phase four-wire (3P+N) supply. It clamps surge voltage on L1, L2, L3 and N relative to earth in one device. Single-phase installations should use a 1P or 1P+N unit instead; a 4P SPD is for commercial/industrial three-phase distribution boards.

Up is the residual clamping voltage the SPD lets through after it activates — the voltage your protected equipment actually sees during a surge. The lower the Up, the tighter the protection for sensitive electronics. A typical Type 2 SPD clamps to roughly 1.5–2.5 kV, which is far below the thousands of volts a surge can reach but still above mains voltage, so it protects rather than disconnects the load.

It protects against indirect lightning-induced surges and internal switching transients (from motor starting, contactor switching, capacitor banks, etc.). A direct strike to the building or incoming line carries far more energy (10/350 µs waveform) and requires a Type 1 class arrester. As a Type 2 device, the WCU8-D 20kA handles the residual surge energy downstream of the building's external lightning protection.

An MCB trips on overcurrent (too many amps causing overheating or a short circuit), and an RCD/RCBO trips on earth-leakage current; both protect the wiring and prevent fire/shock. An SPD does none of these — it clamps transient voltage spikes in microseconds and never touches normal current flow. They are complementary: you need the breakers for fault current and the SPD for lightning/switching surges.

It clips onto a standard 35 mm DIN rail inside the distribution board and should be wired in parallel across the supply using short, straight connections, with a reliable, low-resistance PE earthing conductor. Fit it after the main switch and ideally ahead of the final-wayways, and coordinate it with a dedicated upstream overcurrent device (gPD/fuse) as the manufacturer specifies. Keep leads under about 0.5 m to minimise residual inductive voltage.

A green (normal) window means the internal thermal disconnector is closed and the MOV is active. If the window turns red (or shows a tripped flag), the internal disconnector has opened after absorbing surge energy and the SPD is no longer protecting — even though the panel still has mains power. Switch off, fit an identical replacement module or unit, and investigate whether a nearby strike or repeated surges caused it.

The WCU8-D is designed to the IEC 61643-11 family of standards for low-voltage surge protective devices (and equivalent EN 61643-11 in the EU market). Maintenance is visual: inspect the status window at least annually and after major thunderstorms, confirm the earthing is intact, and replace the module whenever the indicator shows red. Record inspection dates on the board schedule.
