Westhomes WSH3-100 isolator switch offers 32A-100A rating, 1P/2P/3P/4P options, 400V insulation & 2kA short-time withstand current. Ideal for industrial power isolation (-5~+40°C).
Westhomes WSH3-100 isolator switch offers 32A-100A rating, 1P/2P/3P/4P options, 400V insulation & 2kA short-time withstand current. Ideal for industrial power isolation (-5~+40°C).

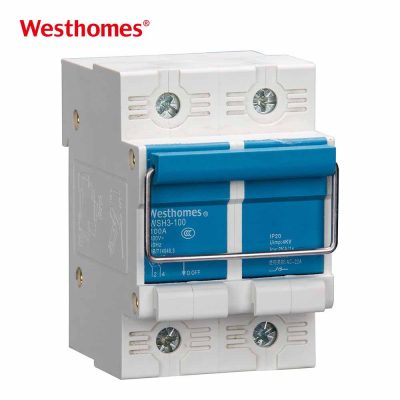

Westhomes WSH3-100 small copper isolator switch delivers flexible 1P-4P configurations and 32A-100A current capacity for industrial power control. With 400V insulation, 2kA surge protection, and wide temperature adaptability, it’s a reliable solution for safe power isolation and circuit switching.
Key Features：
Flexible Current Rating: 32A-100A range (extended from 20A) to match diverse industrial load demands.
Overcurrent Protection: 2kA short-time withstand current defends against electrical surges and overloads.
Practical Design: Integrated pull rod, lock device, and busbar connection for easy operation and installation.
Multi-Pole Configurations: Supports 1P, 2P, 3P, 4P setups for customized power system integration.
Applications:
Renewable Energy Systems
Agricultural Machinery
Commercial & Building Electricals
| Model | WSH3-10018model;WSH3-10027model |
| Rated Current In(A) | 32、40、50、63、80、100 |
| Poles | 1P、2P、3P、4P |
| Selective categories | AC-22A |
| NominalInsulation Voltage Ui(V) | 690 |
| Rated OperationalVoltage Ue(V) | AC230V/AC400V |
| Rated Impulse Withstandvoltage Uimp(kV) | 4 |
| Rated Short Time Current lcw(kA)/1S | 1.2 |
| Rated Short-Circuit AbilityIcm(kA) | 2 |
| Mechanical Endurance | 20000 |
| Electrical Endurance | 10000 |
| Selling Units | Single item |
| Quantity (pieces) | 1 – 1,000 | > 1,000 |
| Lead time (days) | 30 | To be negotiated |
| Rated Voltage | 230 V, 400 V |
| Material | Copper |
| Place of Origin | Zhejiang, China |
| Type | Switches |
| Model Number | WSH3-100 |
| Brand Name | Westhomes |

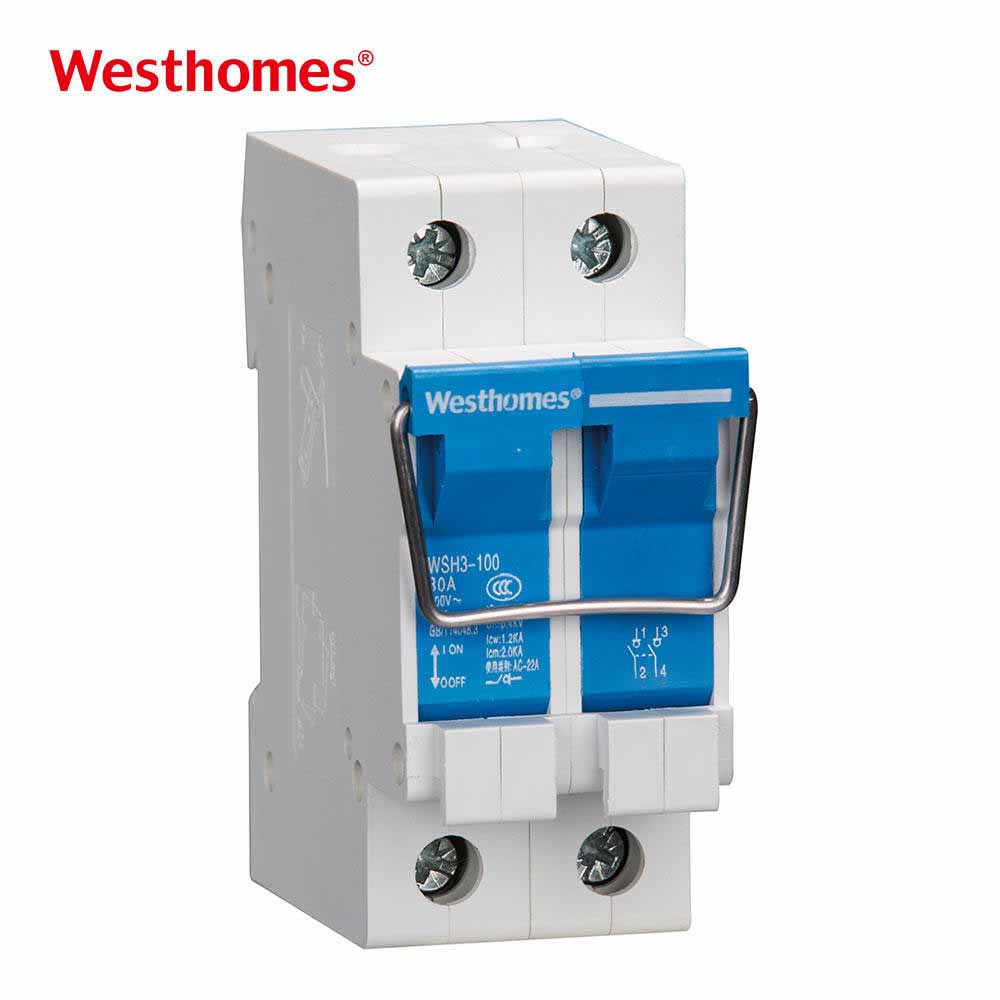

The Westhomes WSH3-100 Miniature Copper Isolator Switch is a manual switching device designed to safely disconnect electrical circuits from the power supply. It is used for circuit isolation, maintenance safety, and power control in low-voltage distribution systems.
A copper isolator switch provides excellent electrical conductivity, reliable current carrying performance, and good durability. The use of copper conductive components helps ensure stable operation and long service life in electrical applications.
The WSH3-100 Miniature Copper Isolator Switch is designed with a rated current of up to 100A. It is suitable for low-voltage electrical systems requiring reliable manual isolation and switching control.
WSH3-100 indicates the product series and rated current. The “3” represents a three-pole configuration, while “100” refers to the rated current of 100A, making it suitable for three-phase circuit isolation applications.
The WSH3-100 is suitable for residential, commercial, and industrial electrical applications, including distribution boxes, control panels, machinery power isolation, and low-voltage power distribution systems.
An isolator switch is mainly used for manually disconnecting circuits and providing safe electrical isolation during maintenance. An MCB provides automatic protection against overload and short-circuit faults. They are often used together in electrical distribution systems.
Yes. The three-pole design of the WSH3-100 Miniature Copper Isolator Switch makes it suitable for three-phase systems, allowing three phase conductors to be disconnected simultaneously for safer operation and maintenance.
No. The WSH3-100 is designed for isolation and manual switching functions only. It does not provide overload or short-circuit protection, so suitable protective devices should be installed according to system requirements.
The WSH3-100 should be installed in a compatible electrical enclosure or distribution system according to the product specifications. Proper wiring methods and local electrical regulations should be followed during installation.
The WSH3-100 combines reliable isolation performance, durable copper conductive components, and a compact design. It provides a safe and efficient solution for manual circuit isolation in various low-voltage electrical applications.
