Understanding Series and Parallel Circuits

Series and parallel circuits are two fundamental ways to connect electrical components. Understanding them helps you see how electricity flows through everything from Christmas lights to home wiring.

Have you ever noticed that in an old string of holiday lights, if one bulb burns out, all of them go dark? That happens because those lights are wired in a series circuit. On the other hand, in your home’s lighting system, if one bulb burns out, the rest stay on. That’s because they are connected in a parallel circuit.

Let’s take a closer look at how series and parallel circuits work, where you can find them in real life, and why they behave so differently.

What Is a Series Circuit?

A series circuit is the simplest kind of electrical circuit. All components are connected one after another in a single loop. This means the electric current has only one path to follow.

Imagine a battery connected to two light bulbs in one continuous loop. The current flows from the battery, through the first bulb, then through the second bulb, and back to the battery. Because there is only one path, the same current passes through both bulbs.

If anything in that loop breaks, the entire circuit stops working. This is why in older holiday lights, if one bulb burns out, all of them turn off. The broken bulb opens the circuit and stops the current from flowing.

Key points about series circuits:

• There is only one path for current to flow.
• The same current flows through every component.
• The total voltage is shared among all components. For example, if a 9-volt battery powers two identical bulbs in series, each bulb will get about 4.5 volts.
• If one component fails, the whole circuit stops working.

Series circuits are simple to design and require less wiring, but they are not ideal for systems that need reliability. You can still find them in flashlights, where batteries and bulbs are connected in a single loop. When you turn the switch off, the circuit opens and the light goes out.

How Circuit Breakers Protect Series Circuits

In a series circuit, if an overload or short circuit happens anywhere along the path, the entire loop can overheat. This is where a circuit breaker comes in. A breaker monitors the flow of current and automatically disconnects power if the current exceeds safe levels.

For example, in a flashlight or simple tool powered by series-connected batteries, a built-in circuit breaker or fuse prevents overheating by cutting the current instantly. In larger series systems, like certain industrial setups, breakers make sure that a single fault doesn’t damage the entire line of connected equipment.

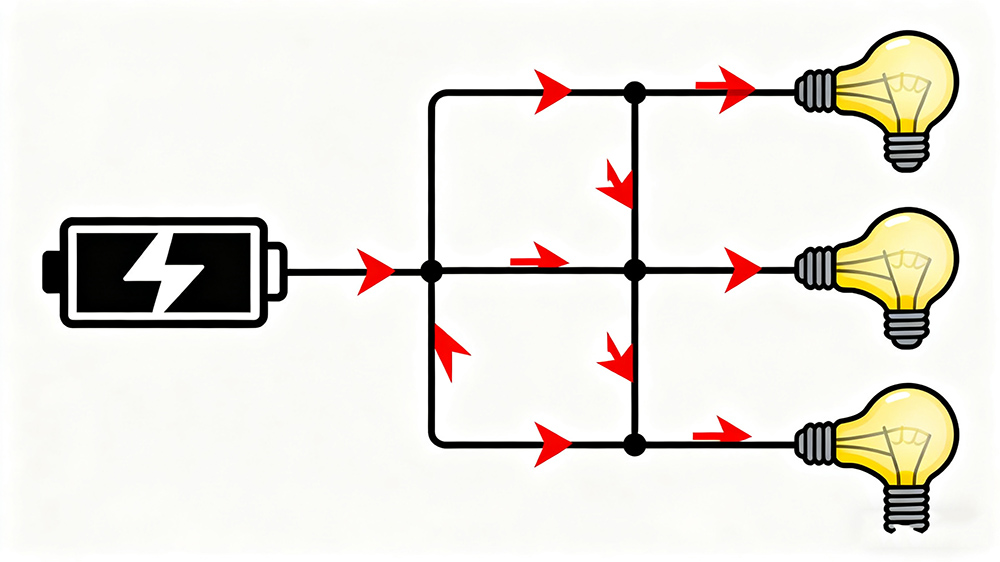

What Is a Parallel Circuit?

A parallel circuit has multiple paths for current to flow. In this type of circuit, all components are connected across the same two points. Each component has its own direct connection to the power source.

Imagine two light bulbs connected to the same battery, but each has its own separate wire path back to the battery. In this setup, each bulb gets the full battery voltage. The current splits and flows through each bulb separately.

If one bulb burns out, the other one stays lit because it still has its own path. This is exactly how your home’s electrical system works. When one lamp or appliance is switched off or fails, everything else keeps running.

Key points about parallel circuits:

• Each component has its own path for current.
• Every branch gets the same voltage as the power source.
• The total current is the sum of the currents in all branches.
• If one branch stops working, the others continue running.

You can see parallel circuits in almost every building. Your lights, outlets, and appliances all receive full voltage and work independently. This design makes electrical systems safe and convenient to use.

Why Circuit Breakers Are Crucial in Parallel Circuits

In a parallel setup, every branch draws its own amount of current. The total current flowing through the main supply line is the sum of all the branches. That’s why if you plug in too many high-power devices at once, the total current can become dangerously high.

Circuit breakers act as guardians for parallel circuits. When the total current rises beyond a safe level, the breaker trips and stops the flow, preventing overheating and fire. Each branch can also have its own smaller breaker, providing localized protection for different areas or equipment.

For instance, your kitchen might have a 20-amp breaker while your lighting circuits have 10- or 16-amp breakers. If one circuit becomes overloaded, only that breaker trips. The rest of your home keeps running safely.

Comparing Series and Parallel Circuits

Understanding how series and parallel circuits behave helps explain why circuit breakers are designed the way they are.

In a series circuit, current is the same everywhere, but voltage divides across components. In a parallel circuit, voltage stays the same across all branches, while current divides among them.

This means:

• In a series circuit, one failure stops the entire system.
• In a parallel circuit, devices work independently, but total current increases as more devices are added.

Because of this difference, circuit breakers are usually installed in parallel circuits, such as those in homes and offices, to manage the overall load and isolate faults in specific branches.

Real-Life Examples

Series Circuits:

• Simple flashlights that connect batteries and bulbs in one path.
• Older decorative light strings, where one broken bulb shuts off the rest.
• Battery packs where cells are connected end-to-end to increase voltage.

Parallel Circuits:

• Home and office wiring systems.
• Car electrical systems where each device (like headlights or radios) has its own circuit.
• Industrial control panels where motors, fans, and lights operate independently.

In all these systems, circuit breakers ensure safety. For small devices, miniature breakers (MCBs) or fuses handle protection. For larger installations, molded case circuit breakers (MCCBs) or residual current circuit breakers (RCCBs) safeguard equipment and prevent electrical accidents.

Advantages and Disadvantages of Series and Parallel Circuits

Circuit Type	Advantages	Disadvantages
Series Circuit	• Simple to design and wire. • Current is the same through all devices.	• One failure breaks the entire circuit. • Voltage is divided, so each device may receive less power.
Parallel Circuit	• All devices receive full voltage. • Components work independently. • Easier to expand or modify safely.	• Requires more wiring. • Total current can be high, requiring proper circuit protection.

Tip: Circuit breakers solve the last issue by automatically cutting power when current exceeds safe levels.

Wrapping Up

Series and parallel circuits are at the heart of every modern electrical system. Series circuits are simple and easy to understand, while parallel circuits provide flexibility, stability, and reliability for large-scale installations.

From industrial plants to commercial buildings, most systems today rely on parallel wiring protected by circuit breakers to maintain safe, uninterrupted power flow.
