Introduction: Why Choose a Double Pole MCB?
A Double Pole (DP) Miniature Circuit Breaker (MCB)is a vital safety device that simultaneously isolates both the Live (Line) and Neutral conductors in a circuit.
Key Difference from a Single Pole (SP) MCB:
AnSP MCB only switches the Live wire. If a fault (like a lightning surge or wiring issue) causes the Neutral wire to become energised, a shock risk remains even when the breaker is “off.”
ADP MCB provides complete isolation by disconnecting both wires.

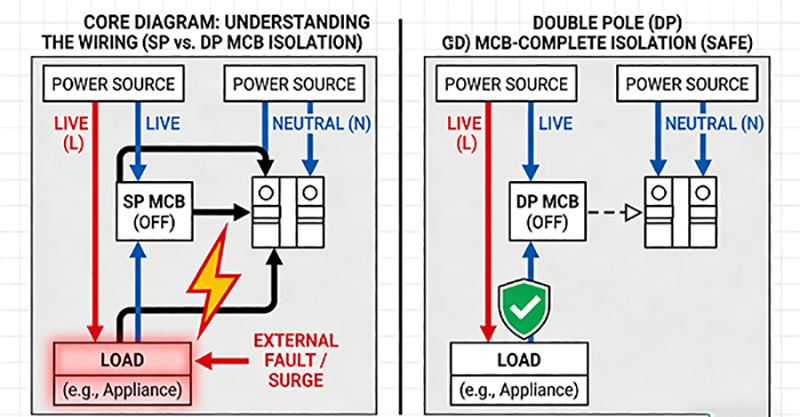

Core Diagram: Understanding the Wiring
If the incoming supply needs both conductors switched, a double pole device from the same series keeps the enclosure dimensions and terminal layout consistent.
Preparation & Identification
Tools You Will Need:
- Insulated screwdrivers
- Wire strippers
- Multimeter (for verification)
- Torque screwdriver (recommended for proper termination)
Understanding the Terminals:
- Image: Typical DP MCB terminal markings.
- Input (Supply): Top terminals, often marked“Line”or“Supply.”
- Output (Load): Bottom terminals, often marked“Load.”
- L & N Markings: Crucial! Identify which terminal is for Live (L) and which is for Neutral (N).
The common configurations are:
- Left ‘N’ / Right ‘L’
- Left ‘L’ / Right ‘N’
Logical Check: Ensure the wiring is straight through: Top L to Bottom L, Top N to Bottom N.
Common Wiring Mistakes to Avoid
Crossed Polarity:
Connecting Supply L to Load N and Supply N to Load L. This can cause immediate short circuits or damage equipment.
Clamping on Insulation:
The terminal screw grips the wire’s insulation sleeve instead of the bare copper. This leads to high resistance, overheating, and is a major fire hazard.
Reverse Feeding:
Powering the MCB from the bottom terminals. While some brands allow it, always follow “Top In, Bottom Out” as the industry standard. This ensures safety for anyone servicing the panel later.
Frequently Asked Questions (FAQ)
Can I use a Double Pole MCB for a single-phase circuit?
Absolutely. In fact, it is recommended for the added safety of complete Neutral isolation, especially for high-value appliances or as a main switch.
What happens if I swap the Live and Neutral wires?
The circuit may still power on, but it is a serious safety code violation. It can compromise the MCB’s internal arc-quenching performance and leave dangerous voltage on parts of the circuit that should be neutral.
Conclusion
Correctly wiring a Double Pole MCB is fundamental to both functionality and life safety. It ensures complete circuit isolation, protecting both people and equipment. Always prioritize using high-quality, clearly marked components and adhere to local electrical codes.
