Wide Current Range CJX2-11 AC Contactor
CJX2-11 AC contactor, 9A–95A current range, 50Hz/60Hz, 1NO+1NC auxiliary contacts, 3-phase, screw or rail mounting.
The CJX2-11 AC Contactor is a reliable and versatile solution for motor control and power switching in industrial environments. Designed to operate on both 50Hz and 60Hz systems, this contactor covers a wide current range from 9A to 95A, accommodating a broad spectrum of equipment and load requirements.
Key Features：
Flexible Mounting Options: Supports screw mounting and DIN rail installation for easy setup
Long Operational Life: Robust construction minimizes maintenance and extends service intervals
High-Quality Construction: Engineered for consistent performance, even in demanding industrial environments
1NO + 1NC Auxiliary Contacts: Provides built-in flexibility for control circuit integration
Applications:
Lighting and power distribution panels
Pump control systems
Conveyor and material handling equipment
Technical Parameter
| Model\Parameter | CJX2-09 | CJX2-12 | CJX2-18 | CJX2-25 | CJX2-32 | CJX2-40 | CJX2-50 | CJX2-65 | CJX2-80 | CJX2-95 | ||
| Rated working current (le A) | 380V | 8.5 | 11.5 | 16 | 22 | 30 | 37 | 44 | 60 | 72.5 | 85 | |
| 660V | 6.6 | 8.9 | 11.5 | 18 | 21 | 34 | 39 | 42 | 49 | 49 | ||
| Agreed heating current(Ith A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | ||
| Rated insulation(Ui V) | 690 | |||||||||||
| Controllable three-phase squirrel-cage motor Rated power(Pe kW) | 220V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 | |
| 380V | 4 | 5.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 | 45 | ||
| Coil power(VA) | Suction | 76 | 76 | 76 | 110 | 110 | 230 | 230 | 230 | 230 | 230 | |
| Keep | 10 | 10 | 10 | 11 | 11 | 32 | 32 | 32 | 32 | 32 | ||
| Mechanical life 10⁴times 1000 | 800 | 600 | ||||||||||

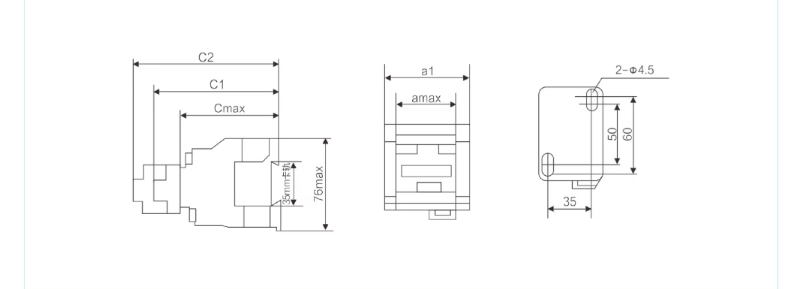

Shape Size And Installation Size
| Contactor Type | amax | Cmax | C1 | C2 |
| CJX2-09,12 | 46 | 81 | 111 | 138 |
| CJX2-18 | 46 | 86 | 116 | 143 |
| CJX2-25 | 58 | 96 | 126 | 153 |
| CJX2-32 | 58 | 101 | 131 | 158 |
| CJX2-40,50,65 | 79 | 115 | 145 | 172 |
| CJX2-80,95 | 86 | 125 | 155 | 182 |
Packaging and delivery
| Selling Units | Single item |
Lead time
| Quantity (pieces) | 1 – 1,000 | > 1,000 |
| Lead time (days) | 15 | To be negotiated |
Key attributes
| Electricity Type | AC |
| Frequency | 50 Hz, 60 Hz |
| Mounting Type | Screw or rail installation |
| Model Number | CJX2 |
| Main Circuit Rating Current | Other |
| Phase | 3 |
| Place of Origin | Zhejiang, China |
| Brand Name | Westhomes |
