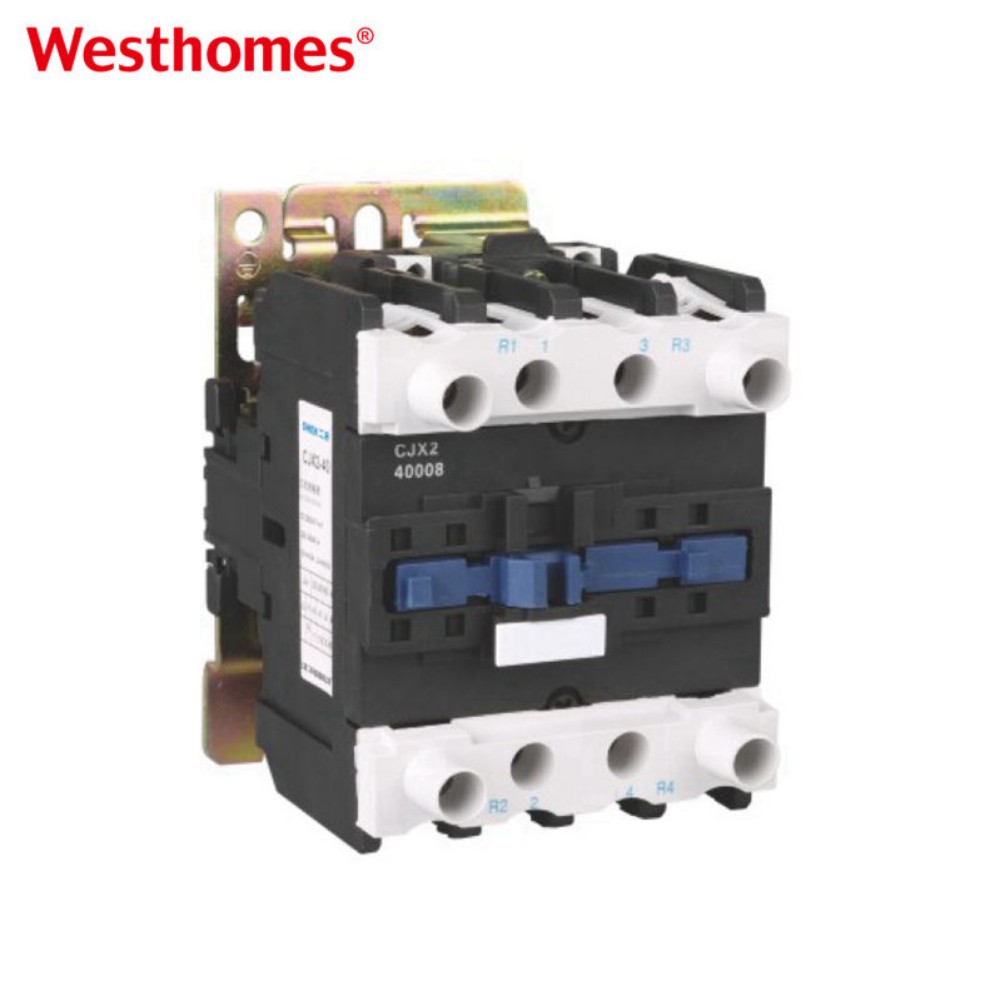

Westhomes CJX2-004-008 3-Pole AC Contactor
Westhomes CJX2-004-008 AC contactor, 3-pole, 10A–400A (up to 630A), 48V coil, 50Hz/60Hz, 3-phase. Screw or rail mount.
The Westhomes CJX2-004-008 Series AC Contactor is a high-capacity, 3-pole switching solution engineered for demanding industrial environments. Designed to operate on both 50Hz and 60Hz systems, this contactor supports a wide current range from 10A to 400A, with extended capability up to 630A, making it suitable for heavy-duty motor control, power distribution, and long-distance switching applications.
Key Features：
48V Coil Voltage: Ideal for low-voltage control circuits, enhancing safety and compatibility
Dual Frequency Operation: Fully compatible with both 50Hz and 60Hz power systems
Long Service Life: Durable construction reduces wear and maintenance frequency
3-Pole 3-Phase Design: Ensures stable and balanced power switching across all phases
Applications:
Elevator and escalator control panels
Long-distance switching in distributed control systems
Retrofit and upgrade of existing industrial control panels
Technical Parameter
| Model\Parameter | CJX2-09 | CJX2-12 | CJX2-18 | CJX2-25 | CJX2-32 | CJX2-40 | CJX2-50 | CJX2-65 | CJX2-80 | CJX2-95 | ||
| Rated working current (le A) | 380V | 8.5 | 11.5 | 16 | 22 | 30 | 37 | 44 | 60 | 72.5 | 85 | |
| 660V | 6.6 | 8.9 | 11.5 | 18 | 21 | 34 | 39 | 42 | 49 | 49 | ||
| Agreed heating current(Ith A) | 20 | 20 | 32 | 40 | 50 | 60 | 80 | 80 | 125 | 125 | ||
| Rated insulation(Ui V) | 690 | |||||||||||
| Controllable three-phase squirrel-cage motor Rated power(Pe kW) | 220V | 2.2 | 3 | 4 | 5.5 | 7.5 | 11 | 15 | 18.5 | 22 | 25 | |
| 380V | 4 | 5.5 | 11 | 15 | 18.5 | 18.5 | 22 | 30 | 37 | 45 | ||
| Coil power(VA) | Suction | 76 | 76 | 76 | 110 | 110 | 230 | 230 | 230 | 230 | 230 | |
| Keep | 10 | 10 | 10 | 11 | 11 | 32 | 32 | 32 | 32 | 32 | ||
| Mechanical life 10⁴times 1000 | 800 | 600 | ||||||||||
Shape Size And Installation Size
| Contactor Type | amax | Cmax | C1 | C2 |
| CJX2-09,12 | 46 | 81 | 111 | 138 |
| CJX2-18 | 46 | 86 | 116 | 143 |
| CJX2-25 | 58 | 96 | 126 | 153 |
| CJX2-32 | 58 | 101 | 131 | 158 |
| CJX2-40,50,65 | 79 | 115 | 145 | 172 |
| CJX2-80,95 | 86 | 125 | 155 | 182 |
Packaging and delivery
| Selling Units | Single item |
Lead time
| Quantity (pieces) | 1 – 1,000 | > 1,000 |
| Lead time (days) | 15 | To be negotiated |
Key attributes
| Electricity Type | AC |
| Frequency | 50 Hz, 60 Hz |
| Mounting Type | Screw or rail installation |
| Model Number | CJX2 |
| Main Circuit Rating Current | Other |
| Phase | 3 |
| Place of Origin | Zhejiang, China |
| Brand Name | Westhomes |
155 MBFREQUENTLY ASKED QUESTION (FAQ)
What is the Westhomes CJX2-004-008 3-Pole AC Contactor?
The Westhomes CJX2-004-008 3-Pole AC Contactor is an industrial electrical switching device designed for controlling AC motors, power distribution systems, and other electrical loads. It features a 3-pole design for three-phase applications and provides reliable switching performance for industrial control systems.
What are the main applications of CJX2-004-008 AC Contactor?
The CJX2-004-008 AC Contactor is commonly used in motor control systems, industrial automation equipment, control panels, elevators, pumps, compressors, HVAC systems, and other electrical applications requiring frequent switching operations.
What does 3-pole mean in the CJX2-004-008 contactor?
A 3-pole contactor means the device has three main power contacts used for controlling three-phase AC circuits. It can switch three power lines simultaneously, ensuring stable and balanced operation of three-phase electrical loads.
What is the coil voltage of the Westhomes CJX2-004-008 contactor?
The Westhomes CJX2-004-008 contactor is available with a 48V coil, making it suitable for low-voltage control circuits and industrial automation applications where safer control voltage is preferred.
What current range does the CJX2-004-008 AC Contactor support?
The CJX2-004-008 series supports a wide current range from 10A to 400A, with extended solutions available up to 630A. This allows users to select suitable models according to different motor power ratings and load requirements.
Can the CJX2-004-008 contactor be used in both 50Hz and 60Hz systems?
Yes. The Westhomes CJX2-004-008 AC Contactor is designed to operate in both 50Hz and 60Hz AC power systems, making it suitable for different international electrical standards and industrial projects.
How do I choose the right CJX2-004-008 contactor for a motor?
When selecting a CJX2-004-008 contactor, consider the motor rated current, operating voltage, motor power, starting method, and switching frequency. The contactor rated current should be higher than the motor’s normal operating current to ensure reliable and long-term performance.
What is the difference between a CJX2-004-008 contactor and a relay?
A contactor is designed for switching higher current loads such as motors and industrial equipment, while a relay is mainly used for lower-power control signals. The CJX2-004-008 provides stronger switching capability and is suitable for frequent industrial operations.
How is the Westhomes CJX2-004-008 contactor installed?
The CJX2-004-008 contactor supports flexible installation methods, including screw mounting and rail mounting. This design makes it convenient for installation in industrial control cabinets and electrical distribution systems.
Why choose Westhomes CJX2-004-008 3-Pole AC Contactor?
The Westhomes CJX2-004-008 AC Contactor offers reliable switching performance, durable construction, 50Hz/60Hz compatibility, and flexible installation options. It is designed to provide stable operation and long service life in motor control, power distribution, and industrial automation applications.
