WNB1-63 1P MCB 6kA Miniature Circuit Breaker | B/C/D Curve
Westhomes WNB1-63 1P Miniature Circuit Breaker – Reliable Overload & Short Circuit Protection for Single-Phase Circuits.
Get quick appointment for technical support!

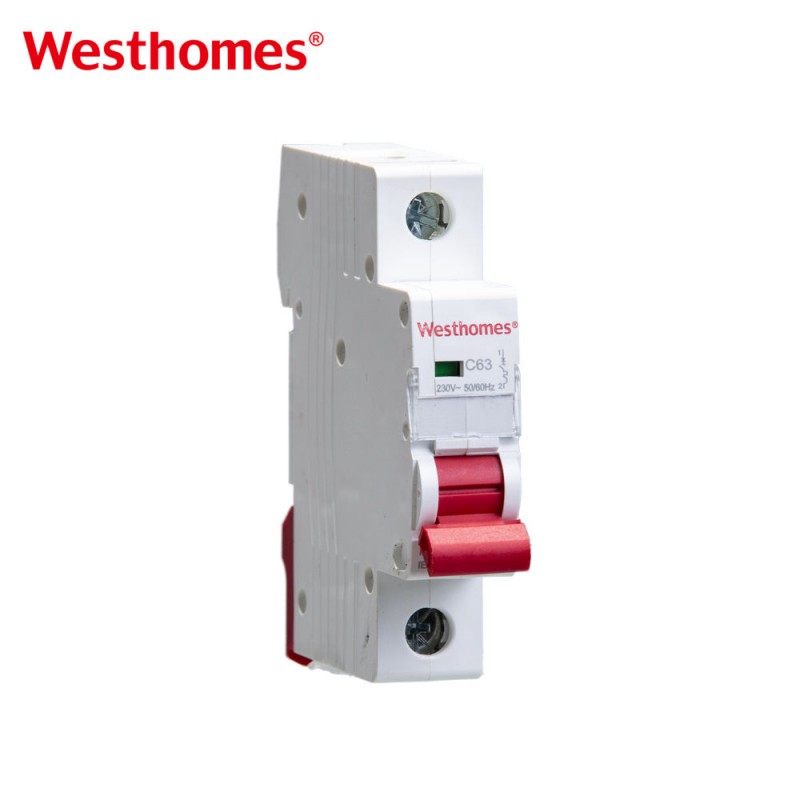

WNB1-63 1P MCB 6kA Miniature Circuit Breaker
Shop the Westhomes WNB1-63 1P MCB. 230V single-pole protection with 6kA breaking capacity. Available in B/C/D curves. DIN rail mount. Ideal for home lighting.
The Westhomes WNB1-63 Series 1P MCB is designed to protect single-phase lighting and socket circuits against overloads and short circuits. Engineered for residential and commercial distribution boards, this single-module (18mm) breaker maximizes space efficiency while delivering high-performance protection.
Key Features:
Single Pole Protection: Switches and protects the phase (live) conductor only, ideal for final sub-circuits.
High Breaking Capacity: Features a 6kA rated short-circuit capacity, ensuring rapid fault clearance to safeguard downstream equipment.
Multiple Tripping Curves: Available in B, C, and D curves. The C-curve characteristic is perfectly suited for standard lighting and receptacle loads.
Wide Application: Rated for 230V AC at 50/60Hz, compatible with global residential power standards.
Easy Installation: Complies with standard 35mm DIN rail mounting for quick and secure snap-on installation with lift terminals for firm wiring.
Applications
Residential lighting circuits, general-purpose socket outlets, small appliances, and control transformers.
Key attributes
| Type | MCB |
| BCD Curve | B, C, D |
| Rated Frequency (Hz) | 50hz/60hz |
| Material | Copper |
| Application | Circuit-Breaking |
| Model Number | WNB1-63 Series |
| Rated Voltage | 220V/230V, 400 V |
| Breaking Capacity | 6 kA |
| Mounting Type | Rail Mounting |
| Protection | Li |
| Place of Origin | Zhejiang, China |
| Brand Name | Westhomes |
| Standard | IEC/EN 60898-1 |
| Protection | Overcurrent and short circuit |
| Type of trip | Thermo-magnetic |

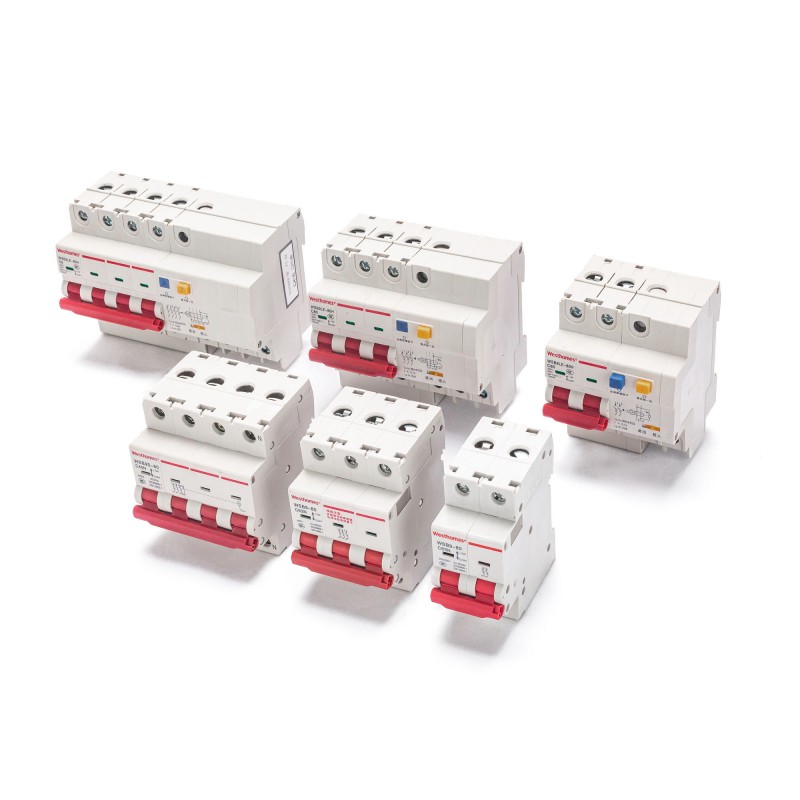

| No.of poles | 1P,1P+N,2P,3P,3P+N,4P |
| Rated currents(In) | 1,2,3,4,5,6,8,10,16,20,25,32,40,50,63A |
| Rated voltage(Ue) | 240/415V~ |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 3KA,4.5KA,6KA. |
| Rated impulse withstandard voltage(1,5/50)Uimp | 4,000V |
| Dielectric test voltage at Ind.Freq.for 1 min | 2kV |
| Thermal release characteristic | (1.13-1.45)x In |
| Magnetic release characteristic | B:(3-5)x In,C:(5-10)x In,D:(10-20)x In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -5℃ to+40℃,Max.95%humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Installation | Mounting on 35mm DIN rail |
| Connection | From top and bottom |
