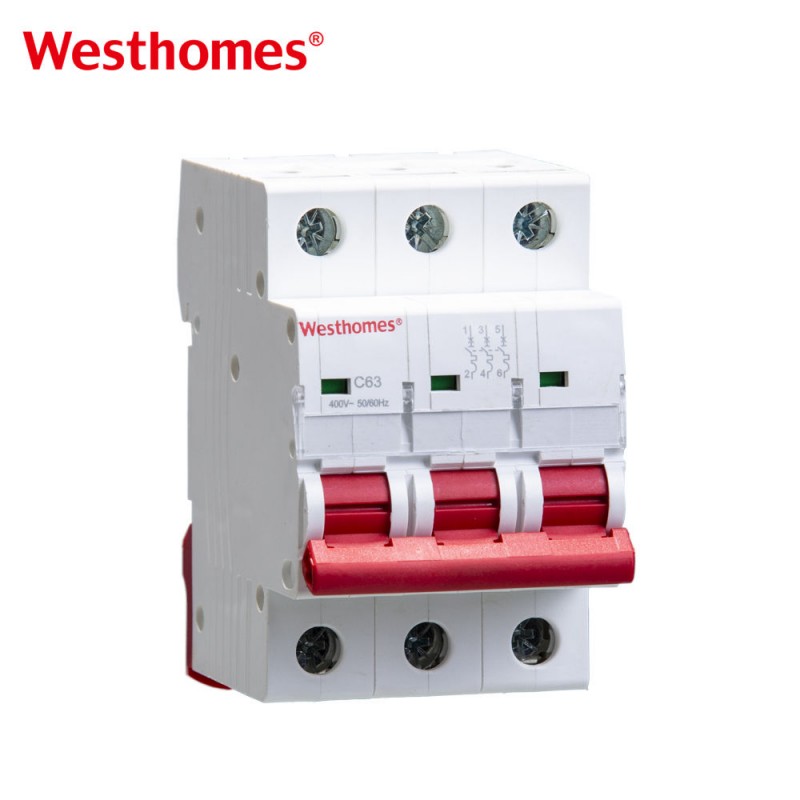

WNB1-63 3P MCB 6kA Three Pole Circuit Breaker
Get the Westhomes WNB1-63 3P MCB. 415V three-phase protection with 6kA breaking capacity. Perfect for motors and pumps. B/C/D curves. DIN rail.
Designed for three-phase systems, the Westhomes WNB1-63 3P MCB delivers reliable protection for motors, pumps, and small machinery. This triple-pole breaker simultaneously monitors and protects all three phases (L1, L2, L3) against the damaging effects of overloads and short circuits.
Key Features:
Three-Phase Control: Switches and protects all three live conductors, ensuring balanced protection across the entire system .
6kA Breaking Capacity: Provides ample short-circuit protection for commercial environments, safely quenching electrical arcs up to 6kA.
Application-Specific Curves:
- C Curve: Ideal for general three-phase loads like distribution sub-panels.
- D Curve: Specifically designed to handle high inrush currents from small three-phase motors, transformers, and inductive loads.

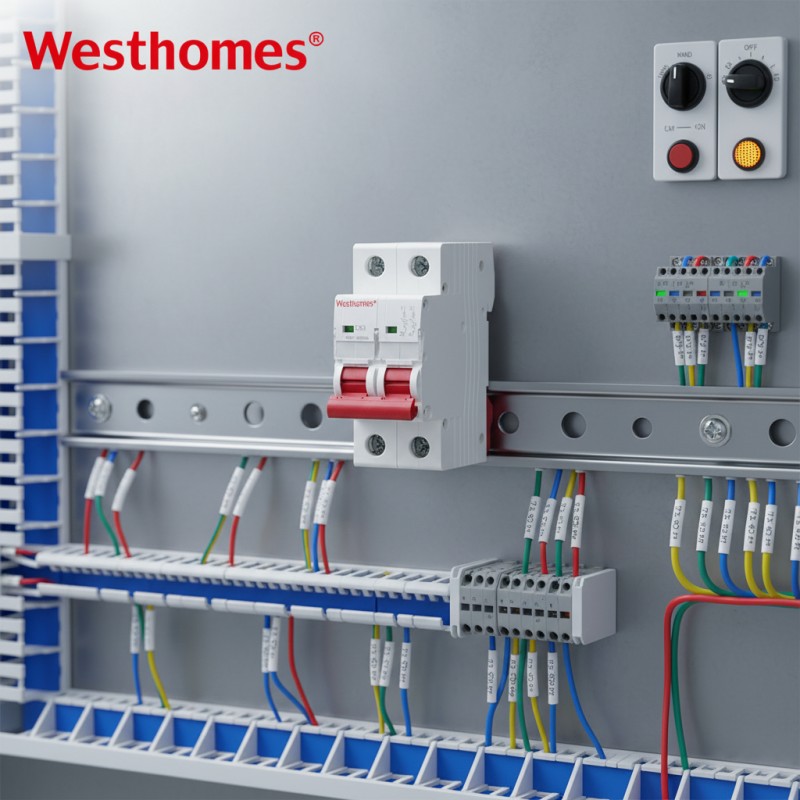

Standard Integration: 18mm per pole width, compatible with all standard 35mm DIN rail enclosures.
Rated Voltage: Optimized for 415V AC 3-phase systems at 50/60Hz.
Applications
Three-phase lighting circuits, small water pumps, conveyor systems, compressors, and HVAC equipment.
Key attributes
| Type | MCB |
| BCD Curve | B, C, D |
| Rated Frequency (Hz) | 50hz/60hz |
| Material | Copper |
| Application | Circuit-Breaking |
| Model Number | WNB1-63 Series |
| Rated Voltage | 220V/230V, 400 V |
| Breaking Capacity | 6 kA |
| Mounting Type | Rail Mounting |
| Protection | Li |
| Place of Origin | Zhejiang, China |
| Brand Name | Westhomes |
| Standard | IEC/EN 60898-1 |
| Protection | Overcurrent and short circuit |
| Type of trip | Thermo-magnetic |

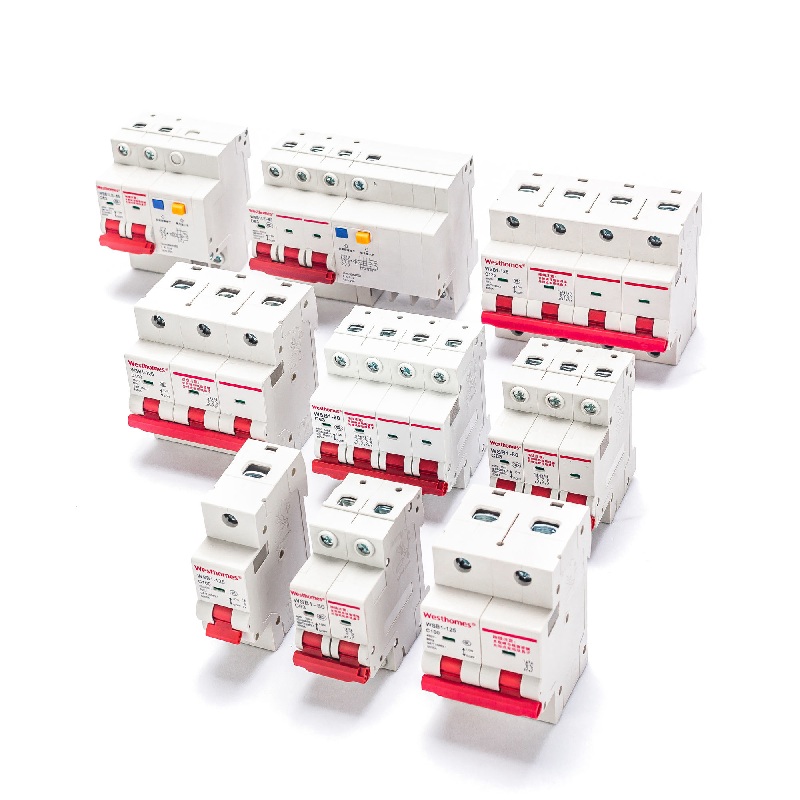

| No.of poles | 1P,1P+N,2P,3P,3P+N,4P |
| Rated currents(In) | 1,2,3,4,5,6,8,10,16,20,25,32,40,50,63A |
| Rated voltage(Ue) | 240/415V~ |
| Rated frequency | 50/60Hz |
| Rated breaking capacity | 3KA,4.5KA,6KA. |
| Rated impulse withstandard voltage(1,5/50)Uimp | 4,000V |
| Dielectric test voltage at Ind.Freq.for 1 min | 2kV |
| Thermal release characteristic | (1.13-1.45)x In |
| Magnetic release characteristic | B:(3-5)x In,C:(5-10)x In,D:(10-20)x In |
| Electrical life | 4,000 Cycles |
| Mechanical life | 10,000 Cycles |
| Contact position indicator | Yes |
| Protection degree | IP20 |
| Ambient temperature | -5℃ to+40℃,Max.95%humidity |
| Terminal connection type | Cable/Pin-type busbar |
| Installation | Mounting on 35mm DIN rail |
| Connection | From top and bottom |
Packaging and delivery
| Selling Units | Single item |
Lead time
| Quantity (pieces) | 1 – 1,000 | > 1,000 |
| Lead time (days) | 15 | To be negotiated |
