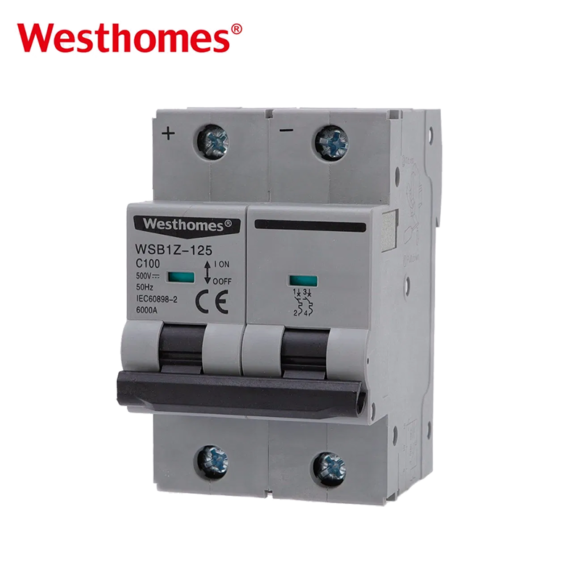

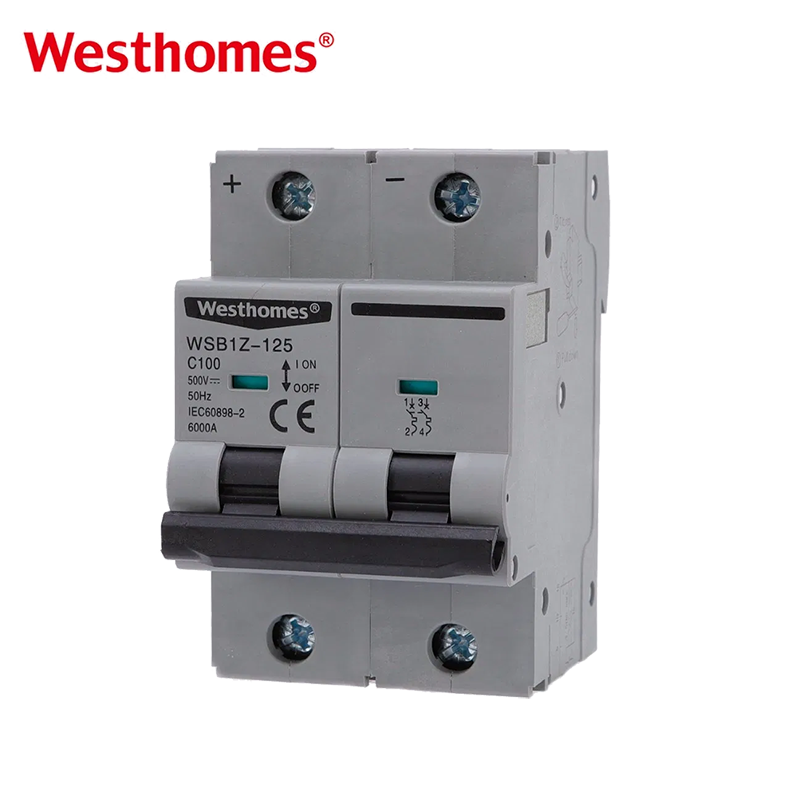

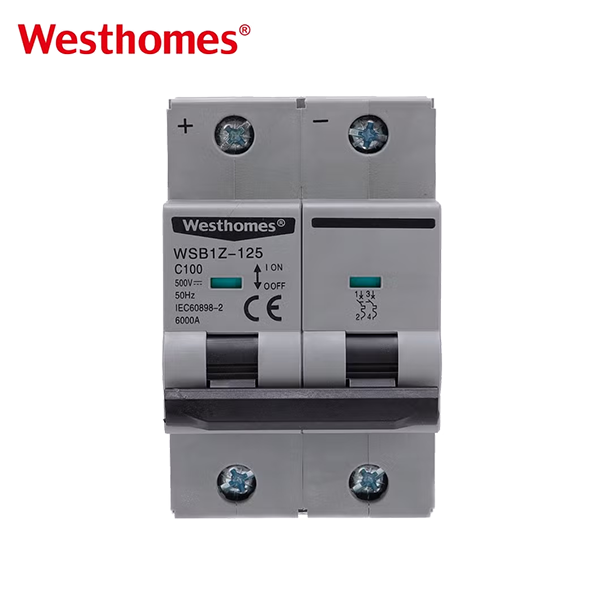

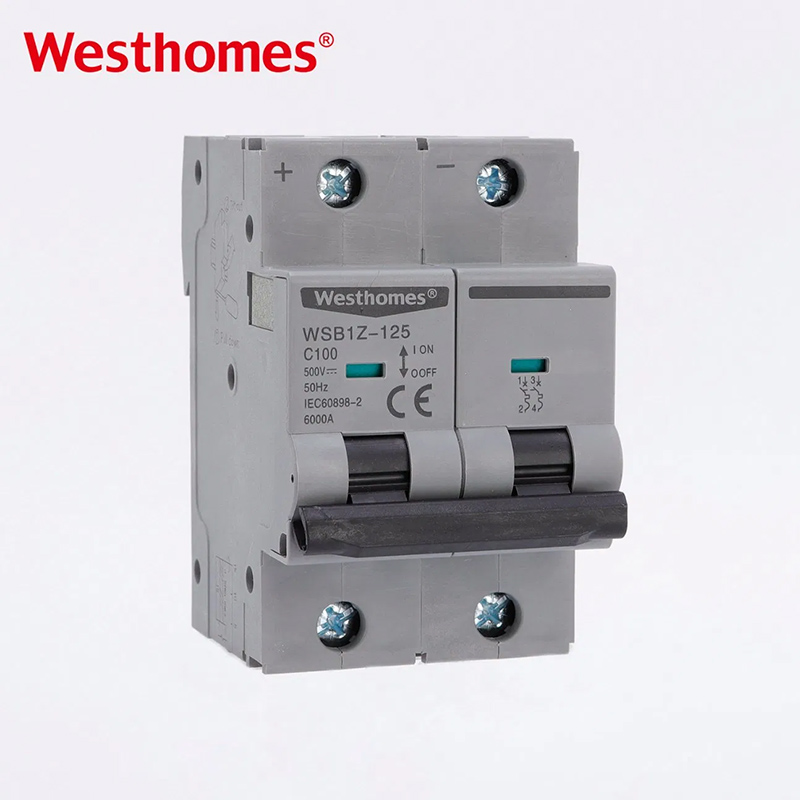

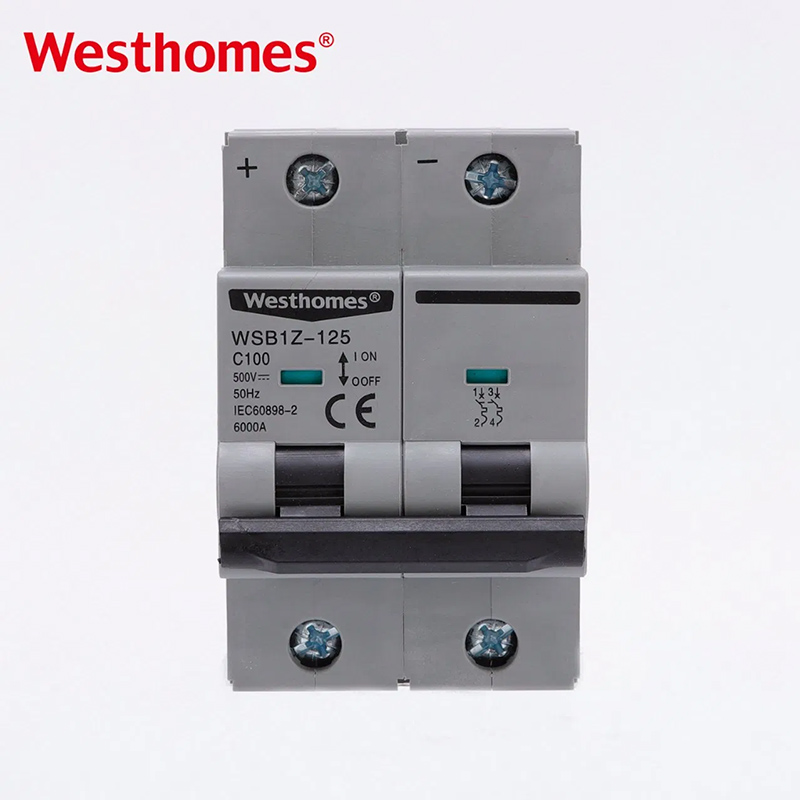

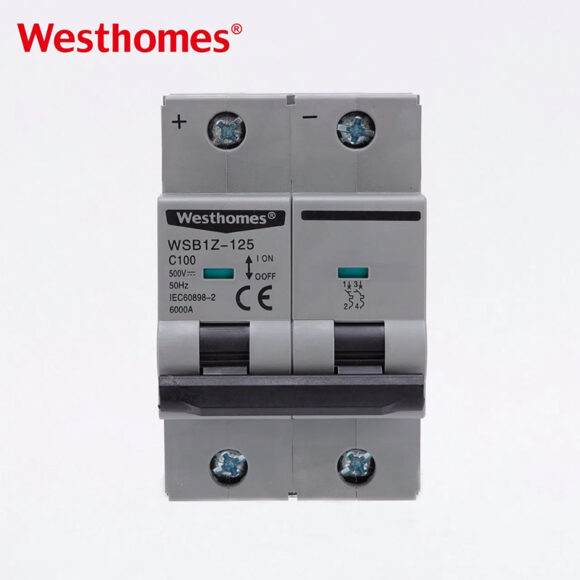

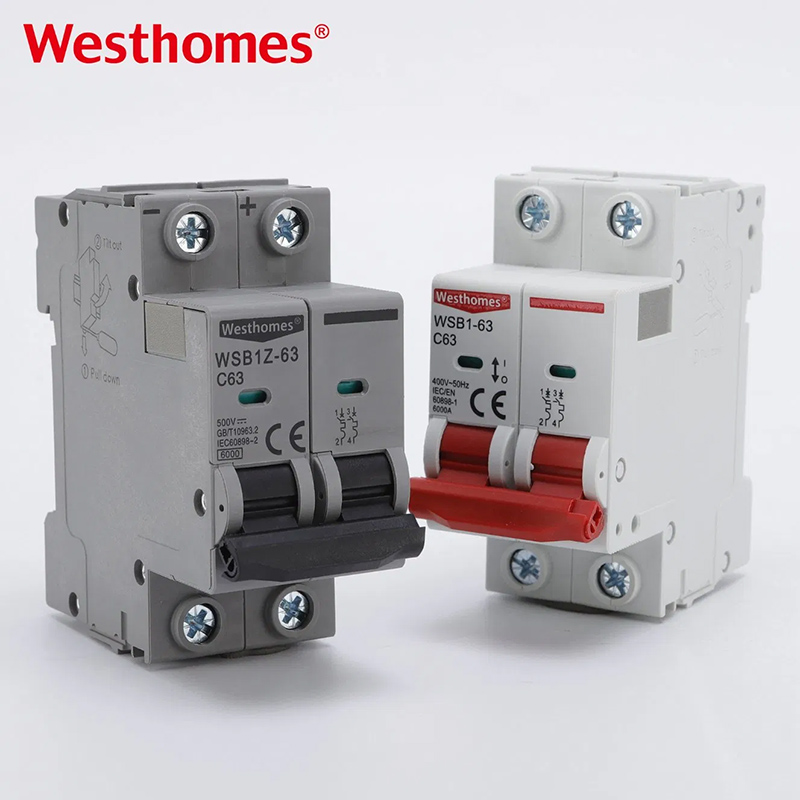

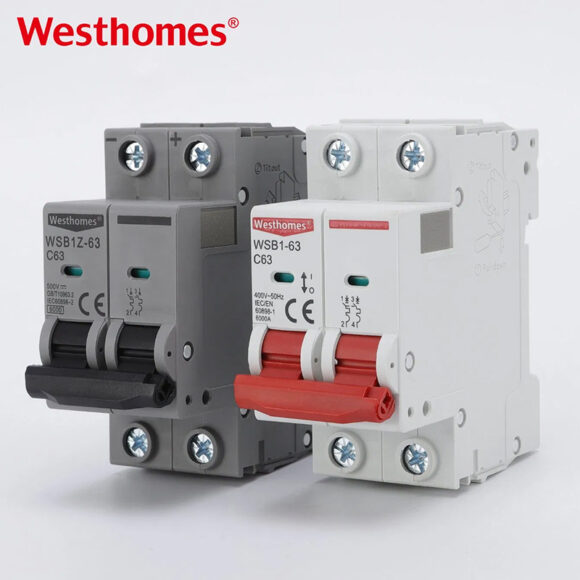

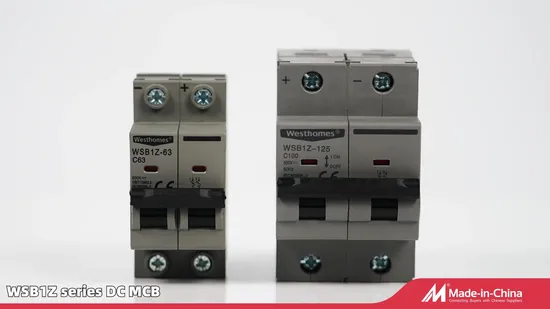

Westhomes Solar WSB1Z-125 Normal Type Circuit Breaker

The WSB1Z-125 is a normal-type DC miniature circuit breaker with a rated current near 125 A, built for higher-current DC photovoltaic circuits such as large strings, combiner outputs, or battery-storage DC feeders. It provides overload and short-circuit protection plus a manual isolation function on the DC side.

It means the breaker can continuously carry up to 125 A at its rated ambient temperature without tripping. For PV use, select it when the string/combiner operating current (typically 1.25 × Isc) approaches this level; at 125 A it is intended for larger arrays or multiple combined strings rather than a single small residential string.

At higher DC currents the arc energy is much greater and harder to extinguish. The WSB1Z-125 uses an enlarged DC arc chute with magnetic blowout that drives the arc into cooling plates, splitting it and forcing rapid extinction. Without this, contacts would erode quickly and the breaker could fail to interrupt the fault.

Yes, its 125 A class suits DC distribution between a PV array, battery bank, and inverter in an off-grid or hybrid system. Note that for bidirectional battery current you should confirm the breaker is non-polarity-sensitive, because charge and discharge current flow in opposite directions.

Most 125 A solar DC applications use a 2-pole breaker that switches both the positive (+) and negative (-) conductors together, ensuring the PV source is fully isolated from ground potential for safe servicing. A single pole only breaks one conductor and leaves the other energized.

As a normal-type solar breaker it is rated for DC voltages up to 1000 V (or higher depending on the pole configuration), and its short-circuit breaking capacity (e.g., 6–10 kA class) must exceed the maximum fault current the string and inverter can deliver. Verify both the rated operational voltage (Ue) and ultimate breaking capacity (Icu) on the nameplate.

The cables feeding the breaker must have an ampacity at least equal to the breaker rating, derated for temperature and conduit fill, and protected by the breaker from overload. Follow NEC/IEC overcurrent-device sizing so the conductor is protected without the breaker tripping on normal irradiance current.

First check that the load current is within 125 A and that no partial shading, defective panel, or grounding fault is drawing excess current. Then verify terminals are torqued correctly and that the breaker isn't tripping on inverter inrush; if it still trips on a healthy system, the unit may have suffered internal contact damage from a prior fault and should be replaced.

Yes. At 125 A it is commonly used in commercial and small utility-scale DC combiner circuits where several strings are paralleled before the inverter. It supports the string-level protection and isolation required by IEC 60364-7-12 / IEC 60947-2 standards for larger installations.

Mount it on a 35 mm DIN rail in a sealed DC-rated enclosure, observe polarity, and torque lugs to spec. Before servicing, open the breaker and use a proven DC voltage tester — PV strings stay live as long as the panels are illuminated, so never assume the circuit is dead just because the breaker is off.
