What Are Earth Leakage Circuit Breakers?
Feb 11, 2026
An Earth Leakage Circuit Breaker (ELCB), also referred to as a Residual Current Device (RCD), is a critical safety component in electrical systems. Its primary function is to safeguard individuals and property from electric shock and potential fire hazards caused by electrical faults.
The device works by continuously comparing the current flowing into a circuit with the current returning from it. Any imbalance, indicating a leakage of current to earth (ground), triggers the ELCB to promptly disconnect the power supply.
These breakers are indispensable across residential, commercial, and industrial applications for mitigating the dangers of earth faults. They provide particularly vital protection in areas with moisture or where electrical equipment is used outdoors, as these conditions increase the risk of current leakage.
By rapidly cutting off electricity upon detecting a fault, Earth Leakage Circuit Breakers serve as a fundamental defence, enhancing overall electrical safety and preventing serious accidents.

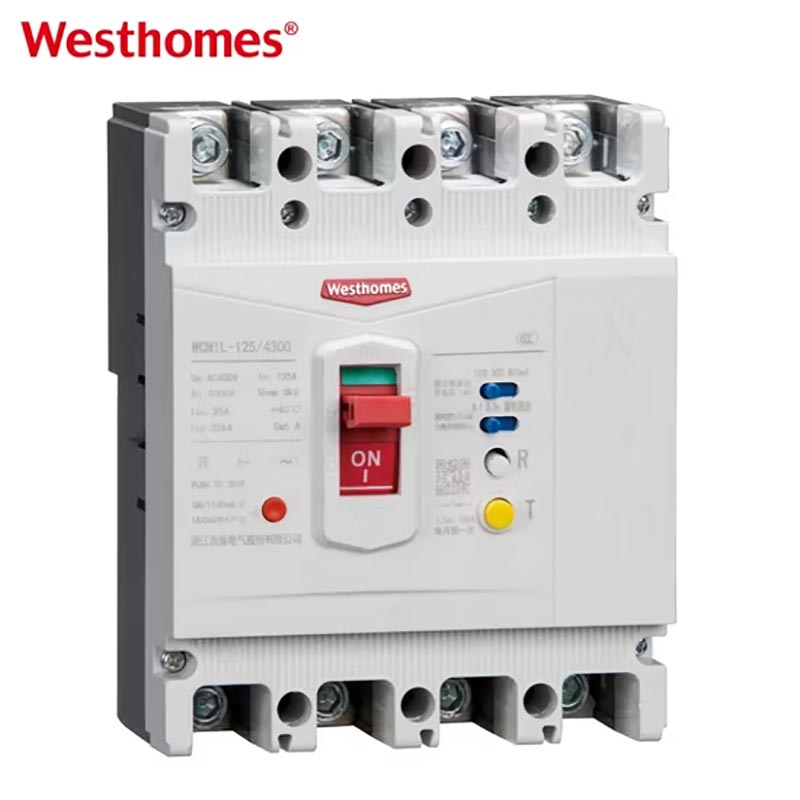

What can ELCBs do for circuit protection?
Earth Leakage Circuit Breakers (ELCBs) are designed to identify small, unintended voltages present on the metal casings of electrical devices and to automatically cut off the circuit upon detecting a hazardous level. This mechanism safeguards against earth leakage or ground faults—situations where an accidental electrical pathway forms between a live wire and the ground.
Different types for ELCBs:
Voltage-Operated ELCB(VO-ELCBs):
This older design functions by monitoring the voltage on the earth wire in relation to the local ground. It trips the circuit when this voltage surpasses a predetermined safety threshold. Due to certain limitations, this type has become less prevalent and has been largely superseded by more advanced current-operated devices.
Current-Operated ELCB (CO-ELCBs):
Commonly known as a Residual Current Circuit Breaker (RCCB), this modern type operates by detecting any imbalance between the current flowing in the live and neutral conductors. It is considered more effective and reliable, as its operation is independent of a physical earth connection and relies solely on the principle of current balance within the circuit itself.
Advantages of Voltage-Operated ELCBs
- Helps prevent electric shocks by detecting voltage on the earth wire.
- Less sensitive, reducing the likelihood of nuisance tripping.
- Generally more affordable compared to current-operated ELCBs.
Disadvantages of Voltage-Operated ELCBs
- Does not protect against direct contact with a live phase conductor.
- Only trips when fault current flows through a designated earth conductor.
- Requires a separate, dedicated connection between the equipment body and earth.
- Lower sensitivity may allow minor leakage currents to go undetected.
Advantages of Current-Operated ELCBs (RCCBs)
- Disconnects power to the entire circuit upon detecting leakage from any point.
- Highly reliable for protection against electric shock hazards.
- High sensitivity allows detection of even very small leakage currents.
- Operates via a continuous monitoring system, ensuring a rapid response when the preset threshold is exceeded.
- Does not depend on a separate earth connection for its core protective function.
Disadvantages of Current-Operated ELCBs (RCCBs)
- High sensitivity can lead to unnecessary tripping when used with older appliances that have inherent, minor leakage.
- Typically, more expensive than voltage-operated models.
- Provides no protection against circuit overloads.
- Offers no protection against short-circuit currents.
Working Principle of Earth Leakage Circuit Breaker(ELCB)
The working principle of an ELCB is based on detecting ground faults or leakage currents and rapidly interrupting the circuit’s power supply to prevent harm.
Here’s how an ELC works
An Earth Leakage Circuit Breaker (ELCB) continuously measures the current flowing through both the live (phase) and neutral conductors of an electrical circuit. Under normal, fault-free conditions, the current entering and returning through these wires is equal, indicating no leakage to earth.
If a ground fault occurs—for instance, due to damaged insulation or accidental contact with a live component—a leakage current flows to earth, creating an imbalance between the live and neutral currents. This difference is detected by a built-in sensing device, such as a toroidal coil.
The ELCB’s internal mechanism performs a continuous differential comparison of these currents. Should the detected imbalance exceed a preset safety threshold—typically a very low value in the range of a few milliamperes—it confirms the presence of a hazardous fault condition.
Upon detection, the ELCB triggers an internal mechanism to trip a switch or breaker with high speed. This rapid disconnection interrupts the electrical supply almost instantaneously, thereby mitigating the risks of electric shock and preventing potential fire hazards.
Conclusion
An Earth Leakage Circuit Breaker (ELCB) is a vital safety component that provides continuous protection by monitoring circuits for leakage currents or ground faults and instantly cutting off power to prevent electric shock and fire.
