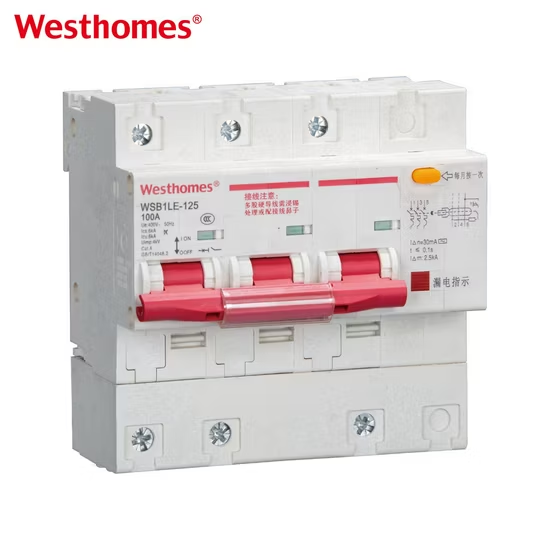

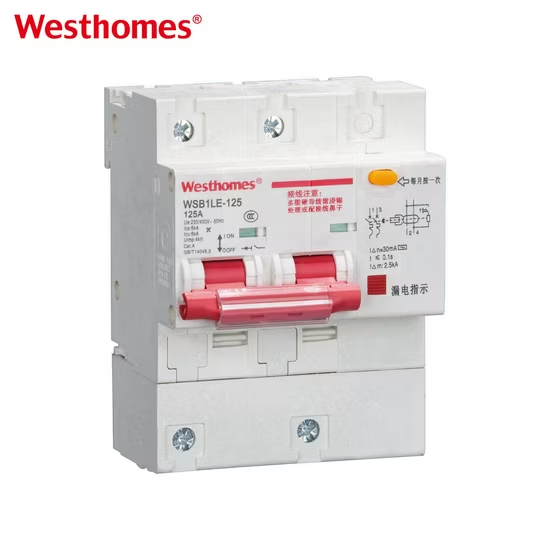

WSB1LE-125 3P+N C63 Earth Leakage Circuit Breaker

An earth leakage circuit breaker — more precisely called an RCBO when overcurrent protection is built in — automatically disconnects a circuit when current leaks to earth or when overload/short circuit occurs. The WSB1LE-125 3P+N C63 is a three-phase plus neutral RCBO rated at 63 A with a C tripping curve, used for three-phase loads such as machine tools, pumps, compressors, and distribution sub-boards.

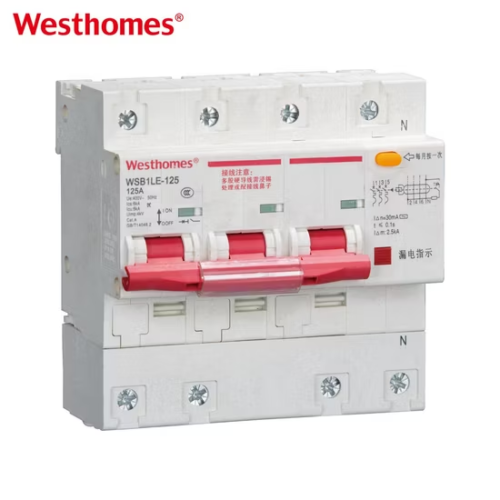

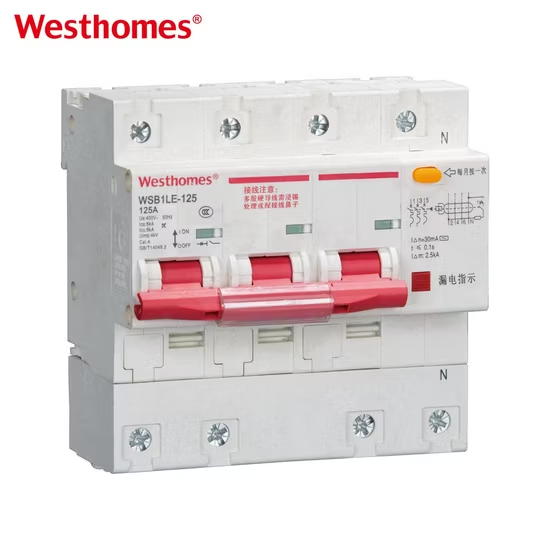

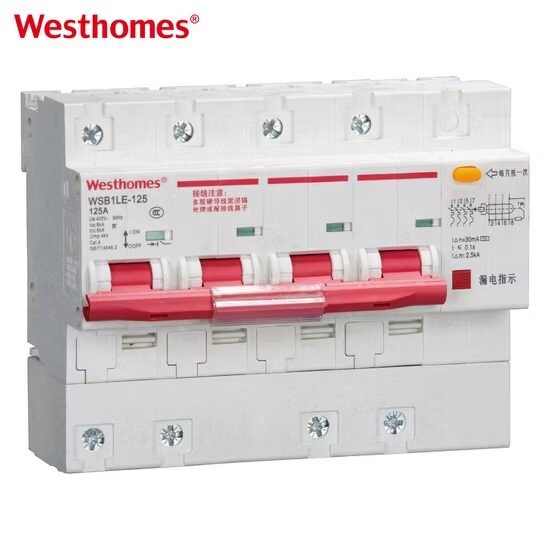

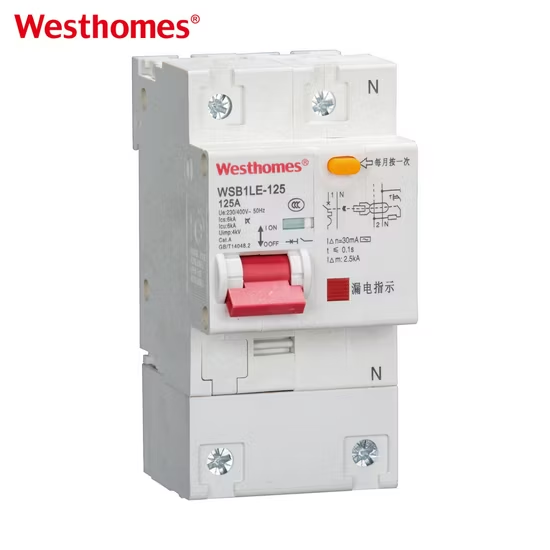

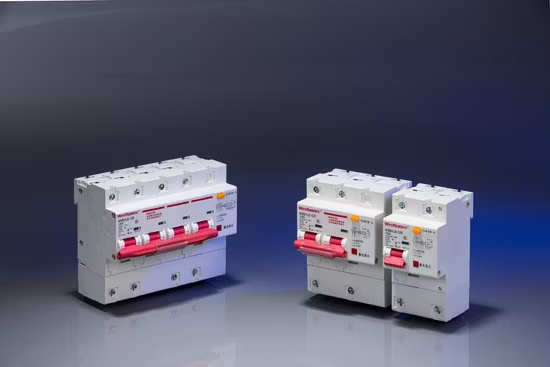

A 3P+N RCBO switches all three phase poles (L1, L2, L3) but the neutral pole is not necessarily mechanically switched together with the phases — in many designs the neutral is continuously connected while the phases are switched. A true 4P device switches all four poles simultaneously. 3P+N is widely used in industrial distribution where neutral continuity must be maintained for control circuits even when the phases are isolated.

C63 means the rated current In is 63 A and the instantaneous short-circuit trip curve is Type C. Type C means the magnetic trip operates at 5–10 times In (i.e., 315–630 A), which is suitable for general commercial and industrial loads with moderate inrush currents such as motors, transformers, and mixed resistive/inductive loads. The "125" in the model number is the frame rating, so this trip unit can be upgraded to higher ratings within the same frame if needed.

A summation toroidal current transformer surrounds L1, L2, L3, and N. Under normal conditions the vector sum of all four currents is zero. Any earth fault, insulation leakage, or accidental human contact creates a non-zero residual current, which induces a voltage in the toroid secondary. When this residual current exceeds the rated sensitivity (typically 30 mA), an electronic or electromagnetic relay triggers the mechanism and opens all poles within milliseconds.

(1) Residual-current protection trips on earth leakage above the sensitivity setting; (2) overload protection uses a thermal bimetal that bends slowly with sustained overcurrent and trips after a time delay; (3) short-circuit protection uses an electromagnetic solenoid that trips instantaneously (within milliseconds) when the current exceeds the C-curve threshold.

The WSB1LE-125 is commonly supplied with a 30 mA residual-current sensitivity, which is the standard for personnel (direct-contact) protection. Use 30 mA circuits for sockets, hand-held tools, bathrooms, outdoor equipment, and anywhere a person may touch live parts. Higher sensitivities such as 100 mA or 300 mA are used upstream for fire protection or to prevent nuisance tripping on long cable runs.

The unit snaps onto a standard 35 mm DIN rail inside a distribution board. L1, L2, L3, and N are connected to their corresponding terminals; the load side is then connected to downstream cables. The device must be mounted in vertical orientation, with adequate clearances above and below, and the upstream short-circuit breaking capacity must be lower than the rated breaking capacity (Icn/Ics) of the RCBO.

The test button simulates a residual current fault through an internal test resistor to confirm the trip mechanism is still functional. It should be pressed monthly; a healthy device must trip immediately. If it fails to trip, the RCBO is unsafe and must be replaced. Never use the test button as a normal operating switch.

Common causes include leakage from VSDs/AFDs and their EMC filters, long cable runs with high distributed capacitance, damp insulation, transient surges from switching, and multiple loads on one circuit. Remedies include using Type A or Type F RCBOs (which handle pulsating DC residual currents), distributing loads across more RCBOs, increasing sensitivity to 100 mA where personnel risk is absent, or adding surge protection upstream.

The WSB1LE-125 is built to IEC 61009-1 and CE-marked. Typical applications include three-phase industrial machine tools, pumping stations, compressor panels, commercial sub-distribution boards, agricultural machinery, and light commercial installations where 63 A three-phase power, earth-leakage protection, and overcurrent protection are required in a single DIN-rail module.
