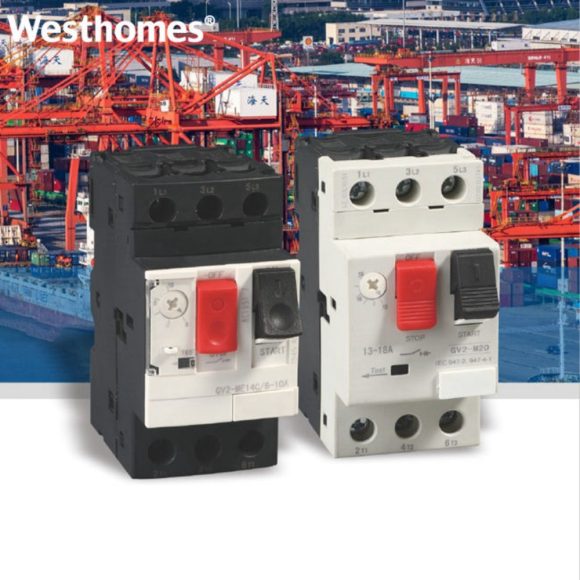

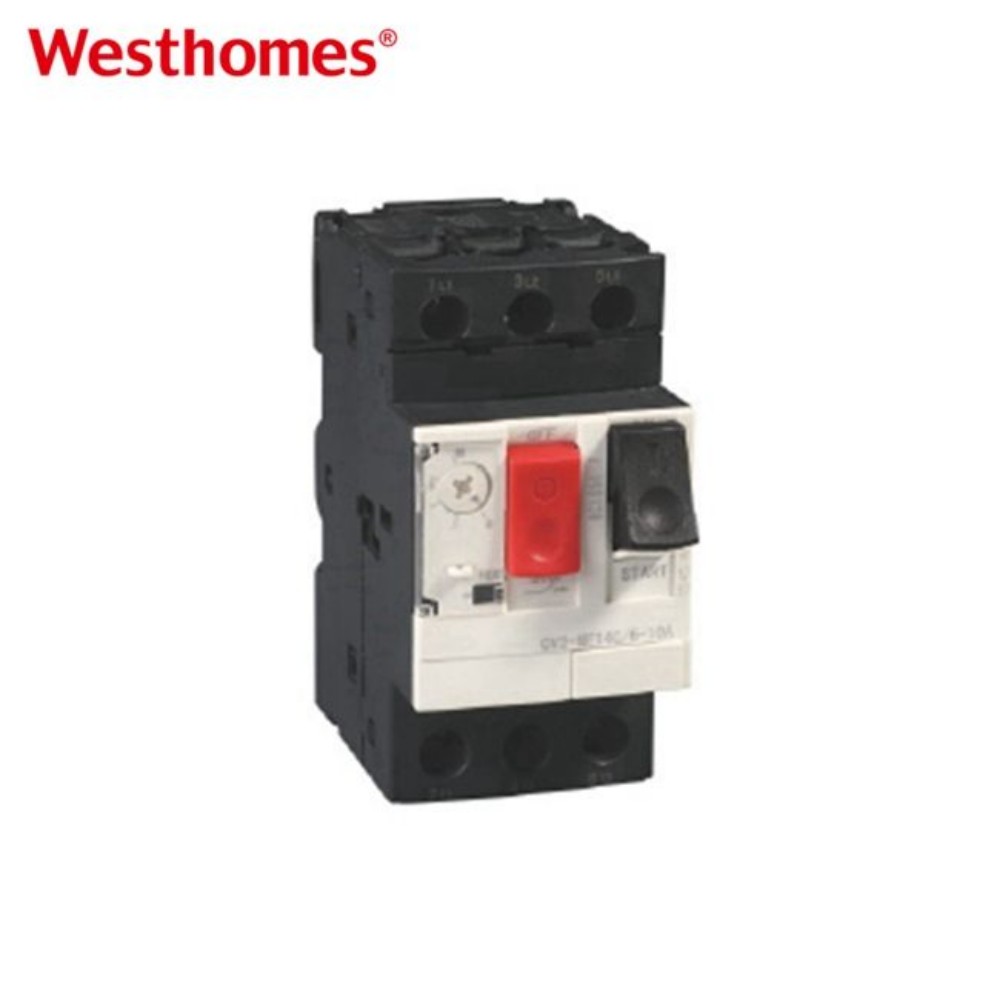

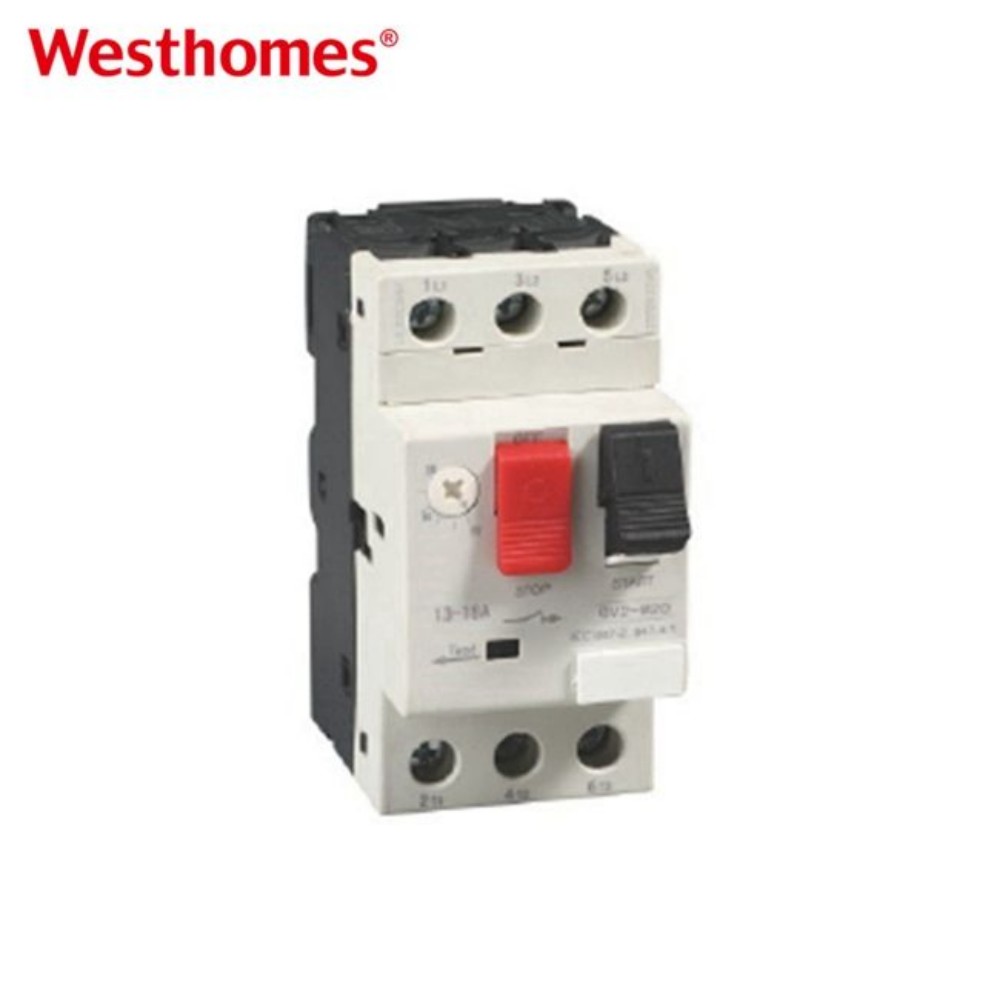

Westhomes GV2PM Mini Copper MPCB
Westhomes GV2PM mini copper MPCB with 100kA breaking capacity. Thermal-magnetic protection, 0.1A–32A range, 3-pole design, screw or rail mount, and reliable long-distance switching.
Westhomes GV2PM Mini Copper Motor Protection Circuit Breaker is a high-performance 3-pole thermal magnetic MPCB with 100kA breaking capacity, engineered for industrial motor protection. Featuring a 0.1A-32A wide current range, solid copper construction and versatile mounting, it delivers stable 3-phase power distribution, reliable long-distance switching and long-lasting performance with minimal maintenance for diverse industrial scenarios.
Key Features：
Low Maintenance Design: Longevity-focused build reduces upkeep frequency and operational costs
Premium Copper Construction: Mini copper core design for excellent conductivity and durable industrial performance
Flexible Installation: Dual mounting options for screw or rail setup, fitting various industrial cabinet layouts
3-Pole Thermal Magnetic Design: Stable 3-phase power distribution, effectively preventing motor faults from current imbalance
Applications:
Industrial electrical distribution cabinets
Industrial 3-phase AC motor systems
Workshop power control and motor safety system
TECHNICAL PARAMETERS
GV2-M20 MOTOR WITH THERMAL MAGNETIC PROTECTIVE AIR SWITCH
| PUSH BUTTON CONTROL OR TRANSFER SWITCH CONTROL | ||||||||
| 50/60Hz,AC-3 standard three-phase motor rated power |
Thermal trip setting range |
Magnetic trip current |
Ithe current with case |
Model (button control) |
Weight | |||
| 230V | 400V | 415V | 440V | |||||
| kW | kW | kW | kW | A | A | A | kG | |
| 一 | 一 | 一 | 一 | 0.1~0.16 | 1.5 | 0.16 | GV2-M2001 | 0.260 |
| 一 | 一 | 一 | 一 | 0.16~0.25 | 2.4 | 0.25 | GV2-M2002 | 0.260 |
| 一 | 一 | 一 | 一 | 0.25~0.40 | 5 | 0.40 | GV2-M2003 | 0.260 |
| 一 | 一 | 一 | 一 | 0.40~0.63 | 8 | 0.63 | GV2-M2004 | 0.260 |
| 一 | 一 | 一 | 0.37 | 0.63~1 | 13 | 1 | GV2-M2005 | 0.260 |
| 一 | 0.37 | 一 | 0.55 | 1~1.6 | 22.5 | 1.6 | GV2-M2006 | 0.260 |
| 0.37 | 0.75 | 0.75 | 1.1 | 1.6~2.5 | 33.5 | 2.5 | GV2-M2007 | 0.260 |
| 0.75 | 1.5 | 1.5 | 1.5 | 2.5~4 | 51 | 4 | GV2-M2008 | 0.260 |
| 1.1 | 2.2 | 2.2 | 3 | 4~6.3 | 78 | 6.3 | GV2-M2010 | 0.260 |
| 2.2 | 4 | 4 | 4 | 6~10 | 138 | 9 | GV2-M2014 | 0.260 |
| 3 | 5.5 | 5.5 | 7.5 | 9~14 | 170 | 13 | GV2-M2016 | 0.260 |
| 4 | 7.5 | 9 | 9 | 13~18 | 223 | 17 | GV2-M2020 | 0.260 |
| 5.5 | 11 | 11 | 11 | 17~23 | 327 | 21 | GV2-M2021 | 0.260 |
| 5.5 | 11 | 11 | 11 | 20~25 | 327 | 23 | GV2-M2022 | 0.260 |
| 7.5 | 15 | 15 | 15 | 24~32 | 416 | 24 | GV2-M2032 | 0.260 |
Note: GV2-M20 is the same as GV2-ME14
GV2-RS32 MOTOR WITH THERMAL MAGNETIC PROTECTIVE AIR SWITCH
| TRANSFER SWITCH CONTROL | |||||||
| 50/60Hz,AC-3 Standard rated power of three-phase motor |
Thermal trip setting range |
Magnetic trip current(ld±20%) |
Model (transfer switch control) |
Weight | |||
| 230V | 400V | 415V | 440V | ||||
| kW | kW | kW | kW | A | A | A | kG |
| 一 | 一 | 一 | 一 | 0.1~0.16 | 1.5 | GV2-RS3201 | 0.260 |
| 一 | 一 | 一 | 一 | 0.16~0.25 | 2.4 | GV2-RS3202 | 0.260 |
| 一 | 一 | 一 | 一 | 0.25~0.40 | 5 | GV2-RS3203 | 0.260 |
| 一 | 一 | 一 | 一 | 0.40~0.63 | 8 | GV2-RS3204 | 0.260 |
| 一 | 一 | 一 | 0.37 | 0.63~1 | 13 | GV2-RS3205 | 0.260 |
| 一 | 0.37 | 一 | 0.55 | 1~1.6 | 22.5 | GV2-RS3206 | 0.260 |
| 0.37 | 0.75 | 0.75 | 1.1 | 1.6~2.5 | 33.5 | GV2-RS3207 | 0.260 |
| 0.75 | 1.5 | 1.5 | 1.5 | 2.5~4 | 51 | GV2-RS3208 | 0.260 |
| 1.1 | 2.2 | 2.2 | 3 | 4~6.3 | 78 | GV2-RS3210 | 0.260 |
| 2.2 | 4 | 4 | 4 | 6~10 | 138 | GV2-RS3214 | 0.260 |
| 3 | 5.5 | 5.5 | 7.5 | 9~10 | 170 | GV2-RS3216 | 0.260 |
| 4 | 7.5 | 9 | 9 | 13~18 | 223 | GV2-RS3220 | 0.260 |
| 5.5 | 11 | 11 | 11 | 17~23 | 327 | GV2-RS3221 | 0.260 |
| 5.5 | 11 | 11 | 11 | 20~25 | 327 | GV2-RS3222 | 0.260 |
| 7.5 | 15 | 15 | 15 | 24~32 | 416 | GV2-RS3232 | 0.260 |
GV2-LS32 MOTOR WITH THERMAL MAGNETIC PROTECTIVE AIR SWITCH
| TRANSFER SWITCH CONTROL | ||||||||
| 50/60Hz,AC-3 Standard rated power of three-phase motor |
Protection rating |
Magnetic trip current (ld±20%) |
With JRS4-d overload relay |
Model (button control) |
Weight | |||
| 230V | 400V | 415V | 440V | |||||
| kW | kW | kW | kW | A | A | kG | ||
| 一 | 一 | 一 | 一 | 0.4 | 5 | JRS4-1303d | GV2-LS3203 | 0.330 |
| 一 | 一 | 一 | 一 | 0.63 | 8 | JRS4-1304d | GV2-LS3204 | 0.330 |
| 一 | 一 | 一 | 0.37 | 1 | 13 | JRS4-1305d | GV2-LS3205 | 0.330 |
| 一 | 0.37 | 一 | 0.55 | 1.6 | 22.5 | JRS4-1306d | GV2-LS3206 | 0.330 |
| 0.37 | 0.75 | 0.75 | 1.1 | 2.5 | 33.5 | JRS4-1307d | GV2-LS3207 | 0.330 |
| 0.75 | 1.5 | 1.5 | 1.5 | 4 | 51 | JRS4-1308d | GV2-LS3208 | 0.330 |
| 1.1 | 2.2 | 2.2 | 3 | 6.3 | 78 | JRS4-1310d | GV2-LS3210 | 0.330 |
| 2.2 | 4 | 4 | 4 | 10 | 138 | JRS4-1314d | GV2-LS3214 | 0.330 |
| 3 | 5.5 | 5.5 | 7.5 | 14 | 170 | JRS4-1316d | GV2-LS3216 | 0.330 |
| 4 | 7.5 | 9 | 9 | 18 | 223 | JRS4-1321d | GV2-LS3220 | 0.330 |
| 5.5 | 11 | 11 | 11 | 25 | 327 | JRS4-1322d | GV2-LS3222 | 0.330 |
| 7.5 | 15 | 15 | 15 | 32 | 6 | JRS4-2355d | DZS32-LS3232 | 0.330 |
GV3-ME50C MOTOR WITH THERMAL MAGNETIC PROTECTIVE AIR SWITCH
| BUTTON CONTROL | |||||||
| 50/60Hz,AC-3 Standard rated power of three-phase motor |
Thermal trip setting range |
Magnetic trip current (ld±20%) |
Model (button control) |
Weight | |||
| 230V | 400V | 415V | 440V | ||||
| kW | kW | kW | kW | A | A | kG | |
| 一 | 0.37 | 一 | 0.55 | 1~1.6 | 19.2 | GV3-ME50C06 | 0.600 |
| 0.37 | 0.75 | 1.1 | 1.1 | 1.6~2.5 | 30 | GV3-ME50C07 | 0.600 |
| 0.75 | 1.5 | 1.5 | 1.5 | 2.5~4 | 48 | GV3-ME50C08 | 0.600 |
| 1.1 | 2.2 | 2.2 | 3 | 4~6 | 72 | GV3-ME50C10 | 0.600 |
| 2.2 | 4 | 4 | 4 | 6~10 | 120 | GV3-ME50C14 | 0.600 |
| 4 | 7.5 | 7.5 | 7.5 | 10~16 | 192 | GV3-ME50C20 | 0.600 |
| 5.5 | 11 | 11 | 11 | 16~25 | 300 | GV3-ME50C25 | 0.600 |
| 1 | 18.5 | 22 | 22 | 25~40 | 480 | GV3-ME50C40 | 0.700 |
| 15 | 30 | 33 | 33 | 40~63 | 756 | GV3-ME50C63 | 0.700 |
| 22 | 40 | 45 | 45 | 56~80 | 960 | GV3-ME50C80 | 0.700 |
Note: GV3-ME50C is the same as GV3-M50C

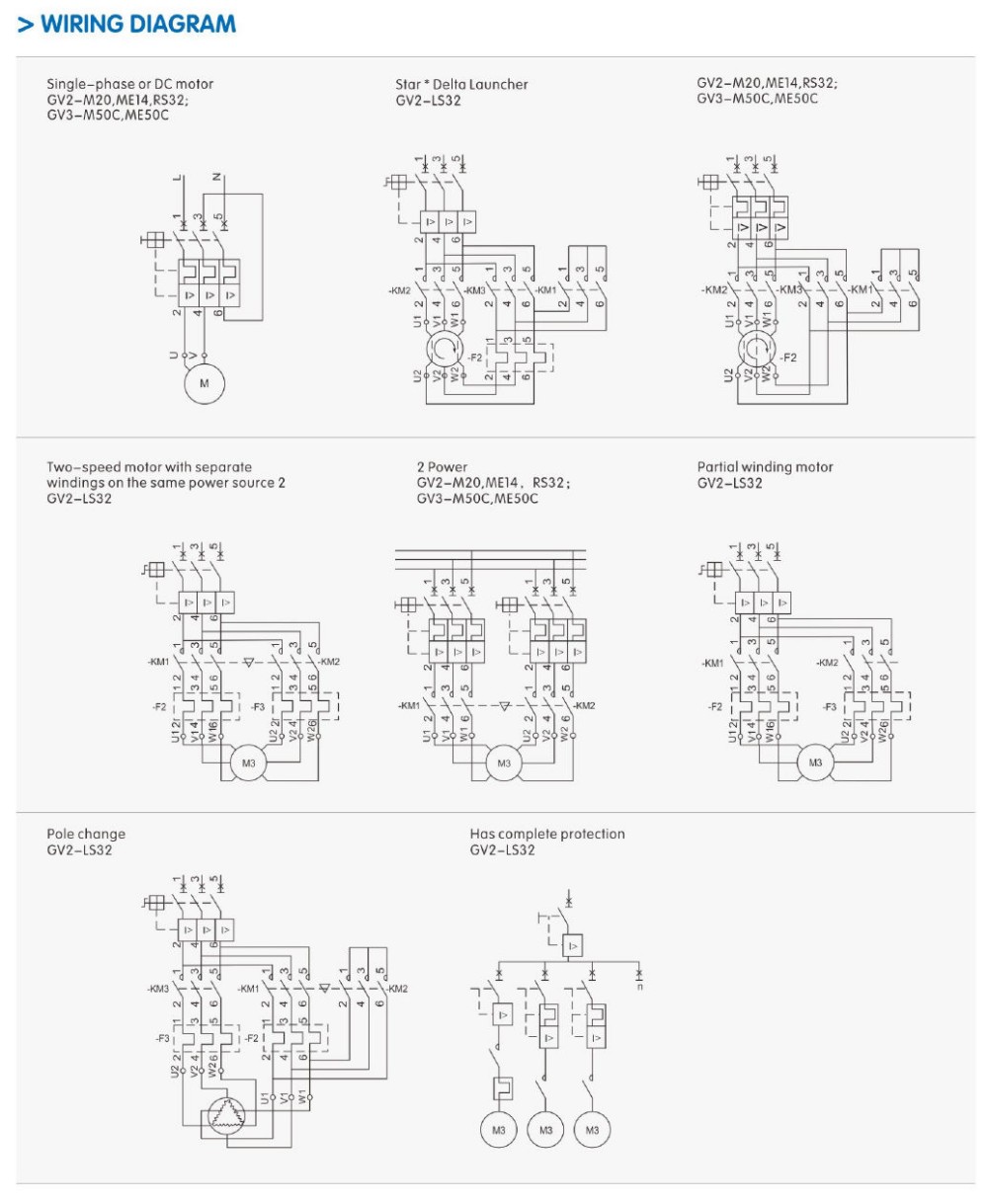

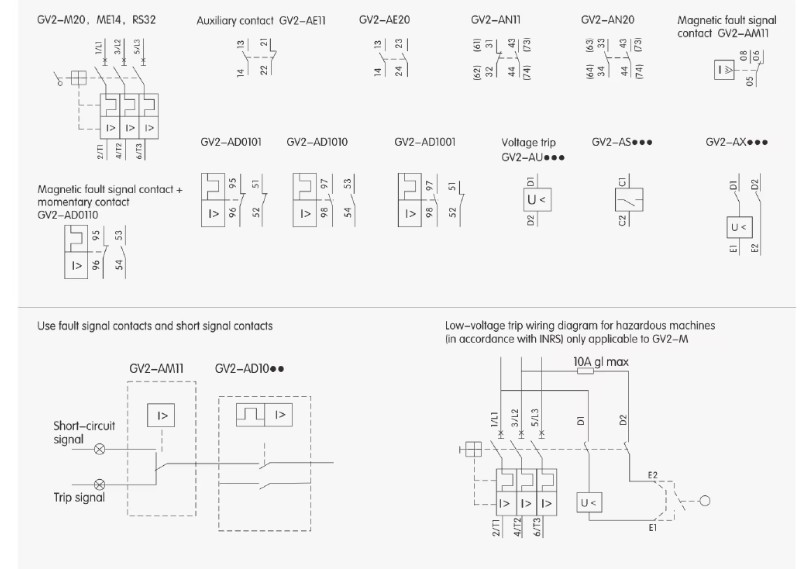

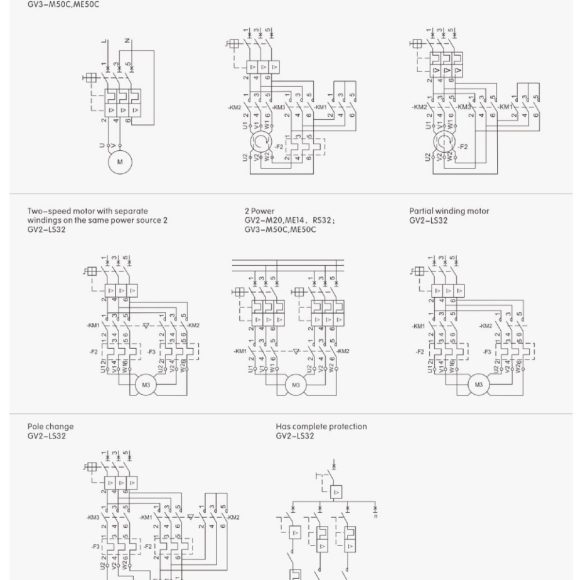

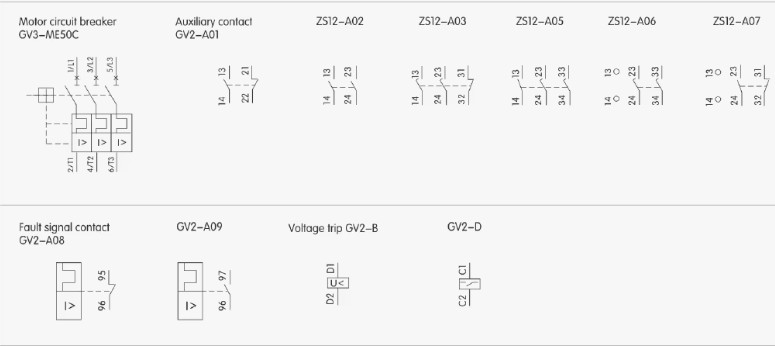

WIRING DIAGRAM
Packaging and delivery
| Selling Units | Single item |
Lead time
| Quantity (pieces) | 1 – 100 | > 100 |
| Lead time (days) | 10 | To be negotiated |
Key attributes
| Breaking Capacity | 100 kA |
| Type | Mini |
| Application | Motor Protection, Industrial |
| Material | Copper |
| Model Number | GV2PM |
| Poles Number | 3 |
| BCD Curve | C |
| Mounting type | Din Rail Mount |
| Place of Origin | Zhejiang, China |
| Brand Name | Westhomes |
155 MBFREQUENTLY ASKED QUESTION (FAQ)
What is the Westhomes GV2PM Mini Copper MPCB?
The Westhomes GV2PM Mini Copper MPCB (Motor Protection Circuit Breaker) is a compact motor protection device designed to protect low-voltage motors from overloads, short circuits, and phase failure conditions. It uses copper conductive components to provide reliable electrical performance and stable operation.
What does MPCB mean in the GV2PM Mini Copper MPCB?
MPCB stands for Motor Protection Circuit Breaker. It is a protective device specially designed for motor circuits, combining overload protection, short-circuit protection, and manual circuit switching functions in one unit.
What is the current range of the GV2PM Mini Copper MPCB?
The GV2PM Mini Copper MPCB supports an adjustable current range from 0.1A to 32A, allowing users to select suitable settings according to different motor ratings and application requirements.
What are the advantages of copper components in the GV2PM MPCB?
Copper has excellent electrical conductivity and heat dissipation performance. The use of copper conductive parts helps reduce electrical losses, improve current-carrying capability, and enhance the reliability and service life of the motor protection device.
What protection functions does the GV2PM Mini Copper MPCB provide?
The GV2PM provides thermal overload protection and magnetic short-circuit protection. Thermal protection prevents motor damage caused by continuous overcurrent, while magnetic protection quickly disconnects the circuit during short-circuit faults.
What applications are suitable for the GV2PM Mini Copper MPCB?
The GV2PM Mini Copper MPCB is suitable for industrial motor applications, including pumps, fans, compressors, machine tools, conveyor systems, and other motor-driven equipment requiring reliable protection.
What is the difference between an MPCB and an MCB?
An MPCB is specifically designed for motor protection, considering motor starting current and overload characteristics. An MCB is mainly used for general circuit protection against overloads and short circuits and is not optimized for motor applications.
Can the GV2PM Mini Copper MPCB be used with a contactor?
Yes. The GV2PM Mini Copper MPCB can be combined with a contactor to create a complete motor starter solution. This combination provides motor switching control, overload protection, and short-circuit protection for industrial automation systems.
How do I choose the correct GV2PM current setting for a motor?
The current setting should be adjusted according to the motor’s rated current shown on the nameplate. Selecting the correct setting helps provide effective overload protection while avoiding unnecessary tripping during normal motor operation.
Why choose the Westhomes GV2PM Mini Copper MPCB?
The Westhomes GV2PM Mini Copper MPCB combines compact design, copper conductive performance, adjustable thermal protection, and magnetic short-circuit protection. It provides a reliable and efficient solution for protecting industrial motors in low-voltage electrical systems.
