Brand-new original Westhomes GV2PM thermal magnetic MPCB. 3-pole motor protection circuit breaker with 0.1–32A range, robust design, easy installation and low maintenance for industrial use.
Brand-new original Westhomes GV2PM thermal magnetic MPCB. 3-pole motor protection circuit breaker with 0.1–32A range, robust design, easy installation and low maintenance for industrial use.

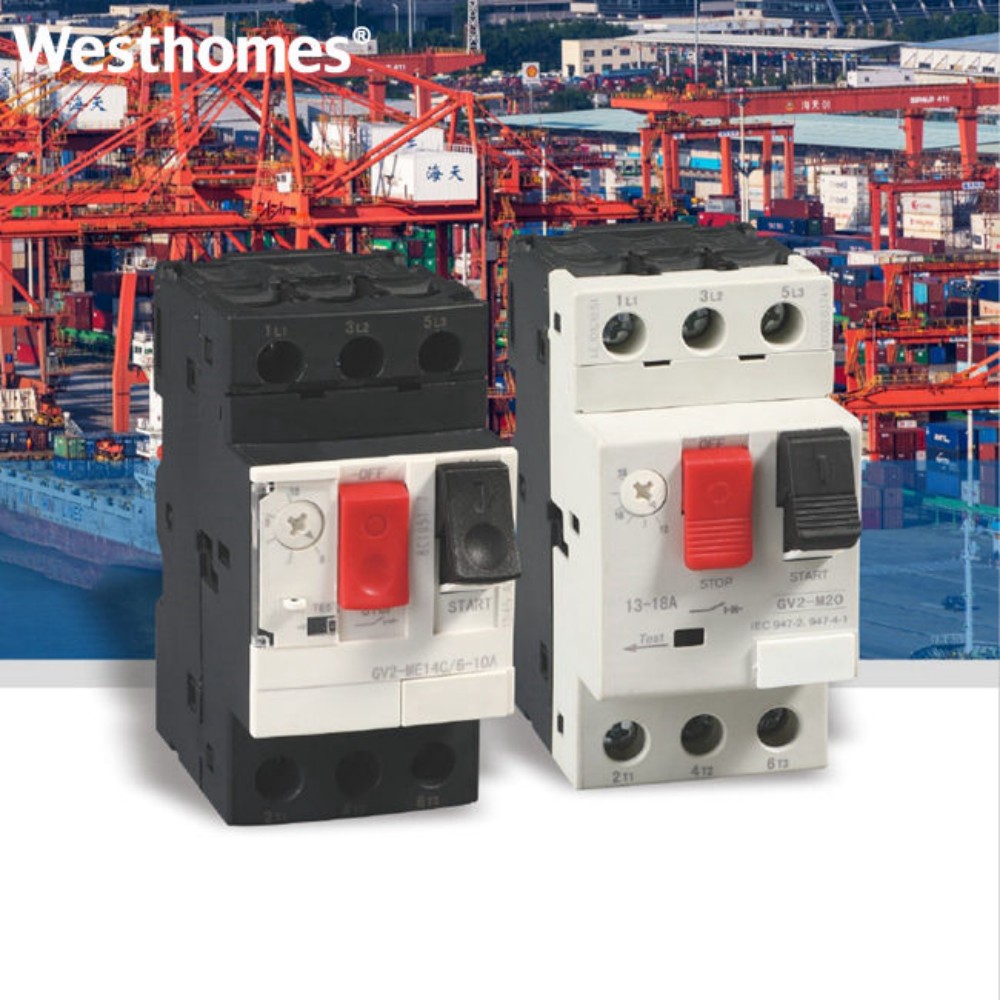

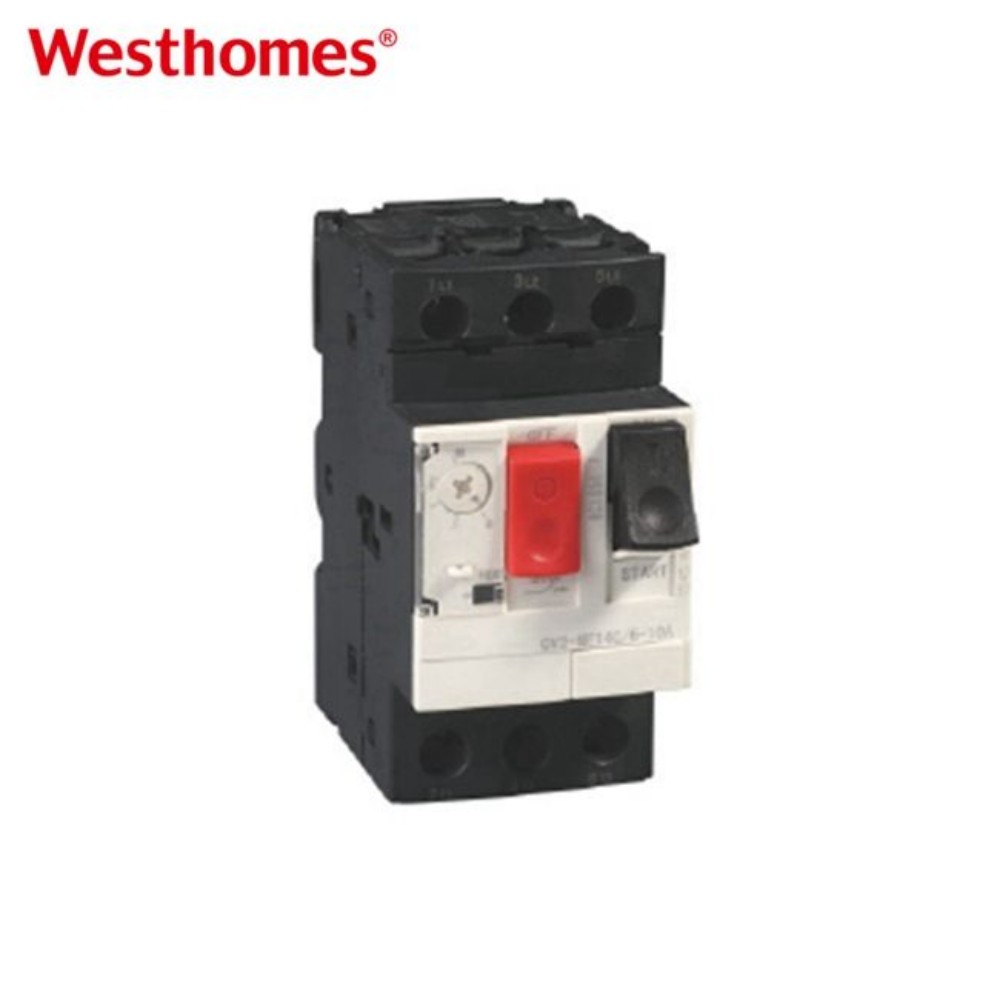

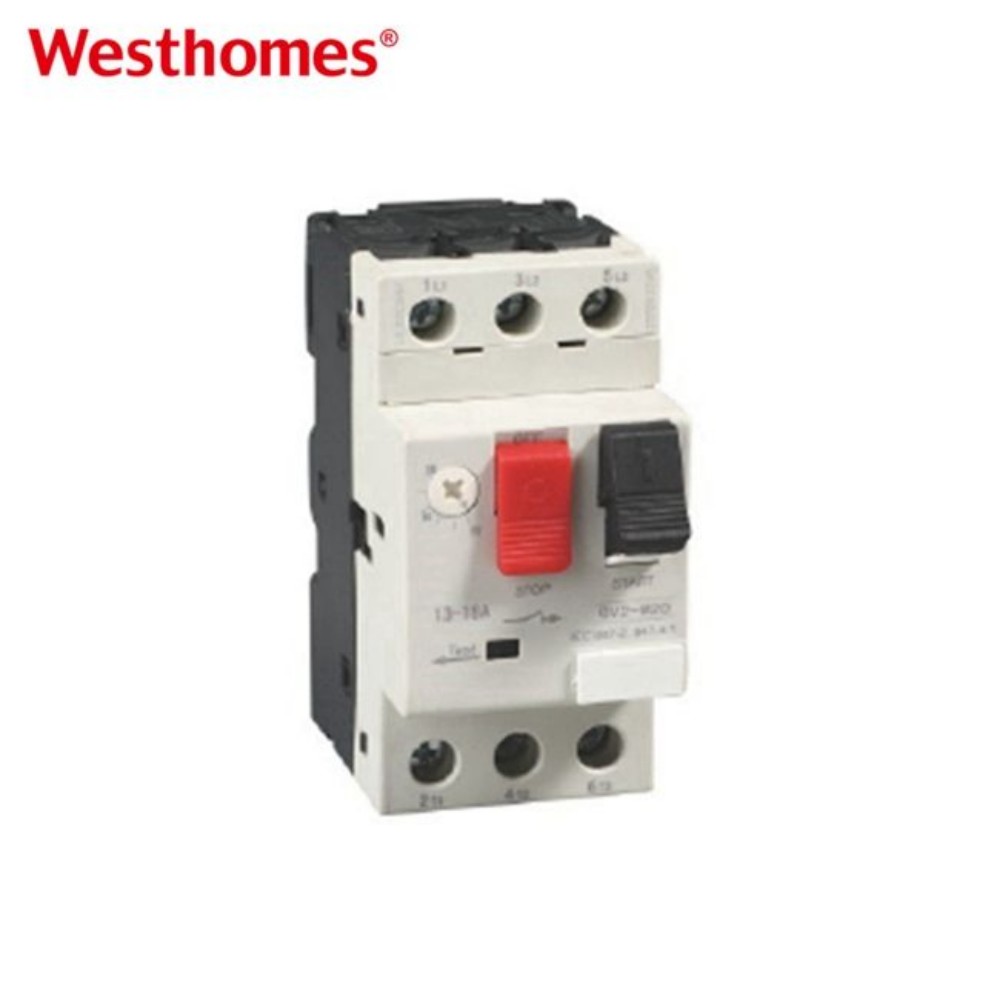

Westhomes GV2PM is a brand-new original motor protection circuit breaker (MPCB) with thermal magnetic tripping. It offers 0.1A–32A current range, 3-phase stability, robust structure, easy screw/rail mounting, and low maintenance for reliable industrial motor protection.
Key Features：
Built for Long-Distance Switching: Engineered to deliver consistent tripping performance even when installed remotely from control interfaces.
Low Maintenance Design: Robust construction reduces upkeep frequency and operational downtime.
3-Phase Capability: Designed for stable power distribution in three-phase AC systems, ensuring balanced operation.
Wide Adjustable Current: Covers 0.1A to 32A, accommodating a broad range of motor sizes with a single device series.
Applications:
Factory automation and machinery
Conveyor and processing equipment
Motor control centers and distribution boards
| PUSH BUTTON CONTROL OR TRANSFER SWITCH CONTROL | ||||||||
| 50/60Hz,AC-3 standard three-phase motor rated power |
Thermal trip setting range |
Magnetic trip current |
Ithe current with case |
Model (button control) |
Weight | |||
| 230V | 400V | 415V | 440V | |||||
| kW | kW | kW | kW | A | A | A | kG | |
| 一 | 一 | 一 | 一 | 0.1~0.16 | 1.5 | 0.16 | GV2-M2001 | 0.260 |
| 一 | 一 | 一 | 一 | 0.16~0.25 | 2.4 | 0.25 | GV2-M2002 | 0.260 |
| 一 | 一 | 一 | 一 | 0.25~0.40 | 5 | 0.40 | GV2-M2003 | 0.260 |
| 一 | 一 | 一 | 一 | 0.40~0.63 | 8 | 0.63 | GV2-M2004 | 0.260 |
| 一 | 一 | 一 | 0.37 | 0.63~1 | 13 | 1 | GV2-M2005 | 0.260 |
| 一 | 0.37 | 一 | 0.55 | 1~1.6 | 22.5 | 1.6 | GV2-M2006 | 0.260 |
| 0.37 | 0.75 | 0.75 | 1.1 | 1.6~2.5 | 33.5 | 2.5 | GV2-M2007 | 0.260 |
| 0.75 | 1.5 | 1.5 | 1.5 | 2.5~4 | 51 | 4 | GV2-M2008 | 0.260 |
| 1.1 | 2.2 | 2.2 | 3 | 4~6.3 | 78 | 6.3 | GV2-M2010 | 0.260 |
| 2.2 | 4 | 4 | 4 | 6~10 | 138 | 9 | GV2-M2014 | 0.260 |
| 3 | 5.5 | 5.5 | 7.5 | 9~14 | 170 | 13 | GV2-M2016 | 0.260 |
| 4 | 7.5 | 9 | 9 | 13~18 | 223 | 17 | GV2-M2020 | 0.260 |
| 5.5 | 11 | 11 | 11 | 17~23 | 327 | 21 | GV2-M2021 | 0.260 |
| 5.5 | 11 | 11 | 11 | 20~25 | 327 | 23 | GV2-M2022 | 0.260 |
| 7.5 | 15 | 15 | 15 | 24~32 | 416 | 24 | GV2-M2032 | 0.260 |
Note: GV2-M20 is the same as GV2-ME14
| TRANSFER SWITCH CONTROL | |||||||
| 50/60Hz,AC-3 Standard rated power of three-phase motor |
Thermal trip setting range |
Magnetic trip current(ld±20%) |
Model (transfer switch control) |
Weight | |||
| 230V | 400V | 415V | 440V | ||||
| kW | kW | kW | kW | A | A | A | kG |
| 一 | 一 | 一 | 一 | 0.1~0.16 | 1.5 | GV2-RS3201 | 0.260 |
| 一 | 一 | 一 | 一 | 0.16~0.25 | 2.4 | GV2-RS3202 | 0.260 |
| 一 | 一 | 一 | 一 | 0.25~0.40 | 5 | GV2-RS3203 | 0.260 |
| 一 | 一 | 一 | 一 | 0.40~0.63 | 8 | GV2-RS3204 | 0.260 |
| 一 | 一 | 一 | 0.37 | 0.63~1 | 13 | GV2-RS3205 | 0.260 |
| 一 | 0.37 | 一 | 0.55 | 1~1.6 | 22.5 | GV2-RS3206 | 0.260 |
| 0.37 | 0.75 | 0.75 | 1.1 | 1.6~2.5 | 33.5 | GV2-RS3207 | 0.260 |
| 0.75 | 1.5 | 1.5 | 1.5 | 2.5~4 | 51 | GV2-RS3208 | 0.260 |
| 1.1 | 2.2 | 2.2 | 3 | 4~6.3 | 78 | GV2-RS3210 | 0.260 |
| 2.2 | 4 | 4 | 4 | 6~10 | 138 | GV2-RS3214 | 0.260 |
| 3 | 5.5 | 5.5 | 7.5 | 9~10 | 170 | GV2-RS3216 | 0.260 |
| 4 | 7.5 | 9 | 9 | 13~18 | 223 | GV2-RS3220 | 0.260 |
| 5.5 | 11 | 11 | 11 | 17~23 | 327 | GV2-RS3221 | 0.260 |
| 5.5 | 11 | 11 | 11 | 20~25 | 327 | GV2-RS3222 | 0.260 |
| 7.5 | 15 | 15 | 15 | 24~32 | 416 | GV2-RS3232 | 0.260 |
| TRANSFER SWITCH CONTROL | ||||||||
| 50/60Hz,AC-3 Standard rated power of three-phase motor |
Protection rating |
Magnetic trip current (ld±20%) |
With JRS4-d overload relay |
Model (button control) |
Weight | |||
| 230V | 400V | 415V | 440V | |||||
| kW | kW | kW | kW | A | A | kG | ||
| 一 | 一 | 一 | 一 | 0.4 | 5 | JRS4-1303d | GV2-LS3203 | 0.330 |
| 一 | 一 | 一 | 一 | 0.63 | 8 | JRS4-1304d | GV2-LS3204 | 0.330 |
| 一 | 一 | 一 | 0.37 | 1 | 13 | JRS4-1305d | GV2-LS3205 | 0.330 |
| 一 | 0.37 | 一 | 0.55 | 1.6 | 22.5 | JRS4-1306d | GV2-LS3206 | 0.330 |
| 0.37 | 0.75 | 0.75 | 1.1 | 2.5 | 33.5 | JRS4-1307d | GV2-LS3207 | 0.330 |
| 0.75 | 1.5 | 1.5 | 1.5 | 4 | 51 | JRS4-1308d | GV2-LS3208 | 0.330 |
| 1.1 | 2.2 | 2.2 | 3 | 6.3 | 78 | JRS4-1310d | GV2-LS3210 | 0.330 |
| 2.2 | 4 | 4 | 4 | 10 | 138 | JRS4-1314d | GV2-LS3214 | 0.330 |
| 3 | 5.5 | 5.5 | 7.5 | 14 | 170 | JRS4-1316d | GV2-LS3216 | 0.330 |
| 4 | 7.5 | 9 | 9 | 18 | 223 | JRS4-1321d | GV2-LS3220 | 0.330 |
| 5.5 | 11 | 11 | 11 | 25 | 327 | JRS4-1322d | GV2-LS3222 | 0.330 |
| 7.5 | 15 | 15 | 15 | 32 | 6 | JRS4-2355d | DZS32-LS3232 | 0.330 |
| BUTTON CONTROL | |||||||
| 50/60Hz,AC-3 Standard rated power of three-phase motor |
Thermal trip setting range |
Magnetic trip current (ld±20%) |
Model (button control) |
Weight | |||
| 230V | 400V | 415V | 440V | ||||
| kW | kW | kW | kW | A | A | kG | |
| 一 | 0.37 | 一 | 0.55 | 1~1.6 | 19.2 | GV3-ME50C06 | 0.600 |
| 0.37 | 0.75 | 1.1 | 1.1 | 1.6~2.5 | 30 | GV3-ME50C07 | 0.600 |
| 0.75 | 1.5 | 1.5 | 1.5 | 2.5~4 | 48 | GV3-ME50C08 | 0.600 |
| 1.1 | 2.2 | 2.2 | 3 | 4~6 | 72 | GV3-ME50C10 | 0.600 |
| 2.2 | 4 | 4 | 4 | 6~10 | 120 | GV3-ME50C14 | 0.600 |
| 4 | 7.5 | 7.5 | 7.5 | 10~16 | 192 | GV3-ME50C20 | 0.600 |
| 5.5 | 11 | 11 | 11 | 16~25 | 300 | GV3-ME50C25 | 0.600 |
| 1 | 18.5 | 22 | 22 | 25~40 | 480 | GV3-ME50C40 | 0.700 |
| 15 | 30 | 33 | 33 | 40~63 | 756 | GV3-ME50C63 | 0.700 |
| 22 | 40 | 45 | 45 | 56~80 | 960 | GV3-ME50C80 | 0.700 |
Note: GV3-ME50C is the same as GV3-M50C
| Selling Units | Single item |
| Quantity (pieces) | 1 – 100 | > 100 |
| Lead time (days) | 10 | To be negotiated |
| Breaking Capacity | 100 kA |
| Type | Mini |
| Application | Motor Protection, Industrial |
| Material | Copper |
| Model Number | GV2PM |
| Poles Number | 3 |
| BCD Curve | C |
| Mounting type | Din Rail Mount |
| Place of Origin | Zhejiang, China |
| Brand Name | Westhomes |
The Westhomes GV2PM Original Thermal Magnetic MPCB (Motor Protection Circuit Breaker) is a motor protection device designed to provide reliable protection against overloads, short circuits, and phase failure conditions. It combines thermal and magnetic protection functions in one compact unit for low-voltage motor applications.
Thermal magnetic protection combines two protection methods. The thermal function protects motors from prolonged overload conditions by detecting excessive current over time, while the magnetic function provides rapid protection against short-circuit faults.
The GV2PM Thermal Magnetic MPCB supports an adjustable current range from 0.1A to 32A. Users can select and adjust the current setting according to the motor’s rated current and operating requirements.
The GV2PM is suitable for various industrial motor applications, including pumps, fans, compressors, conveyors, machine tools, and automation equipment. It is commonly used in motor control panels and low-voltage distribution systems.
The GV2PM provides thermal overload protection, magnetic short-circuit protection, and manual motor circuit switching. These functions help protect motors from damage caused by abnormal current conditions and improve system reliability.
An MPCB is specially designed for motor protection and considers motor starting current characteristics. An MCB is mainly used for general electrical circuit protection against overload and short circuits. MPCBs provide more suitable protection for motor applications.
The correct GV2PM model should be selected according to the motor’s rated current, operating voltage, power rating, and application requirements. The adjustable thermal protection setting should match the motor full-load current for effective protection.
Yes. The GV2PM Thermal Magnetic MPCB can be combined with a contactor to form a complete motor starter solution. This combination provides motor control, overload protection, and short-circuit protection for industrial applications.
Yes. The GV2PM MPCB can help protect motors against phase failure conditions by detecting abnormal current situations that may occur when a motor loses one phase, reducing the risk of overheating and damage.
The Westhomes GV2PM Original Thermal Magnetic MPCB provides reliable motor protection with adjustable thermal overload protection, magnetic short-circuit protection, and compact installation. It is an effective solution for improving motor safety, reducing downtime, and extending equipment service life.
