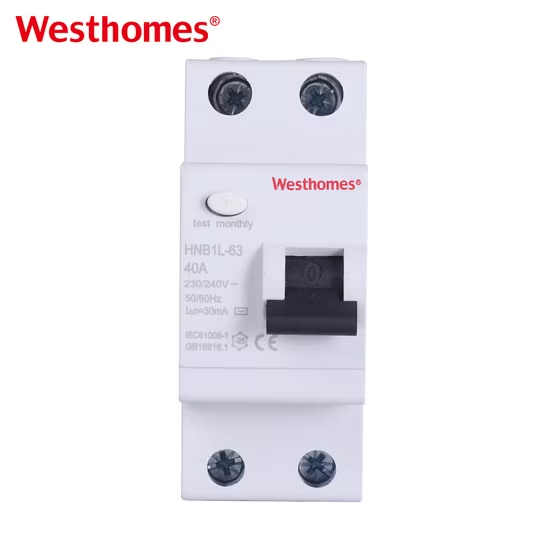

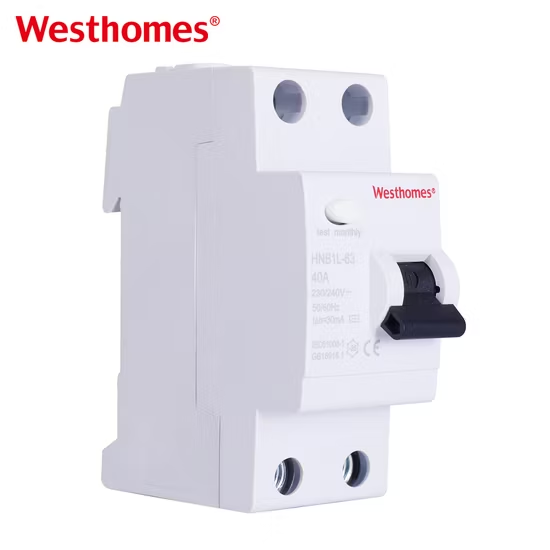

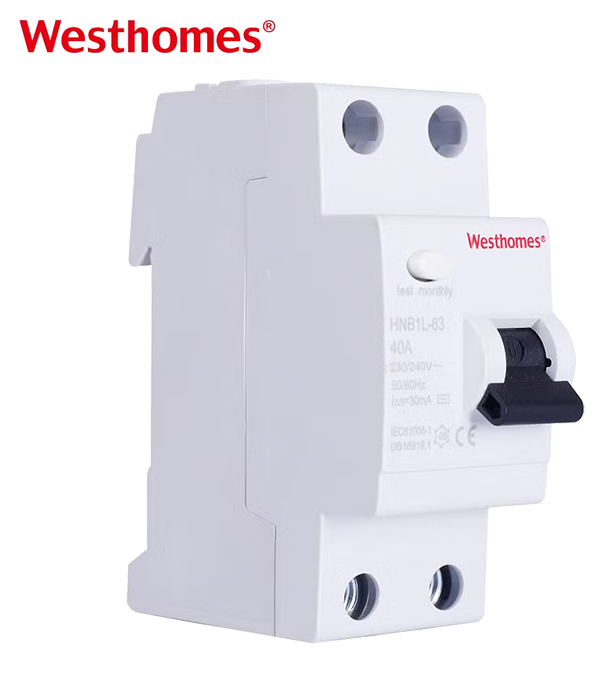

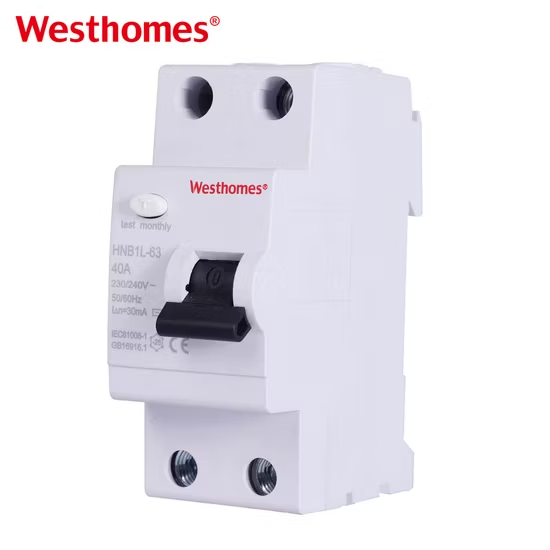

The HNB1L-63 RCBO 1P+N is a reliable circuit protection solution that ensures safety and efficiency in modern electrical networks.
The HNB1L-63 1P+N RCBO (Residual Current Circuit Breaker with Overcurrent Protection) is a compact, high-performance miniature circuit breaker designed for AC 50Hz power distribution systems, with a rated voltage of 240/400V and rated current up to 63A.
The HNB1L-63 RCBO 1P+N Miniature Circuit Breaker is particularly suitable for low-voltage installations requiring precise fault current management with minimal space usage.
Ideal for single-phase applications, this 1P+N RCBO integrates residual current protection, overload protection, and short-circuit protection into one device.
Engineered to immediately disconnect power in the event of electric shock or leakage current exceeding specified limits, this RCBO ensures maximum electrical safety for both personnel and sensitive equipment. Its 1P+N configuration is optimal for residential, commercial, and light industrial circuits requiring precise fault detection and rapid interruption.
Key Features:
Model: HNB1L-63
Configuration: 1P+N (Single Pole + Neutral)
Rated Voltage: AC 240/400V
Rated Frequency: 50Hz
Rated Current: Up to 63A
Breaking Capacity: Up to 6kA
Trip Functions: Residual current, overload, short circuit
Response Time: Fast fault disconnection to prevent electric shock
Material: High-strength, flame-retardant plastic shell
Design: Compact, space-saving structure
Use Scenarios:
Residential buildings
Office power systems
Distribution panels
Equipment protection in commercial facilities
Additional Functions:
Suitable for infrequent manual switching under normal operating conditions
Standard Compliance: IEC/EN61009-1
| Rated current | 10, 16, 20, 25, 32, 40, 50, 63A |
| Rated voltage Ue | AC240V (1P+N, 2P); AC400V (3P+N, 4P) |
| Rated insulation voltage Ui | AC415 |
| Rated impulse withstand voltage Uimp | 4kV |
| Rated frequency | 50/60Hz |
| Number of poles | 1P+N, 3P+N |
| Module size | 36mm, 72mm |
| Circuit type | AC type, A type, B type |
| Breaking capacity | 6000A, 10000A |
| Rated residual current I△n | 10mA, 30mA, 100mA, 300mA |
| Rated residual operation current | 10, 30, 100, 300mA |
| Optimum operation temperature | -5ºC to 40ºC |
| Terminal tightening torque | 2.5-4N/m |
| Terminal capacity (top) | 25mm² |
| Terminal capacity (bottom) | 25mm² |
| Electro-mechanical endurance | 4000 cycles |
| Mounting | 35mm DIN rail |
| The very new tripping structure makes more in safety | |
| Suitable busbar | PIN busbar |
| Standard | IEC61008-1 |
| Model NO. | HNB1L-63 |
| Arc-extinguishing Medium | Air |
| Structure | MCB |
| Type | Circuit Breaker |
| Certification | ISO9001-2000, CE, CB, CCC |
| Ka | 6ka, 10ka |
| Voltage | AC240V/AC400V |
| Specification | 10A-63A |
| Origin | China |
| Production Capacity | 365000 |
| Speed | Normal Type Circuit Breaker |
| Installation | Fixed |
| Poles Number | 1p+N |
| Function | Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection) |
| Production Line | 100% Automic |
| Cooperation Type | OEM ODM |
| Transport Package | Standard |
| Trademark | Westhomes |
| HS Code | 8536300000 |
