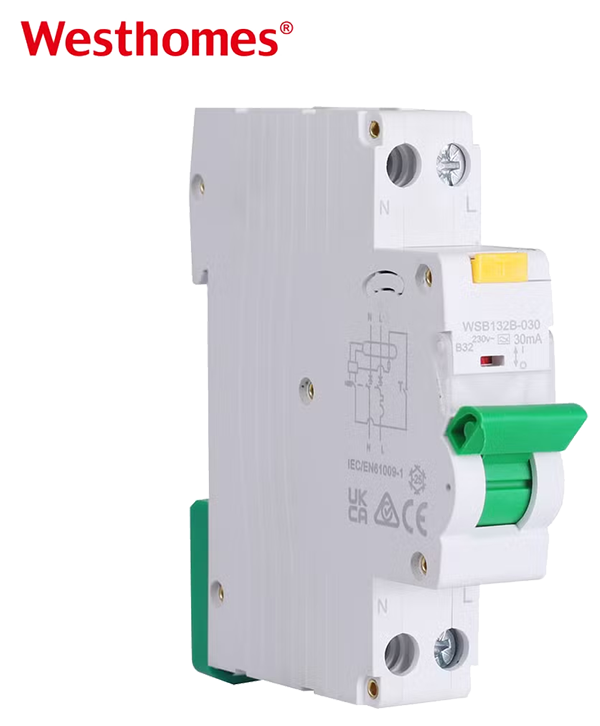

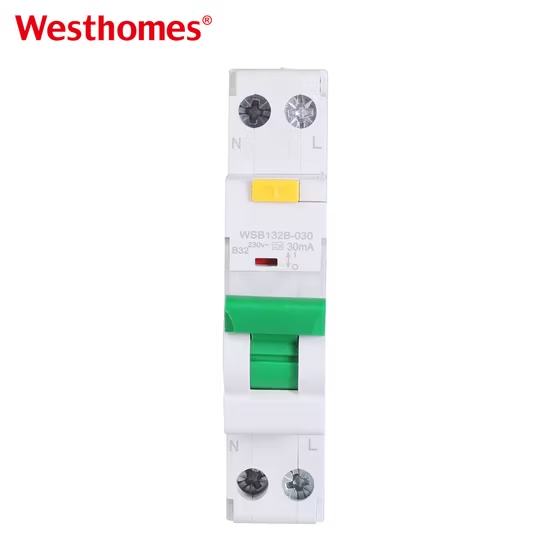

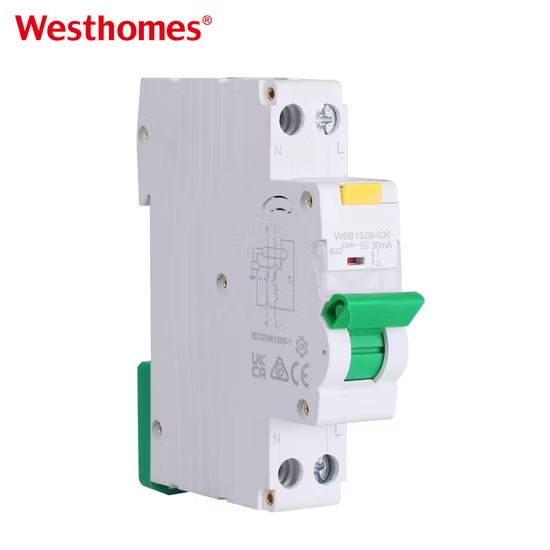

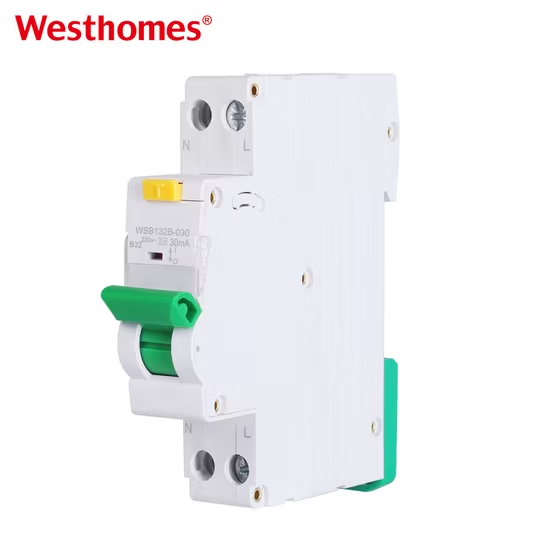

WSB132B-030 RCBO Residual Current Circuit Breaker with Overcurrent Protection
It supports single-pole two-wire and two-pole 230V configurations, with a rated current up to 40A and a maximum short-circuit breaking capacity of 6000A.
Get quick appointment for technical support!
WSB132B-030 RCBO Residual Current Breaker
The WSB132B-030 RCBO Residual Current Circuit Breaker with Overcurrent Protection is an advanced safety device designed for AC 50/60Hz power systems.
This high-performance RCBO provides dual functionality: residual current protection to prevent electric shock and leakage hazards, and overcurrent protection to safeguard circuits from overload and short circuits. In the event of current leakage or electric shock, the device automatically cuts off the power within milliseconds, ensuring the safety of personnel and electrical equipment.
Ideal for residential, commercial, and industrial electrical installations, this RCBO offers a reliable and efficient safety solution for modern electrical distribution systems.
Key Features:
Model No.: WSB132B-030
Voltage Rating: Single-pole two-wire & two-pole 230V
Current Rating: Up to 40A
Breaking Capacity: ≤6000A
Functions: Leakage protection, overload protection, short-circuit protection
Applications: Distribution line protection, motor protection, occasional circuit switching
Standard Compliance: Fully complies with IEC/EN61009-1
KEY INFORMATION
| Rated current | 6, 10, 16, 20, 25, 32, 40A |
| Rated voltage Ue | AC230V (1P+N) |
| Rated insulation voltage Ui | AC400 |
| Rated impulse withstand voltage Uimp | 4kV |
| Rated frequency | 50/60Hz |
| Number of poles | 1P+N |
| Module size | 18mm |
| Trip type | B, C |
| Breaking capacity | 6000A |
| Rated residual current I△n | 30mA |
| Optimum operation temperature | 30ºC |
| Mounting | 35mm DIN rail |
| The very new tripping structure makes more in safety | |
| Suitable busbar | PIN busbar |
| Standard | IEC/EN61009-1 |
Basic Info.
| Model NO. | WSB132B-030 |
| Arc-extinguishing Medium | Air |
| Structure | RCBO |
| Type | Circuit Breaker |
| Certification | ISO9001-2000, CE, CB, CCC |
| Ka | 6ka |
| Residual Current | 30mA |
| Specification | 6A-40A |
| Origin | China |
| Production Capacity | 365000 |
| Speed | Normal Type Circuit Breaker |
| Installation | Fixed |
| Poles Number | 1p+N |
| Function | Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection) |
| Production Line | 100% Automic |
| Cooperation Type | OEM ODM |
| Transport Package | Standard |
| Trademark | Westhomes |
| HS Code | 8536300000 |
