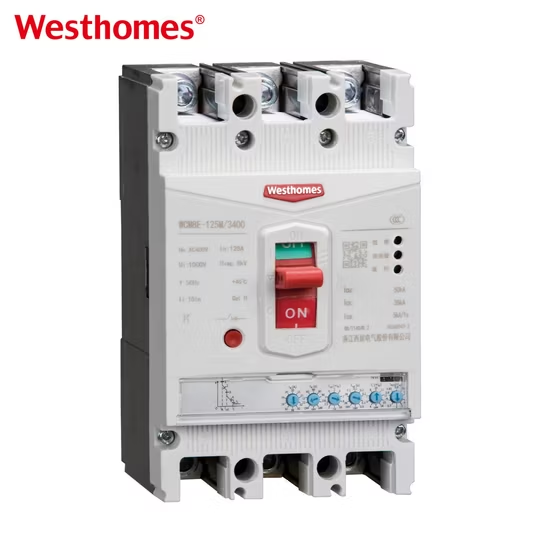

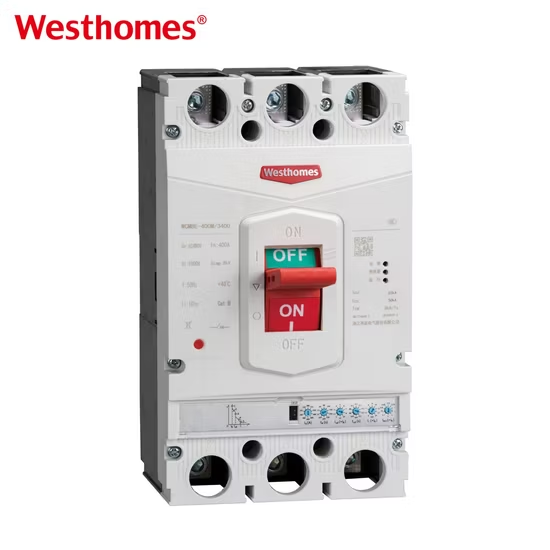

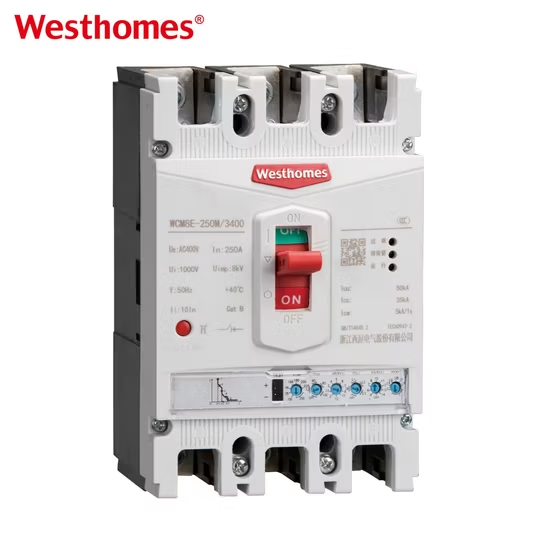

3 Pole 400A MCCB – WCM8E-250M

A Molded Case Circuit Breaker (MCCB) is an over-current protective device that interrupts a circuit automatically on overload or short circuit. It combines a thermal element that bends a bimetal strip over time on sustained overload and an electromagnetic solenoid that trips instantly on very high fault current. The WCM8E-250M packages both mechanisms inside a rigid insulating molded case with a manual operating handle.

The 400A is the maximum continuous current the breaker can carry without tripping, and 3 Pole means it switches and protects all three phases of a three-phase system. It is typically used as a main or feeder breaker in 400V-class three-phase distribution. Because it opens all three poles together, it prevents a single-phase condition from being left energized after a fault.

Thermal-magnetic tripping means the breaker has a thermal (time-delay) trip for overloads and a magnetic (instantaneous) trip for short circuits. On the WCM8E-250M you can usually set the rated current (Ir) and, in electronic versions, the instantaneous threshold (Ii) to match the actual cable and load. This lets you coordinate downstream devices and avoid nuisance trips without sacrificing short-circuit protection.

Breaking capacity (rated ultimate short-circuit breaking capacity, Icu) is the maximum fault current the breaker can safely clear without destruction. A 35kA or 50kA-rated MCCB is required where the upstream transformer can deliver a high prospective short-circuit current. Selecting a breaker with Icu below the available fault level risks violent failure, so the installed value must always exceed the calculated prospective short-circuit current at the point of installation.

The WCM8E-250M is generally mounted on a chassis or DIN/stud fixing inside a distribution board or cabinet, with busbars or cables connected to line (supply) and load terminals. It should be installed upright, with adequate clearance around operating and terminal areas, and isolated by a properly rated isolator for maintenance. Accessories such as shunt releases, undervoltage releases, auxiliary contacts, and motor operators can be fitted to extend control and monitoring.

Use copper lugs sized to the 400A rating (typically 185–240 mm² depending on cable length and derating), torque all terminals to the manufacturer's value, and keep conductors straight near the terminals. Match line and load orientation (marked "1/2/3" on line, "2/4/6" on load) unless the device is stated reversible. Ensure earth and neutral are routed separately so no current-carrying conductor passes through the breaker's current sensing in a way that affects its protection.

Yes, but it must be selected with a suitable motor-protective (M) trip curve so that the locked-rotor starting current (typically 6–10× rated) does not cause instantaneous tripping during start-up. An MCCB used as a motor circuit protector provides short-circuit and earth-fault backup, while a separate overload relay (e.g., in a contactor+overload starter) handles running overload. The trip setting must be coordinated with the motor full-load current.

The WCM8E-250M is designed and type-tested to IEC 60947-2, which covers low-voltage switchgear and controlgear—specifically circuit-breakers for over-current protection. The standard defines rated voltages, currents, short-circuit breaking capacity (Icu/Ics), utilization categories (e.g., A or B), and trip characteristics. CE marking and related regional certifications confirm conformity to applicable safety and EMC requirements.

Periodically inspect the breaker for physical damage, check terminal tightness with a torque wrench, and operate the manual trip/test mechanism to confirm mechanical freedom. Keep the interior clean and dry, and record trip events; if the breaker has cleared a major short circuit, it should be inspected or replaced by a qualified electrician even if it appears to reset. Do not attempt to dismantle the molded case, as the arc chute and contacts are factory-sealed.

MCBs are small, DIN-rail, fixed-trip devices generally up to 125A with lower breaking capacity, used for final circuits. MCCBs like the WCM8E-250M cover roughly 16A–1600A with adjustable settings and high breaking capacity, used for feeders and mains. Air Circuit Breakers (ACBs) are larger, draw-out or fixed breakers from ~630A upward, used as main incomers with advanced protection and communication. In short: MCB for circuits, MCCB for feeders, ACB for the main switch.
