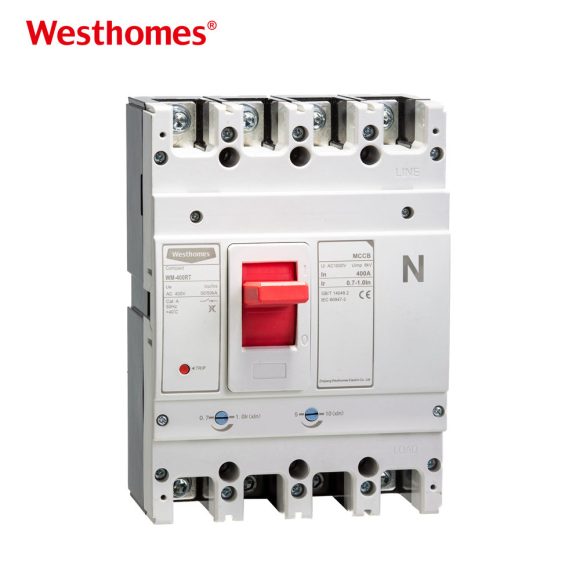

Thermal Magnetic Overload Protection Switch

A thermal magnetic overload protection switch is an electrical protection device that combines thermal overload protection and magnetic short-circuit protection in one unit.
The thermal mechanism protects circuits from long-term overcurrent conditions, while the magnetic mechanism provides rapid protection against short-circuit faults.
Westhomes thermal magnetic protection switches are widely used in low-voltage distribution systems, industrial equipment, and motor protection applications.

Thermal magnetic protection works through two independent mechanisms:
Thermal trip: Uses a bimetal element that bends when excessive current generates heat. It provides delayed protection against overload conditions.
Magnetic trip: Uses an electromagnetic mechanism that reacts instantly when a high fault current occurs, providing short-circuit protection.
The combination ensures both reliable overload protection and fast fault interruption.

The main difference is the type of fault they protect against.
Protection Type | Function | Response Time
Thermal Protection | Protects against overload current | Delayed trip
Magnetic Protection | Protects against short circuit current | Instant trip
Thermal protection prevents cable overheating, while magnetic protection protects equipment from sudden high fault currents.

Thermal magnetic overload protection switches are commonly used in:
Industrial control panels
Motor protection systems
Factory power distribution
Commercial buildings
HVAC equipment
Pump and compressor systems
They are suitable for applications requiring reliable overload and short-circuit protection.

Both devices use thermal and magnetic protection principles, but their applications are different.
MCBs are mainly designed for residential and small commercial circuits, while thermal magnetic switches and MCCBs are commonly used for higher-current industrial applications.
Thermal magnetic protection devices usually provide higher current ratings, stronger breaking capacity, and better adjustment options.

Yes.
Thermal magnetic protection switches are commonly used for motor applications because they can protect against motor overload and short-circuit faults.
However, proper selection must consider motor rated current, starting current, and operating conditions to avoid unnecessary tripping.

Continuous overload operation can cause cables and electrical equipment to overheat, reducing service life and creating potential fire risks.
Thermal overload protection disconnects the circuit when excessive current continues for a certain period, helping prevent equipment damage.

Fixed thermal magnetic protection has preset trip values and is commonly used in standard applications.
Adjustable thermal magnetic protection allows engineers to modify protection settings according to different load characteristics, providing greater flexibility for industrial systems.

Selection should consider:
Rated current of the load
System voltage
Short-circuit current level
Breaking capacity
Application environment
Motor starting characteristics (if applicable)
Choosing the correct protection device ensures safety and prevents unwanted shutdowns.

Westhomes thermal magnetic protection switches combine reliable protection technology, durable mechanical design, and accurate trip performance.
Designed for modern low-voltage electrical systems, they provide effective protection solutions for industrial equipment, power distribution systems, and commercial applications.
