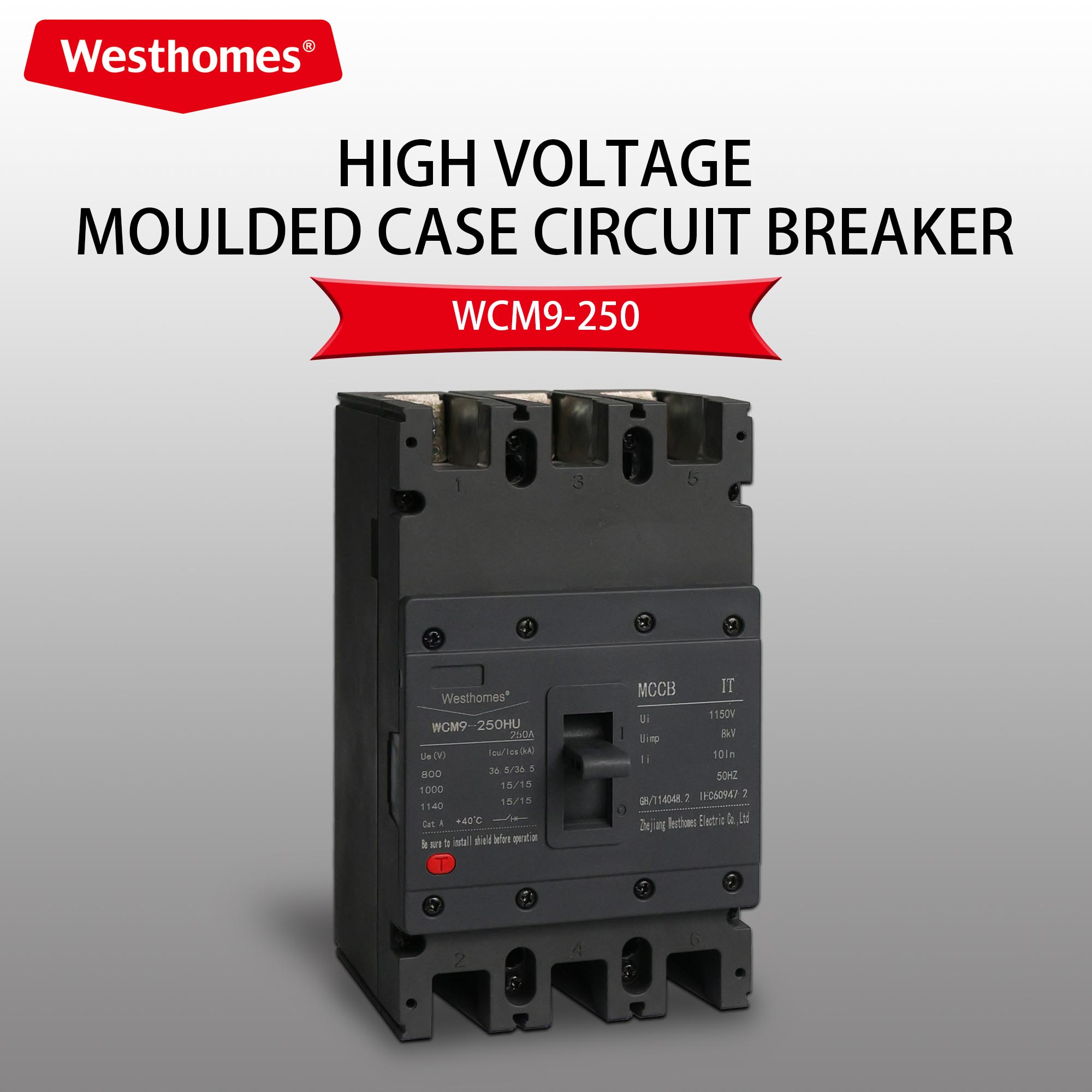

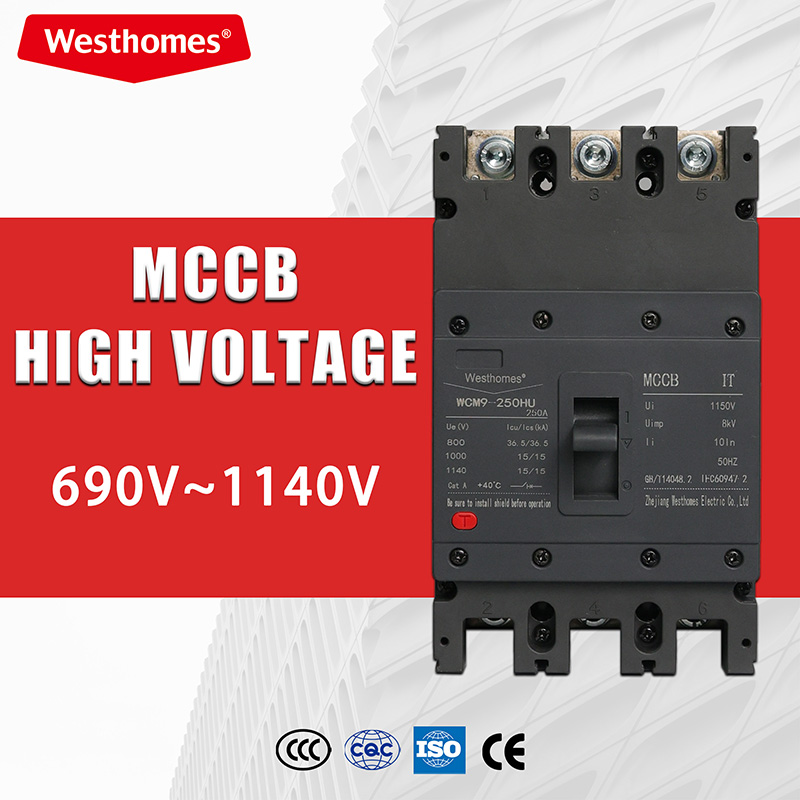

WCM9-250 High Voltage MCCB Thermal-Magnetic Protection

Westhomes WCM9-250 is a thermal-magnetic molded case circuit breaker (MCCB) designed for low-voltage power distribution systems. It provides reliable protection against overload and short-circuit faults through thermal and magnetic trip mechanisms.
It is suitable for industrial, commercial, and power distribution applications where stable circuit protection is required.

The main features include:
Thermal overload protection
Magnetic short-circuit protection
High breaking capacity
Compact molded case design
Reliable operation under industrial conditions
The WCM9 series is designed to provide safe and stable protection for modern electrical systems.

The frame size of WCM9-250 is 250A. The actual rated current can be selected according to different application requirements.
The 250A frame design provides flexibility for various distribution systems.

Thermal protection responds to long-term overload conditions. When current exceeds the rated value for a certain period, the thermal mechanism trips the breaker.
Magnetic protection reacts quickly to short-circuit faults by instantly disconnecting high fault currents.

WCM9-250 MCCB is commonly used in:
Industrial power distribution systems
Factory electrical cabinets
Commercial buildings
Motor protection applications
Energy management systems
It is suitable for applications requiring higher protection levels than miniature circuit breakers.

The main differences are rated current range, breaking capacity, and application areas.
MCBs are mainly used for residential and small commercial circuits, while MCCBs are designed for industrial systems with higher current requirements.

Yes.
WCM9-250 integrates magnetic short-circuit protection. When a short circuit occurs, the magnetic trip unit quickly disconnects the circuit to reduce equipment damage risks.

Yes, WCM9-250 can be applied in motor-related systems when properly selected according to motor rated current, starting current, and protection requirements.
For motor applications, engineers should consider starting current characteristics to avoid unnecessary tripping.

Westhomes MCCB products are designed according to international electrical standards and quality requirements.
They are manufactured under strict quality control systems to ensure reliable performance and safety.

Westhomes WCM9-250 combines reliable protection performance, durable construction, and professional manufacturing experience.
It provides an effective solution for customers requiring safe and stable low-voltage power distribution protection.
