Circuit Breaker Wiring Configurations in Distribution Boxes

Introduction

Correct circuit breaker wiring configurations are the foundation for the safety, reliability, and overall performance of any electrical distribution system. In a distribution box, the way circuit breakers, busbars, neutral conductors, and grounding conductors are connected directly affects how effectively the system can protect against overloads, short circuits, and fault currents.

Improper wiring may not only compromise protection performance but can also create overheating risks, nuisance tripping, or even equipment failure.

Understanding these configurations is crucial in a wide range of installations—from a single-family home to commercial buildings and industrial facilities. Each type of wiring arrangement has its own purpose and benefits, whether it’s a simple single-pole connection for basic lighting circuits or a more complex three-phase setup for heavy-duty equipment.

Proper comprehension ensures that the right protection method is applied to the right circuit, enhancing safety and operational reliability.

Main Components Inside a Distribution Box

A typical distribution box consists of several essential components that work together to distribute and protect power efficiently:

• Main Breaker or Main Isolator: Acts as the primary disconnect for the entire system, providing a simple way to cut off power in emergencies.
• Busbars: Efficiently distribute incoming power to branch circuit breakers, ensuring stable voltage and current flow.
• Neutral Bars (N): Collect return conductors for both single-phase and three-phase circuits, maintaining balanced operation.
• Earth/Ground Bars (PE): Provide a reliable path for fault currents to safely dissipate into the ground, protecting equipment and personnel.
• Branch Circuit Breakers: Safeguard individual circuits, whether for lighting, sockets, motors, or other electrical loads.

Proper coordination of these components ensures not only safety but also an orderly, functional distribution system. In addition, the physical layout affects accessibility for maintenance and future upgrades, which is especially important in commercial and industrial installations.

Common Wiring Configurations

3P / 4P Wiring for Three-Phase Systems

• 3P breakers: Protect and switch L1, L2, and L3.
• 4P breakers: Additionally switch the neutral conductor for full isolation.

These configurations are widely used for industrial loads, motor control, and larger distribution systems where phase coordination and system stability are critical. Proper wiring prevents overloads, reduces voltage imbalance, and supports efficient energy distribution.

Circuit Breaker Installation in Distribution Boxes

Installing breakers should follow a logical, standardized sequence: Incoming Power → Main Breaker → Branch Breakers → Load Devices. Standard installation ensures safe operation, easy maintenance, and compliance with electrical codes.

Step-by-Step Installation:

1. Incoming Power: Connect the line (L) and neutral (N) from the utility or generator to the main breaker input.

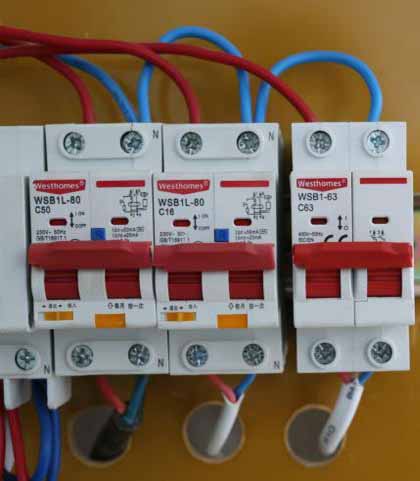

2. Main Breaker: Use a 2P breaker when possible to disconnect both line and neutral simultaneously for higher safety.

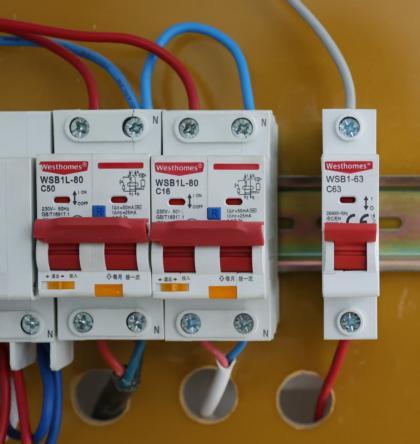

3. Branch Breakers: Connect individual circuits (1P breakers) for lighting, sockets, or appliances below the main breaker.

4. Neutral Bus: All neutral conductors terminate on the neutral bar.

5. Ground Bus: All grounding conductors connect to the PE bar.

6. Temporary Construction Circuits: Use proper segregation and follow standard safety procedures.

Correct installation not only ensures circuit protection but also simplifies future troubleshooting and expansion.

Key Wiring Principles

• Line vs Load Identification: Supply conductors must connect to LINE terminals; outgoing circuits connect to LOAD terminals.
• Neutral & Ground Separation: Neutral and PE bars should remain separate to avoid fault currents and ensure compliance.
• Phase Load Balancing: For three-phase systems, distribute loads evenly to minimize overheating and voltage imbalance.

WESTHOMES Distribution Box Solution

The WESTHOMES SHT Distribution Box provides a reliable foundation for wiring breakers in residential and commercial applications:

• IP66 protection: Excellent waterproof and dustproof performance.
• UV-resistant housing: Suitable for both indoor and outdoor installations.
• 650°C glow-wire resistance: Enhances fire safety.
• Customizable cable entries: Flexible layout options.
• Easy installation: Simplifies assembly and maintenance.

With robust protection and flexible design, the SHT series supports safe, durable wiring for various breaker configurations.

Common Wiring Mistakes to Avoid

• Loose terminal connections leading to heat buildup.
• Incorrect neutral-ground connections.
• Using the wrong pole configuration for the load.
• Overloading branch circuits.
• Using jumper wires instead of properly rated busbars.

Avoiding these mistakes improves both safety and system reliability.

Safety and Installation Best Practices

• Use properly sized conductors.
• Follow torque specifications for all terminals.
• Utilize comb busbars where possible.
• Verify grounding continuity before energizing.
• Follow IEC and NEC standards.

Good wiring practice ensures not just code compliance but long-term operational reliability.

Frequently Asked Questions (FAQ)

Conclusion

Circuit breaker wiring is more than connecting conductors; it is about building a safe, reliable, and organized distribution system. Understanding wiring principles, following proper installation steps, avoiding common mistakes, and using quality enclosures such as WESTHOMES SHT ensures long-term safety and efficiency in any installation.
