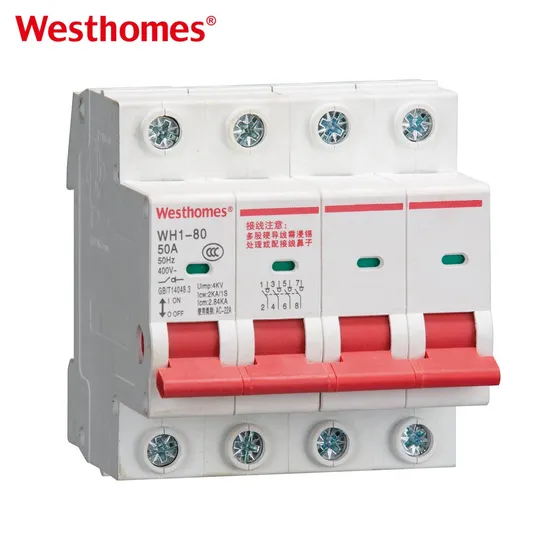

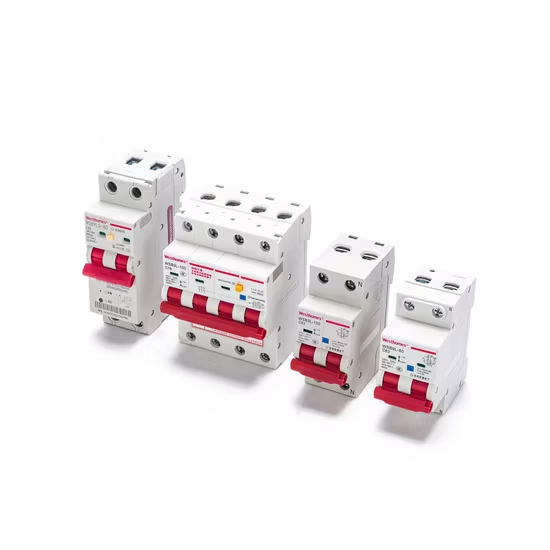

Westhomes Electric WH1-80 4P Switch Disconnector

The WH1-80 4p features a durable, high-strength, flame-retardant nylon shell and a reliable contact system with bridge double breakpoints.

Social focus:

Model NO. WH1-80: 4P Switch Disconnector for Quad-Pole Power Isolation

The WH1-80 series 4P switch disconnector by Westhomes Electric is designed to provide effective power isolation in industrial, commercial, high-rise, and civil buildings.

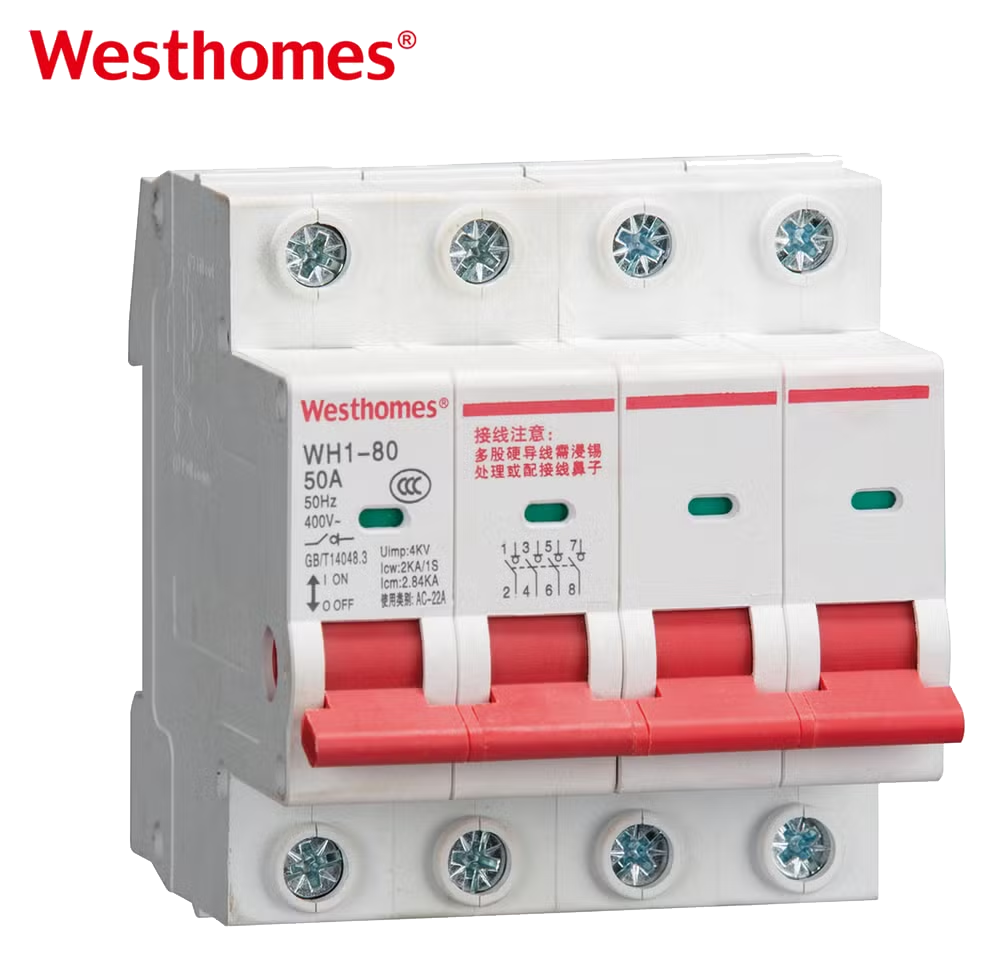

WH1-80 4p details

The WH1-80 series 4P switch disconnector with compatibility for AC 50/60Hz lines, rated voltages of AC230V/400V, and rated current capacities ranging from 20A to 80A. This switch is ideal for disconnecting power and providing infrequent switching of unloaded lines.

The WH1-80 operational mechanism is equipped with a spring energy-saving fast-moving structure that ensures quick and dependable switching action.

Offering configuration flexibility in 4P, 3P, 2P, or 1P setups, the WH1-80 4P switch disconnector is easy to install with a standard mounting rail. It is also compatible with mini circuit breakers and earth leakage circuit breakers for enhanced protection.

Key Features:

4P Switch Disconnector – Perfect for quad-pole power isolation

Rated Current – Supports 20A to 80A

High-Quality Construction – Flame-retardant nylon shell for durability

Quick Switching – Fast and efficient operation with a spring energy-saving mechanism

Simple to install – Compatible with standard mounting rails

Ideal for: Industrial, commercial, high-rise, and civil buildings

KEY INFORMATION

Model WH1-80 4p
Current rating 20A, 25A, 32A, 40A, 50A, 63A, 80A
Poles (p) 1P, 2P, 3P, 4P
Rated Voltage Ue AC230V/400V (1P); 400V (2P-4P)
Rated short-time withstand current Icw 2kA
Rated short-time connecting capacity Icm 2.84kA
Hydrothermal resistance Category 2
Uilization Catagory AC-22A
Electrical life 8000 times
Mechanical life 20000 times
Pollution degree Level 2
Cabling capacity 1~50mm2
Quality certificate CCC certificated
Standard IEC60947-3, GB14048.3
WH1-80 Overall and mounting dimension

Basic Info.

Model NO. WH1-80
Arc-extinguishing Medium Air
Structure MCB
Type Circuit Breaker
Certification ISO9001-2000, CCC
Ka: Icm 2.84ka
Width 18, 36, 54, 72mm
Specification IEC60947-3, GB14048.3
Origin Prc
Production Capacity 15, 000, 000
Speed Normal Type Circuit Breaker
Installation DIN Rail
Poles Number 1p, 2p, 3p, 4p
Function Disconnector
Voltage AC230/400V
AMPS 20A, 25A, 32A, 40A, 50A, 63A, 80A
Transport Package Paper Box
Trademark Westhomes
HS Code 8536200000

Packaging & Delivery

Package Size 22.00cm * 8.00cm * 8.00cm
Package Gross Weight 1.500kg

FREQUENTLY ASKED QUESTION (FAQ)

What is a switch disconnector, and what does the WH1-80 4P do? plus-square Created with Sketch Beta. minus-square Created with Sketch Beta.

A switch disconnector is a mechanical switching device that both makes/breaks load current and provides a clear, verifiable isolating gap so downstream equipment can be safely de-energized for maintenance. The WH1-80 4P performs this function on a four-pole (three phases plus neutral) circuit, combining load-break switching and isolation in one DIN-rail unit. It is specified to IEC 60947-3 rather than to an overcurrent protection standard.

What does "4P" mean, and when do I need all four poles switched? plus-square Created with Sketch Beta. minus-square Created with Sketch Beta.

"4P" means the device opens all four conductors simultaneously—L1, L2, L3 and the neutral. You need 4-pole switching when the neutral must be physically disconnected for safe isolation (for example, in TT/IT earthing systems, where neutral faults can energize the circuit), or when local wiring rules require neutral isolation for certain three-phase loads. It is also commonly used as the main incomer switch in a distribution board feeding mixed single- and three-phase circuits.

What does the "80A" rating mean? plus-square Created with Sketch Beta. minus-square Created with Sketch Beta.

The 80A is the rated operational current (In), meaning the switch can carry and repeatedly make/break up to 80 amperes of continuous load current under its stated utilization category. It is not an overcurrent trip rating—the WH1-80 will not trip on overload or short circuit by itself, so upstream fuses or an MCB/MCCB must provide short-circuit and overload protection. Always size conductors and upstream protection to match the 80A rating and the actual load.

Is it load-break capable—can I switch it while the circuit is live? plus-square Created with Sketch Beta. minus-square Created with Sketch Beta.

Yes. As a switch disconnector per IEC 60947-3, the WH1-80 is designed to make and break its rated load current, unlike a pure disconnector that must only be operated dead. Its exact switching duty depends on the utilization category (e.g., AC-21 for resistive loads, AC-22 for mixed loads, AC-23 for motor loads), so verify the datasheet before switching motor or highly inductive loads. It should still be treated as a service switch, not a high-frequency operating device.

How is it mounted—DIN rail? plus-square Created with Sketch Beta. minus-square Created with Sketch Beta.

The WH1-80 mounts on standard 35 mm DIN rail (the same rail used by MCBs and RCCBs), allowing it to be snapped into a modular distribution board or enclosure alongside other protective devices. This makes installation quick and keeps the panel modular. Ensure the enclosure provides adequate clearance, correct ingress protection (typically IP20 to IP40 inside the board), and ventilation for the 80A current-carrying capacity.

How do I wire a 4P WH1-80? plus-square Created with Sketch Beta. minus-square Created with Sketch Beta.

Connect the supply to the line terminals (marked "IN") and the load to the load terminals (marked "OUT"), keeping L1/L2/L3/Neutral in the correct sequence across all four poles. Use correctly sized copper lugs/cables rated for 80A, torque the screw terminals to the manufacturer's value, and dress conductors so no strain reaches the terminals. Because the device switches the neutral too, confirm the upstream earthing arrangement and that downstream circuits will not retain any neutral-to-earth potential when the switch is off.

Does the WH1-80 support lockout/tagout (LOTO)? plus-square Created with Sketch Beta. minus-square Created with Sketch Beta.

Yes. Switch disconnectors are the standard isolation point for lockout/tagout, and the WH1-80 is designed to accept a padlock fitted through the operating handle in the "OFF" position so it cannot be re-energized while work is carried out downstream. Always padlock in the open (OFF) position and verify with a test instrument that the circuit is dead before touching any conductors. This positive-opening design is a key requirement of IEC 60947-3 for isolation devices.

Can it be used as the main switch for a distribution board? plus-square Created with Sketch Beta. minus-square Created with Sketch Beta.

Yes. A 4P 80A switch disconnector is a typical choice as the main (incomer) switch of a small-to-medium distribution board, providing a single point to isolate the entire installation. Remember it provides switching and isolation only, not protection—pair it with an upstream breaker or fuses that protect the board and its cables against overload and short circuit. In domestic or commercial consumer units, it is often combined with downstream RCBOs/MCCBs for circuit-level protection.

What is the difference between a switch disconnector and an MCB? plus-square Created with Sketch Beta. minus-square Created with Sketch Beta.

An MCB (miniature circuit breaker) protects a circuit by automatically tripping on overload or short-circuit current, but it is not primarily rated as a verifiable isolation device for LOTO duty. A switch disconnector does the opposite job: it gives a manual, positive, load-break switch with a clearly visible isolating gap for safe maintenance. In practice they complement each other—the disconnector isolates, the MCB protects; never rely on an isolator alone for fault protection.

Which standard does it meet, and how do I maintain/test it? plus-square Created with Sketch Beta. minus-square Created with Sketch Beta.

The WH1-80 is built to IEC 60947-3, the international standard for low-voltage switches, disconnectors, and switch-disconnectors up to 1000 V AC. Maintenance is minimal: visually inspect contacts/terminals, re-torque screws periodically, and exercise the handle through several open-close cycles to keep the mechanism free. During periodic electrical testing, verify the isolating gap with a continuity/test instrument and confirm the handle and padlock facility operate correctly.
