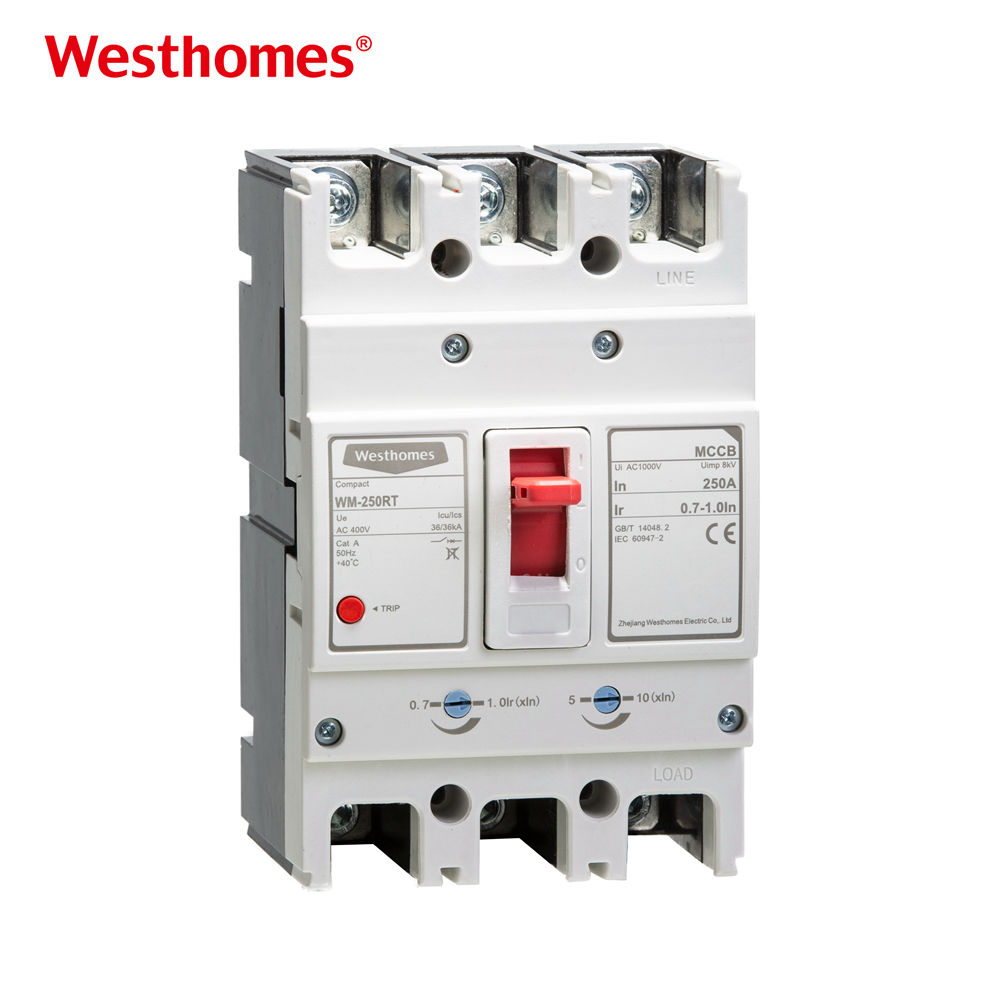

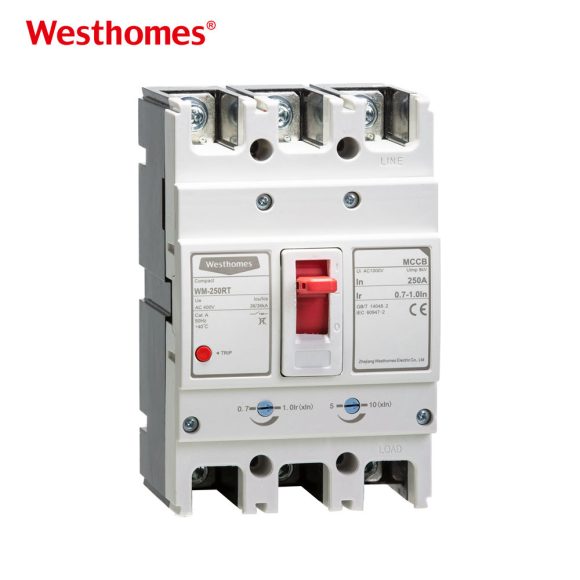

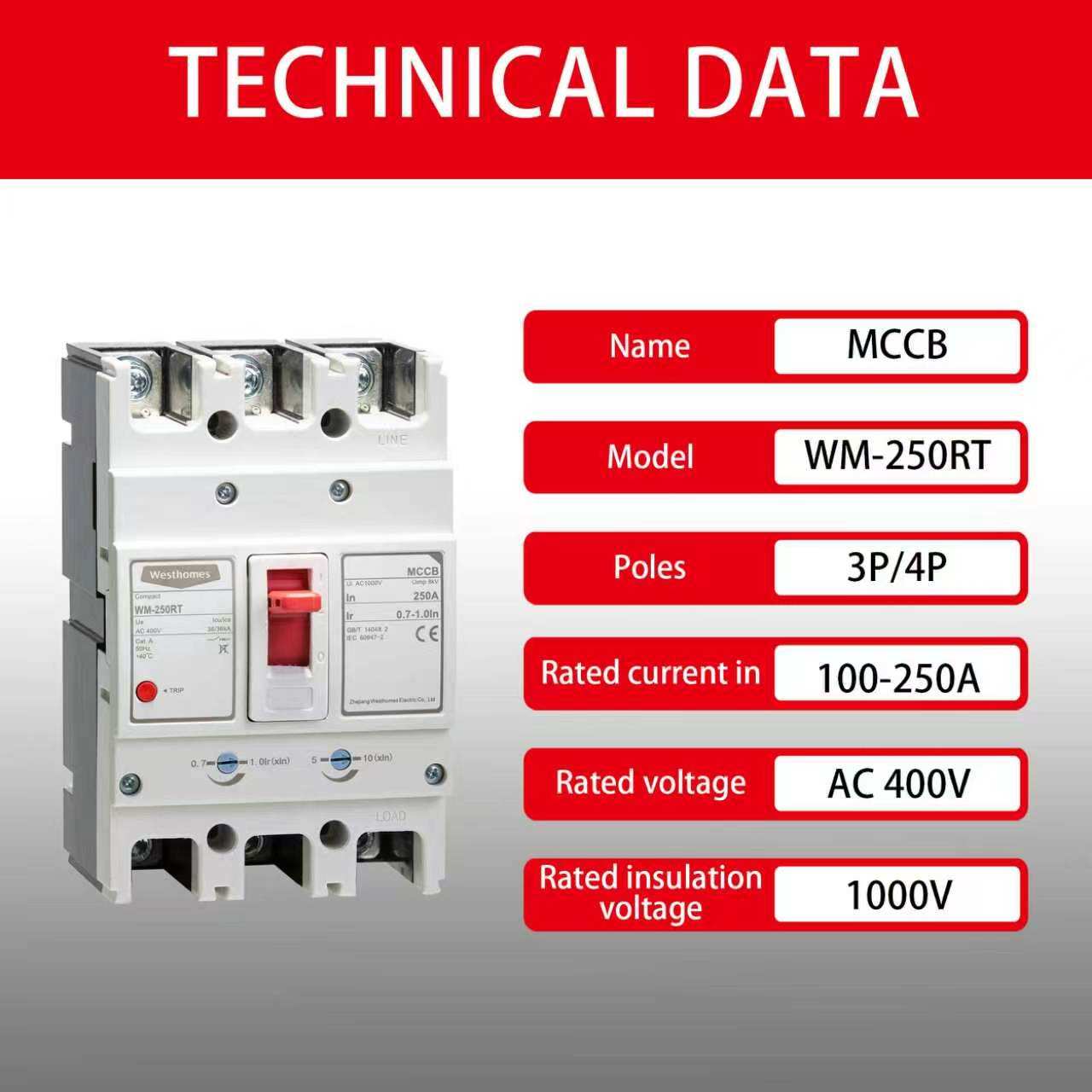

Thermal Magnetic Circuit Breaker

A thermal magnetic circuit breaker is an electrical protection device that combines thermal overload protection and magnetic short-circuit protection in one unit.
The thermal mechanism protects electrical circuits from continuous overcurrent, while the magnetic mechanism provides instant protection against high fault currents caused by short circuits.
Westhomes thermal magnetic circuit breakers are widely used in low-voltage distribution systems, industrial equipment, and commercial electrical applications.

A thermal magnetic circuit breaker uses two different protection mechanisms:
Thermal protection:
A bimetal element detects excessive current over time. When the temperature rises above the safe limit, the breaker trips after a delay.
Magnetic protection:
An electromagnetic mechanism reacts immediately when a high short-circuit current occurs, quickly disconnecting the circuit.
This combination provides reliable protection against both overload and short-circuit faults.

The main difference is their response time and protection purpose.
Protection | Function | Response
Thermal Trip | Protects against overload current | Delayed tripping
Magnetic Trip | Protects against short circuit current | Instant tripping
Thermal protection prevents overheating caused by excessive current, while magnetic protection prevents equipment damage caused by sudden high fault currents.

The main advantages include:
Reliable overload protection
Fast short-circuit interruption
Simple and durable structure
Cost-effective protection solution
Suitable for various electrical applications
Thermal magnetic breakers remain one of the most widely used protection devices in low-voltage systems.

Thermal magnetic circuit breakers are commonly used in:
Industrial distribution systems
Factory control cabinets
Commercial buildings
Motor protection circuits
HVAC systems
Pump and compressor applications
They provide reliable protection for equipment and electrical wiring.

Yes.
Thermal magnetic circuit breakers are commonly used in motor feeder protection because they can handle overload conditions and short-circuit faults.
For motor applications, the magnetic trip setting should be selected carefully to avoid unwanted tripping caused by high starting currents.

The main difference is the trip unit technology.
Type | Protection Method | Characteristics
Thermal Magnetic Circuit Breaker | Mechanical thermal and magnetic mechanism | Reliable, simple, economical
Electronic Circuit Breaker | Electronic sensing and control | Higher accuracy, adjustable settings
Thermal magnetic breakers are suitable for standard applications, while electronic breakers are preferred for advanced protection coordination.

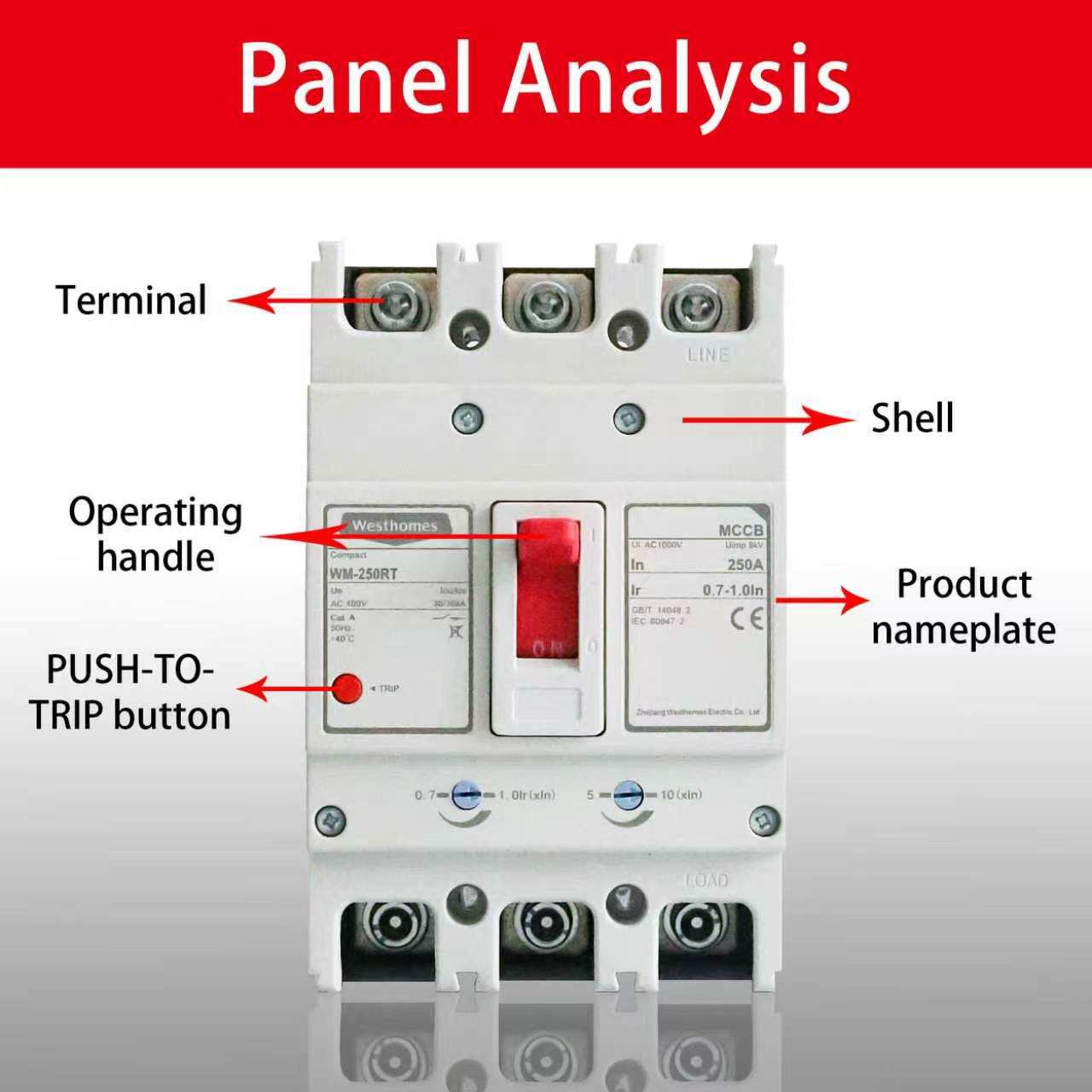

An adjustable thermal magnetic circuit breaker allows users to modify protection settings according to actual load requirements.
Typical adjustable parameters include:
Thermal overload current
Magnetic short-circuit trip current
This flexibility improves coordination between protection devices and electrical equipment.

The correct selection should consider:
Rated current of the load
System voltage
Short-circuit current level
Breaking capacity
Load characteristics
Installation environment
The breaker rating should match the cable capacity to ensure effective protection.

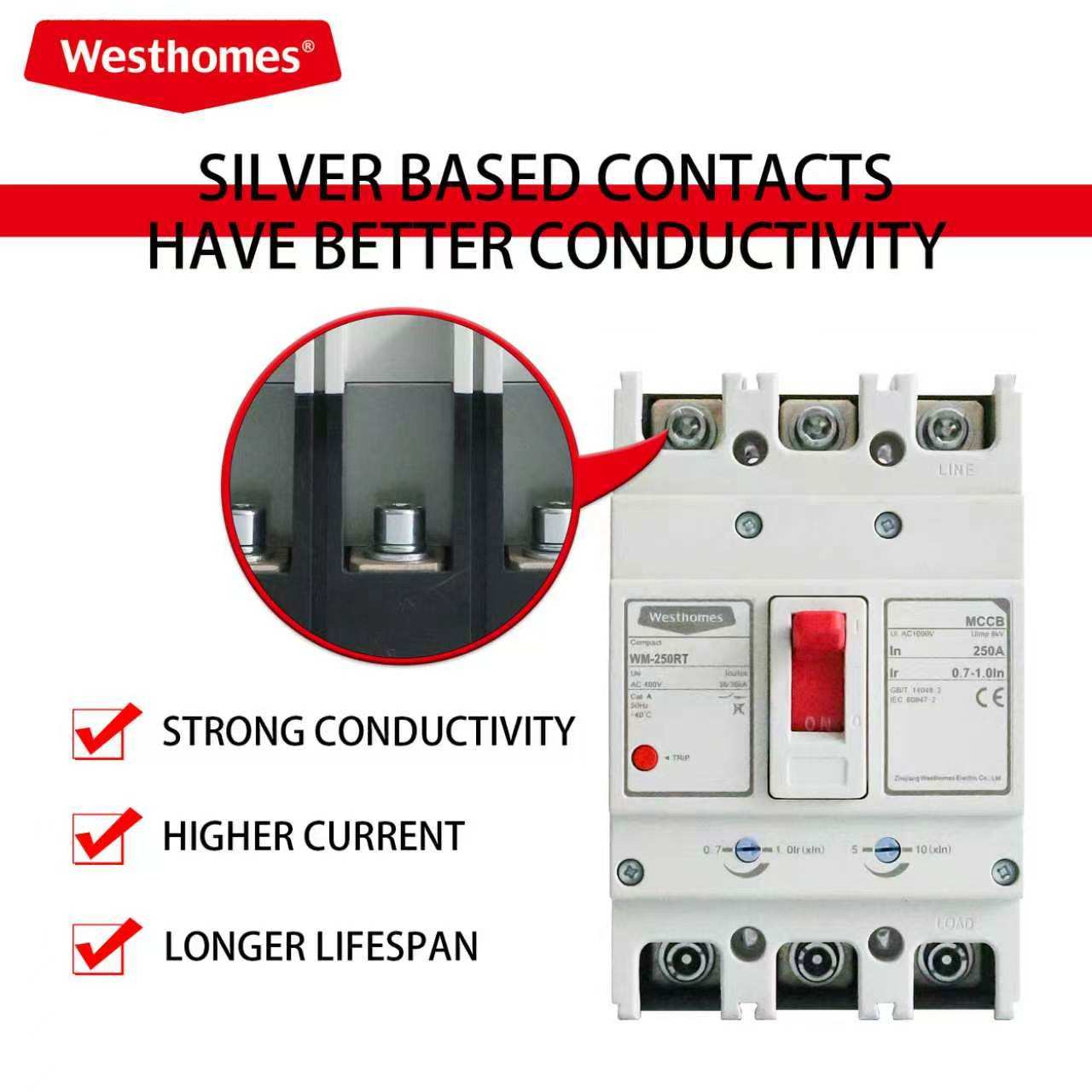

Westhomes thermal magnetic circuit breakers combine reliable protection technology, advanced manufacturing processes, and durable mechanical design.
With accurate overload and short-circuit protection, Westhomes breakers provide safe and stable solutions for industrial, commercial, and low-voltage distribution applications.
