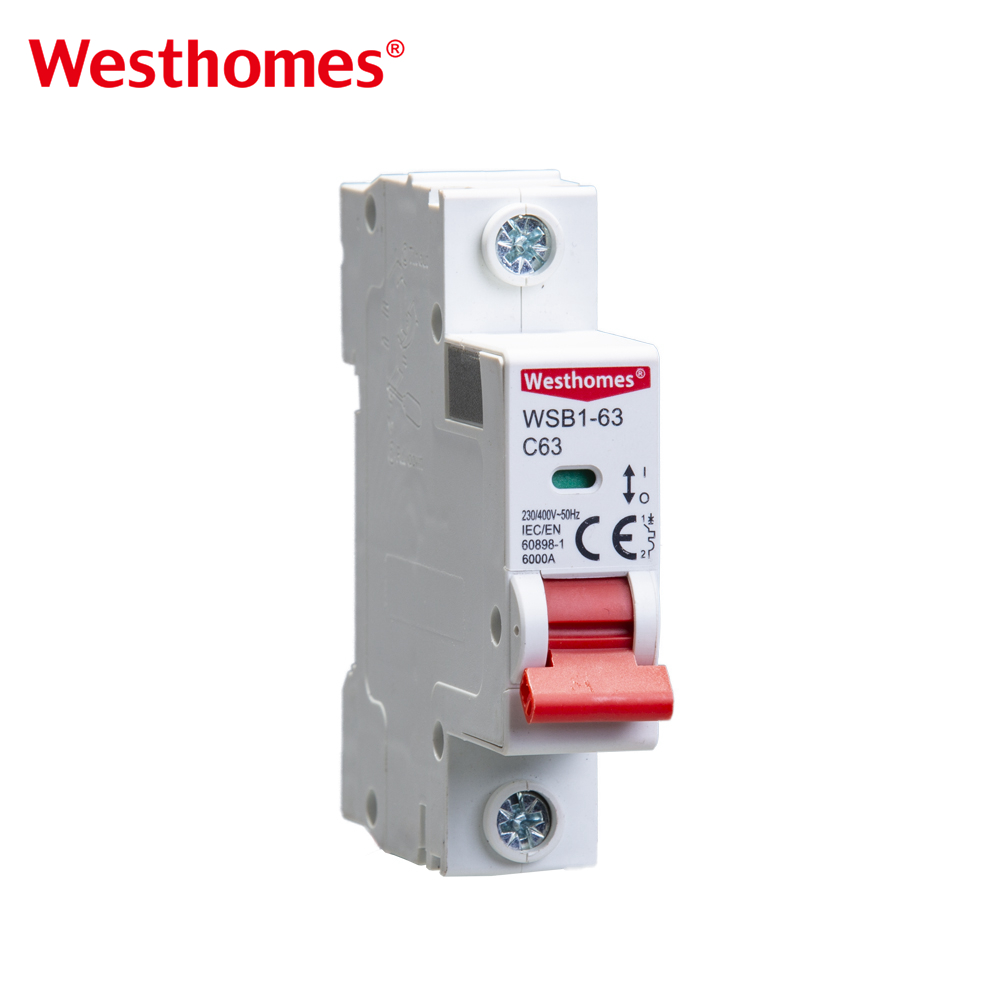

The WSB1-63 1P Miniature Circuit Breaker (MCB) Engineered to deliver 6kA breaking capacity, this compact circuit breaker is ideal for residential, commercial, and similar building installations where 1-pole circuit protection is required.
The WSB1-63 1P Miniature Circuit Breaker (MCB) is designed for reliable overload and short-circuit protection in AC circuits of 50Hz/60Hz, with a rated voltage of 230V/400V and a rated current range from 6A to 80A.
As part of the trusted WSB1-63 series, this 1P MCB ensures dependable electrical line protection and supports infrequent manual switching. It conforms to international standards GB 10963.1 and IEC 60898-1, ensuring high-quality performance that meets global safety and manufacturing benchmarks.
Applications:
Compact moulded case design for panel integration
Commercial office buildings
Residential complexes
Light industrial installations
Control panels and distribution boards
Key Features:
1P (Single Pole) configuration
Rated current: 6A–80A
Rated voltage: AC 230V/400V
Breaking capacity: 6kA
Complies with GB 10963.1 & IEC 60898-1
Safe and efficient protection against overload and short circuits
| Item No. | WSB1-63 |
| Rated current In(A) | 6, 10, 16, 20, 25, 32, 40, 50, 63 |

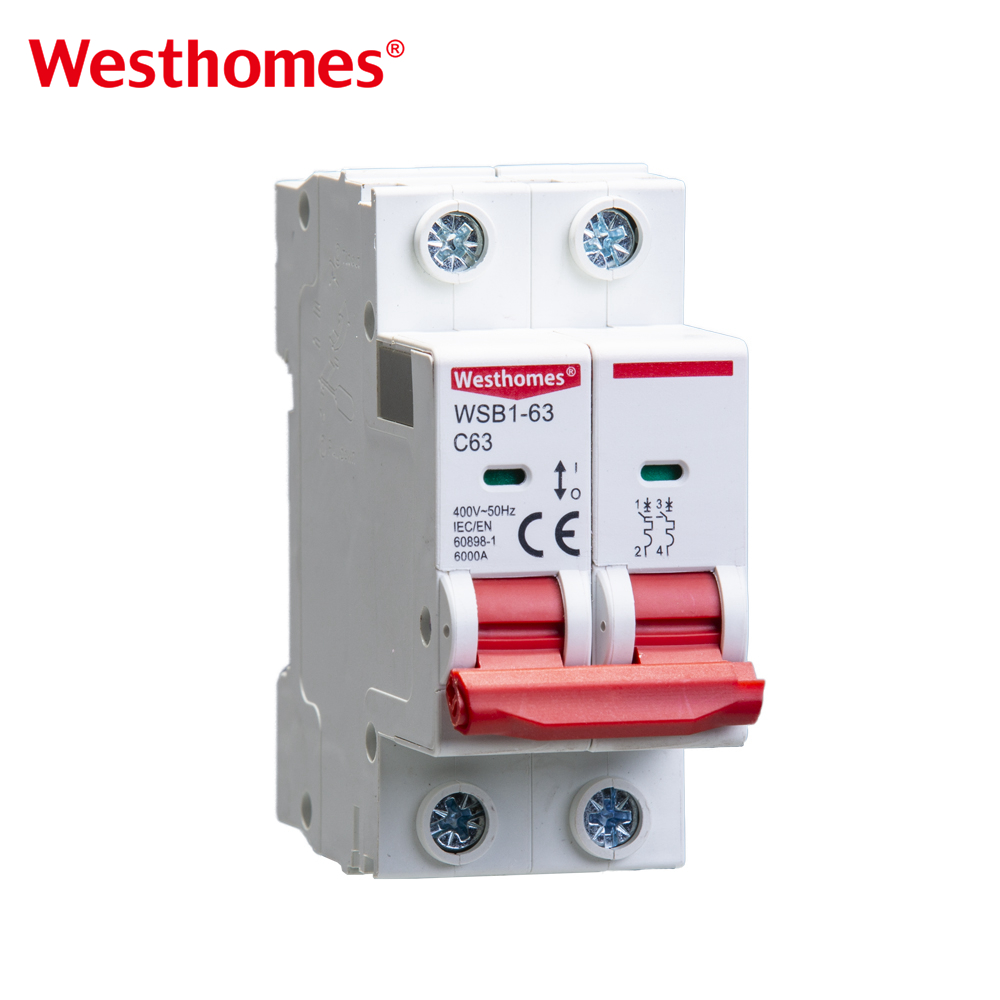

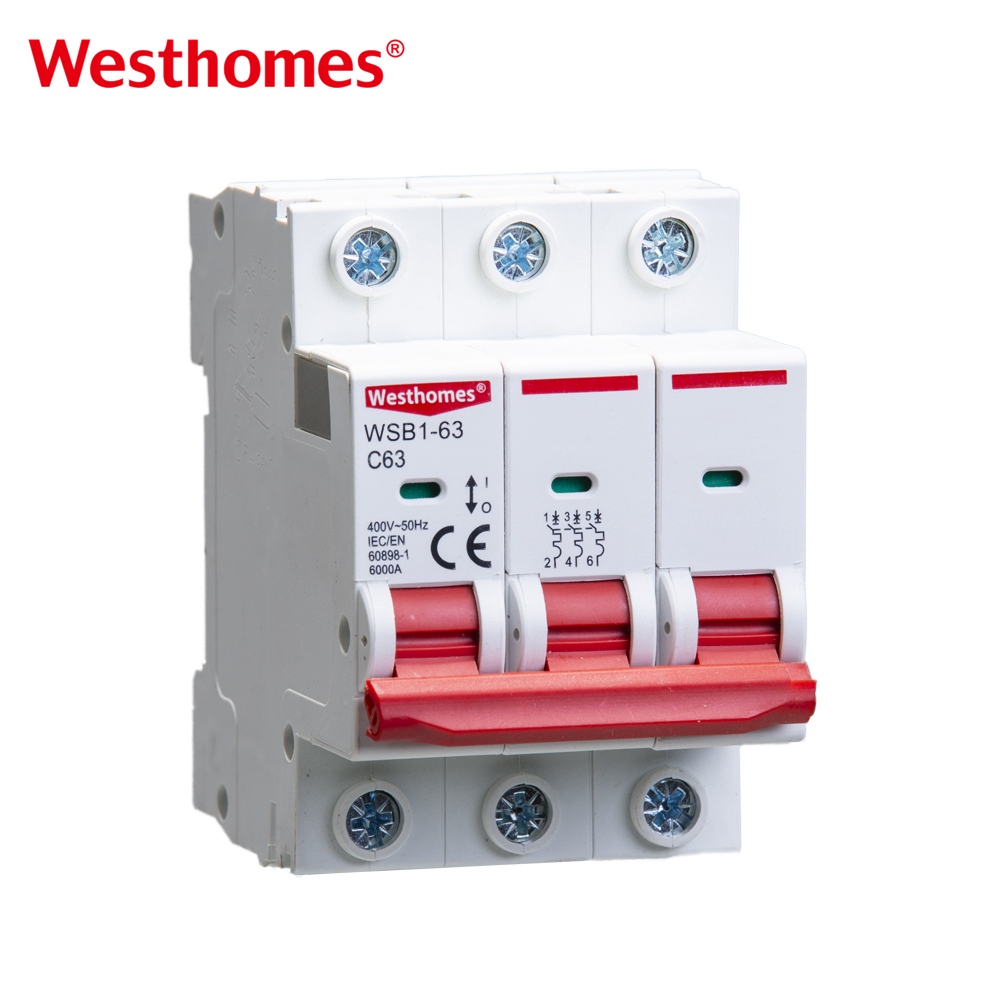

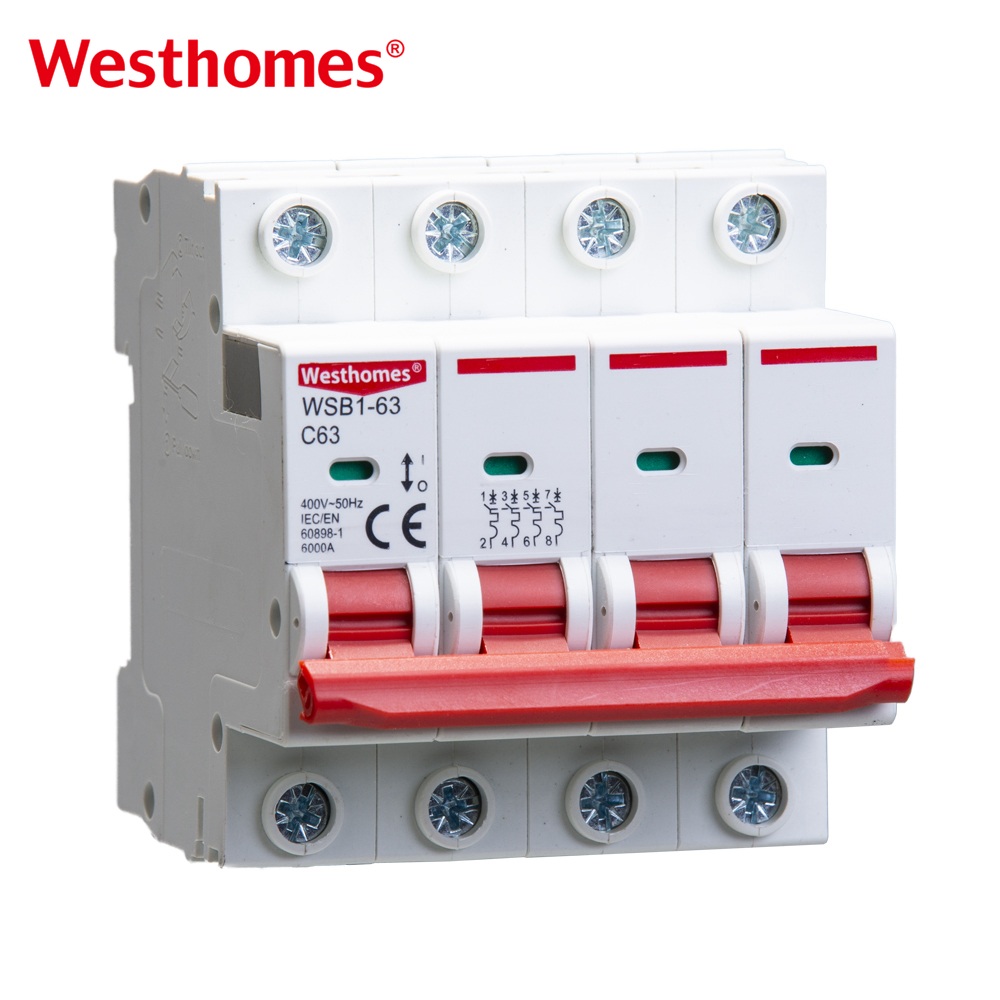

| Pole number | 1P, 2P, 3P, 4P |
| Trip characteristics | C type(5-10In); D type(10-20In) |
| Rated insulating voltage Ui(V) | 690 |
| Rated operating voltage Ue(V) | AC230V/AC400V |
| Rated impulse voltage Uimp(kV) | 4 |
| Breaking capacity Icu(kA) | 6 |
| Mechanical life(times) | 20000 |
| Electrical life(times) | 4000 |
| No. | Rated current | Initial state | Test current | Time limit | Expected result |
| 1 | In≤63 | Cold state | 1.13In | t≤1h | Not tripping |
| In>63 | t≤2h | ||||
| 2 | In≤63 | Just followed the last test item | 1.45In | t<1h | Tripping |
| In>63 | t<2h | ||||
| 3 | In≤32 | Cold state | 2.55In | 1s | Tripping |
| In>32 | 1s | ||||
| 4 | Type C | Cold state | 5In | t≤0.1s | Not tripping |
| 10In | t<0.1s | Tripping |
| Package Size | 22.00cm * 8.00cm * 8.00cm |
| Package Gross Weight | 1.500kg |
| Model NO. | WSB1-63 |
| Arc-extinguishing Medium | Air |
| Structure | MCB |
| Type | Circuit Breaker |
| Certification | ISO9001-2000, CE, CB, CCC |
| Voltage | AC230V/400V |
| Production Line | 100% Automatic |
| Trademark | Westhomes |
| Specification | 18mm |
| HS Code | 8536200000 |
| Speed | Normal Type Circuit Breaker |
| Installation | Fixed |
| Poles Number | 1p-4p |
| Function | Conventional Circuit Breaker, Circuit-Breaker Failure Protection, Overcurrent Protection, OVP(Overvoltage Protection) |
| Cooperation Type | ODM OEM |
| Rated Current | 1, 2, 3, 5, 6, 10, 16, 20, 25, 32, 40, 50, 63 |
| Transport Package | Paper Box |
| Origin | China |
| Production Capacity | 10000PCS/Week |
