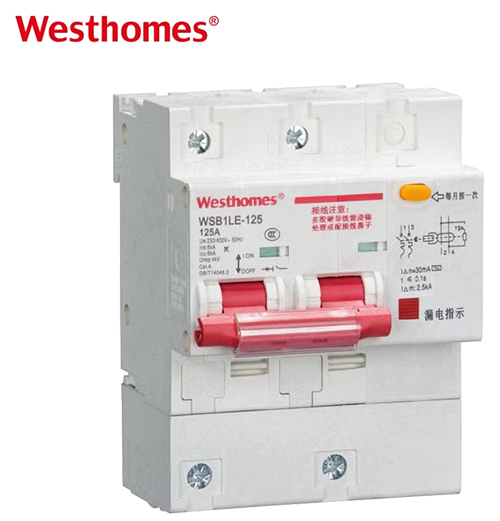

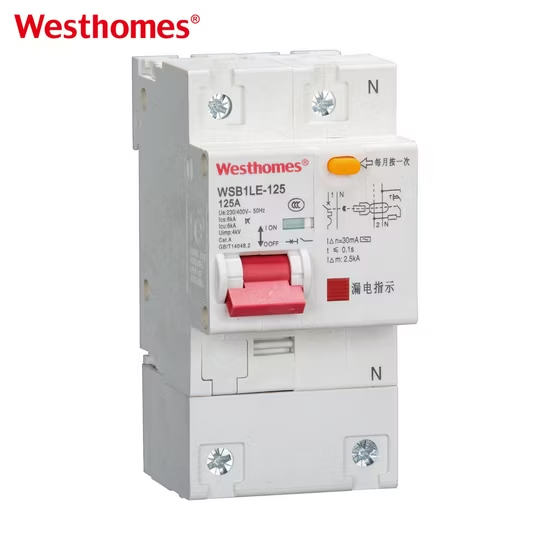

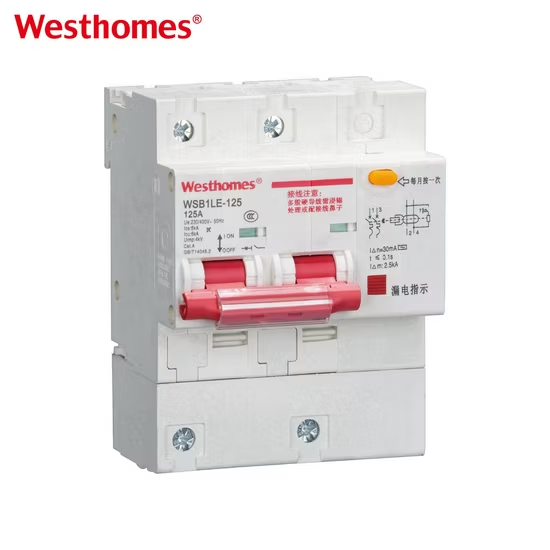

WSB1LE-125 4P RCBO AC 230V/400V Power Protection

RCBO stands for Residual Current Circuit Breaker with Overcurrent protection — it combines in a single DIN-rail unit both the residual-current (earth-leakage) detection function of an RCD and the overcurrent/short-circuit breaking function of an MCB. The WSB1LE-125 4P is a four-pole RCBO designed for three-phase 230/400 V AC installations, protecting people against electric shock, equipment against earth faults, and cables against overload and short circuit.

Internally the unit integrates (1) a toroidal core residual current transformer that detects any mismatch between phase and neutral currents, (2) a thermal bimetal that trips on overload, and (3) an electromagnetic solenoid that trips instantaneously on short circuit. Together they cover earth-leakage, overload, and short-circuit faults in a single device.

"125" refers to the rated frame current (Inm) of the RCBO — the maximum current the device body can mechanically and thermally handle, in this case 125 A. The actual rated current of a specific trip unit inside the frame can be lower (e.g., C63), but the housing, terminals, and busbar ratings are sized for up to 125 A.

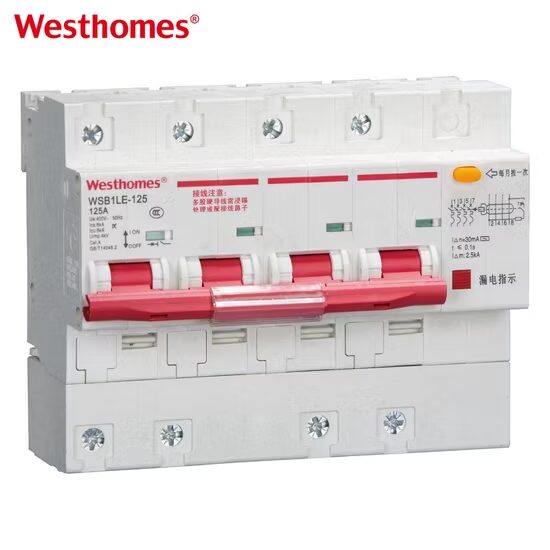

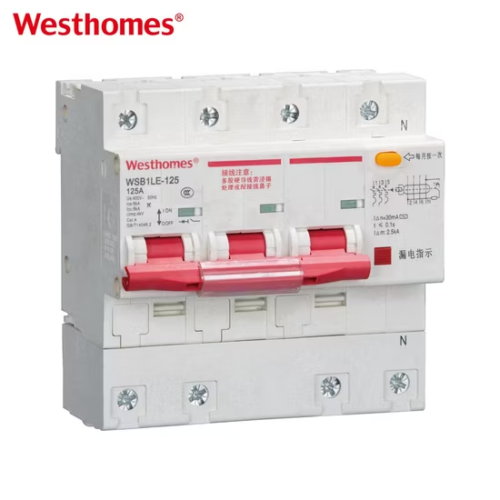

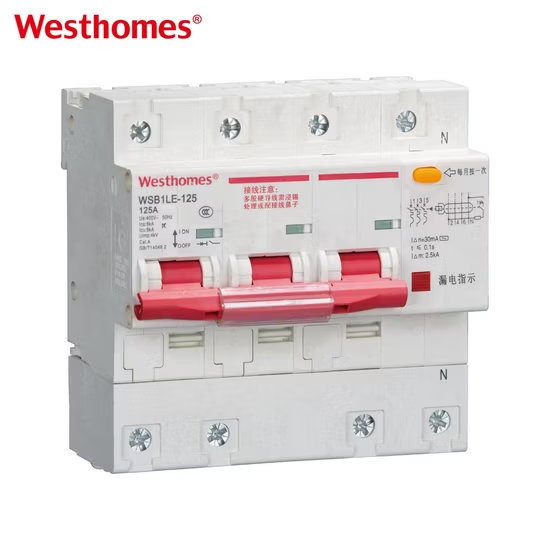

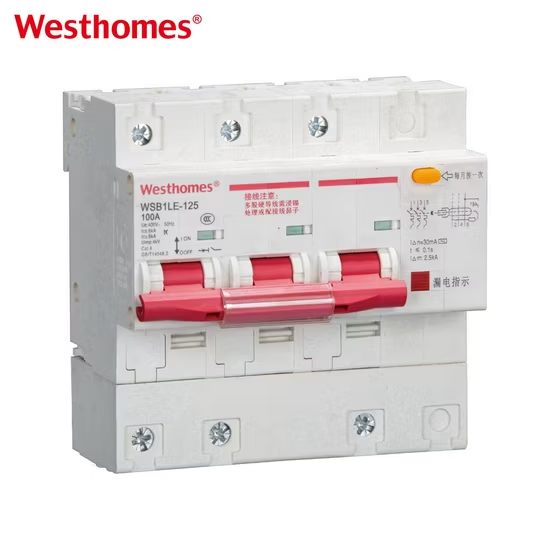

A 4P (four-pole) RCBO switches and monitors all four conductors of a three-phase four-wire system — L1, L2, L3, and N. It is used in TN-S, TT, and TN-C-S installations where the neutral must also be disconnected, such as commercial distribution boards, three-phase machine supplies, and large residential main boards. It provides residual-current monitoring on the sum of all four conductors.

All phase and neutral conductors pass through a toroidal differential current transformer. In a healthy circuit the currents sum to zero (ampers in equal and opposite directions). Any imbalance — caused by current leaking to earth through damaged insulation or a human body — produces a magnetic flux in the core, which induces a voltage in the secondary winding and triggers the tripping mechanism when the residual current exceeds the rated sensitivity.

The WSB1LE-125 is typically available in 30 mA sensitivity, which is the level required for direct-contact (personnel) protection. It will trip within milliseconds when residual current reaches 30 mA, below the threshold of ventricular fibrillation for a human being. Higher-sensitivity variants (100 mA, 300 mA, etc.) are also used for fire protection or equipment-only protection.

The test button manually injects a simulated residual current through an internal test resistor to verify that the trip mechanism still operates correctly. It should be pressed once a month; if the device does not trip, it has failed and must be replaced. The test button must never be used as a normal means of switching the circuit on and off.

Nuisance tripping is usually caused by high-frequency earth leakage from inverter-driven loads, variable-speed drives, LED drivers, or EMC filters; by long cable runs with capacitive leakage current; by damp or dirty insulation; or by transient surges. Fixes include selecting a Type S/selective or Type A/F RCBO, increasing the sensitivity to 100/300 mA for non-personnel circuits, shortening cable lengths, or isolating sensitive equipment on separate RCBOs.

A separate RCCB has no overcurrent protection, so it must be paired upstream or downstream with an MCB/fuse to break overload and short-circuit currents. The RCBO integrates both functions in one unit, saving DIN rail space, removing a wiring error point, and tripping only the affected circuit rather than the whole board. This is why RCBOs are now the default in modern consumer units.

The WSB1LE-125 series is designed to IEC 61009-1 (residual current operated circuit-breakers with integral overcurrent protection for household and similar uses) and is also tested to the corresponding GB national standard. It carries CE marking, ensuring the product meets European safety, EMC, and environmental requirements for sale in the EU and many other markets.
