CE CB Approved 4p Breaker-Protector RCCB Residual Current Operated Circuit Break

RCCB (Residual Current Operated Circuit Breaker) is a device that disconnects the supply when it detects current leakage to earth—i.e., when the current going out on the active does not equal the current returning. Inside, all poles pass through a toroidal core; any imbalance (residual current) induces a voltage in the secondary winding, which trips the mechanism. It protects people and property from electric shock and earth faults, not from overload.

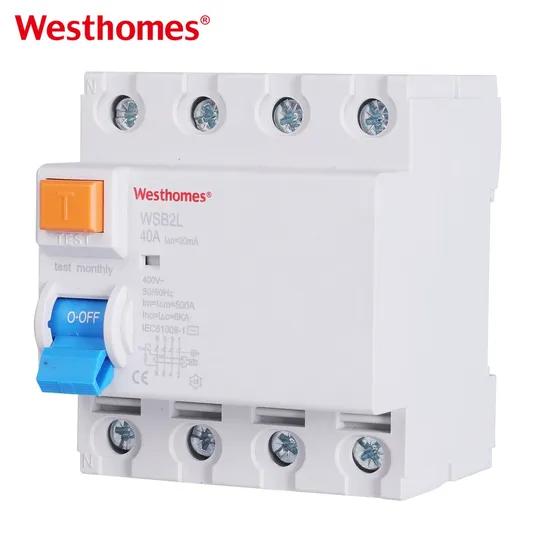

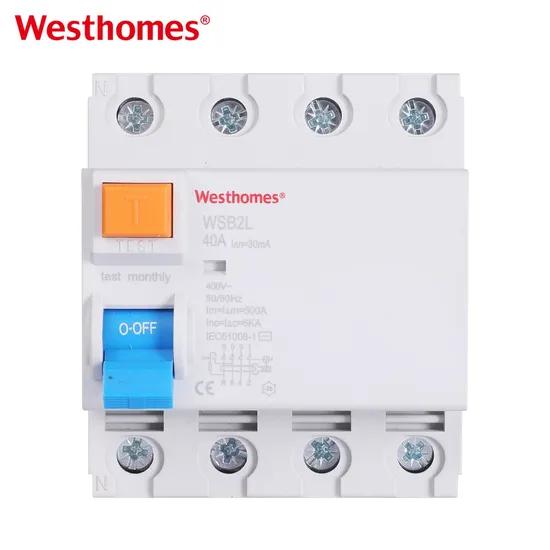

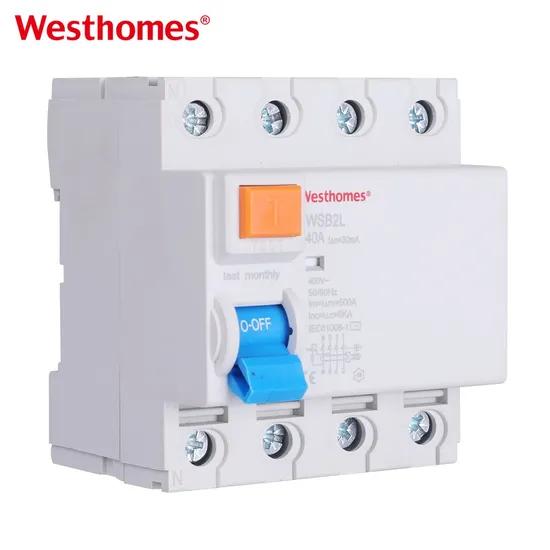

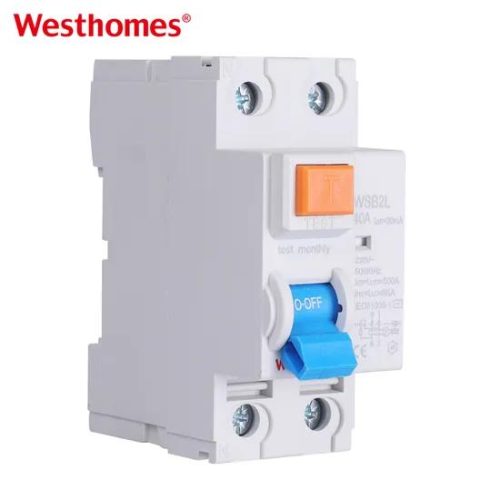

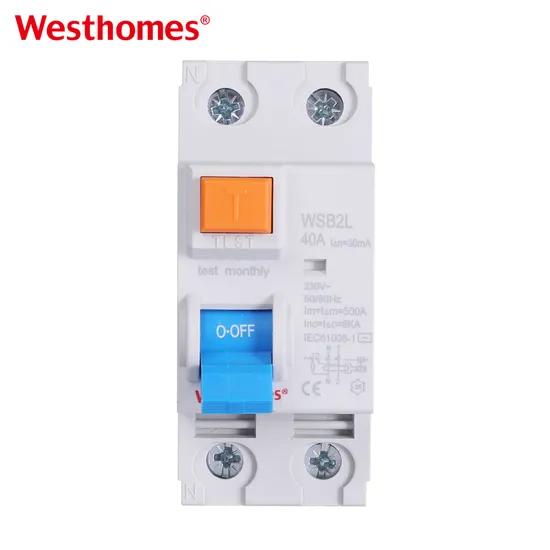

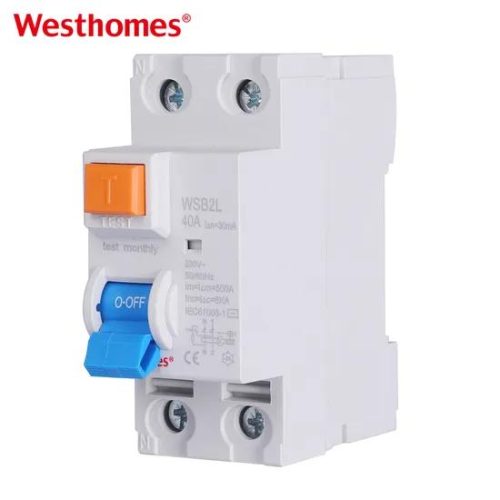

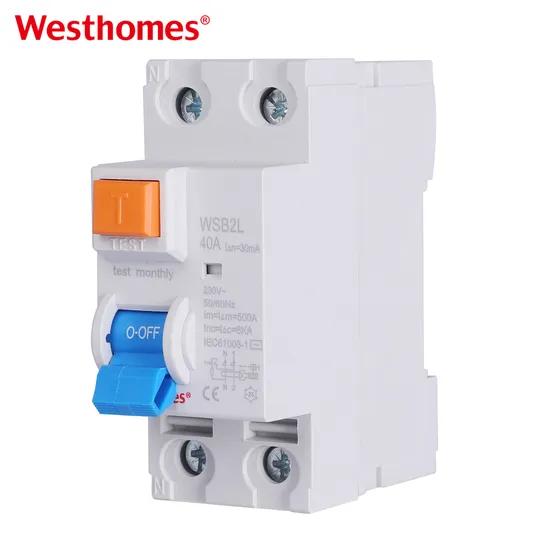

4P means the RCCB switches and monitors all three phases plus the neutral conductor in a three-phase, four-wire system. All four conductors pass through the toroid, so any residual current—even on the neutral—is detected. A 4P RCCB is used at the three-phase distribution board or sub-main, whereas a 2P version is used on single-phase domestic circuits.

Sensitivity is the residual current at which the RCCB will trip. A 30mA device trips when the earth leakage reaches approximately 30mA, which is below the current level that can cause dangerous ventricular fibrillation in a human body. 30mA is the standard rating for socket and bathroom circuits and for direct-contact shock protection; higher sensitivities (100mA, 300mA) are used for fire protection or equipment monitoring.

The test button simulates a small residual current through a test resistor so the user can verify the trip mechanism still operates mechanically. Because RCCBs are safety-critical, the button should be pressed monthly; if the device does not trip, it must be replaced. The test confirms both the electronic sensing and the mechanical release are functional.

No. An RCCB only detects earth leakage and does not protect against overcurrent or short-circuit currents. It must always be installed upstream or downstream of an MCB, MCCB, or fuse that provides overload and short-circuit protection. This is why the product is often described as a "breaker-protector"—the RCCB adds residual-current protection and the associated overcurrent device adds phase protection.

It clips onto a standard 35mm DIN rail inside a distribution board, in the same way as an MCB. Line-side conductors (L1, L2, L3, N) are connected to the marked supply terminals, and load-side conductors to the load terminals. The neutral must be connected to the marked N terminal; mis-wiring, especially reversing line and load, can prevent proper operation.

The CE mark indicates the product meets the applicable EU Low Voltage Directive and EMC Directive requirements. The CB (Certification Body) scheme certificate means an accredited lab has type-tested it to IEC 61008 and reports are accepted in many countries, simplifying market access. Together they give buyers confidence that the device meets internationally recognised safety levels.

RCCBs without integral overcurrent protection are covered by IEC 61008-1. If the device includes built-in overload and short-circuit protection it is instead an RCBO, covered by IEC 61009-1. The standard defines the trip times for rated residual current (e.g., type AC and type A), the test frequency, and the ability to withstand surge currents without nuisance tripping.

Frequent tripping usually indicates a genuine earth fault on the protected circuit—moisture in cables, damaged insulation, leaking appliance capacitors, or a faulty appliance. It can also be caused by cumulative leakage from many appliances on the same circuit, by inrush from LEDs/smoothed power supplies (which calls for a Type A or Type F device), or by lightning-induced surges. An electrician should use an insulation tester to locate the fault rather than simply resetting repeatedly.

It is used as the three-phase earth-leakage main protection in industrial and commercial distribution boards, on three-phase machine tools, heating and air-conditioning plants, pumps, and large sub-mains. It provides combined shock and fire protection for a complete three-phase installation. It is almost always paired with a 3P or 4P MCCB or MCB upstream to clear overloads and short circuits.
