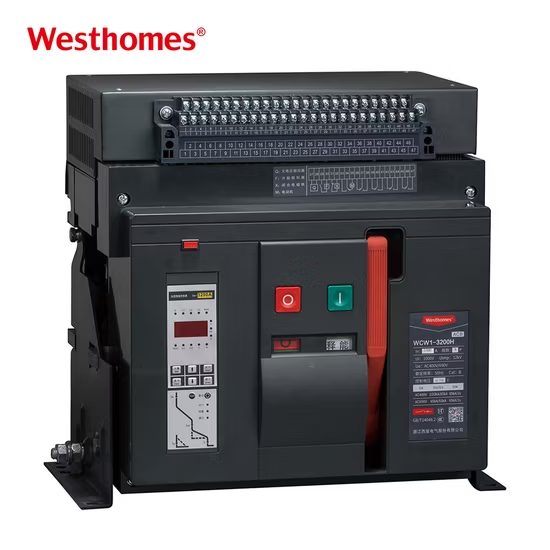

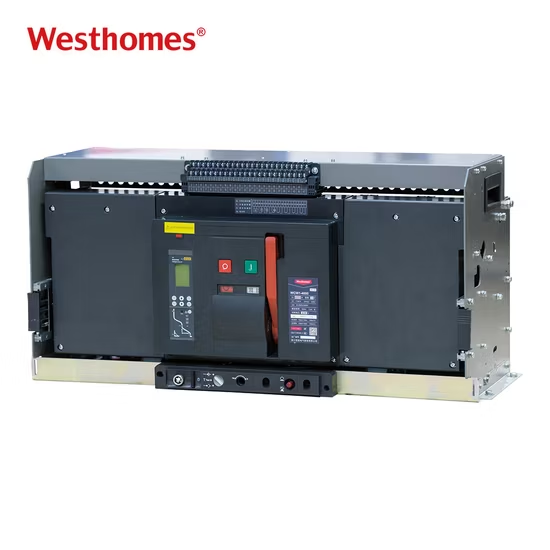

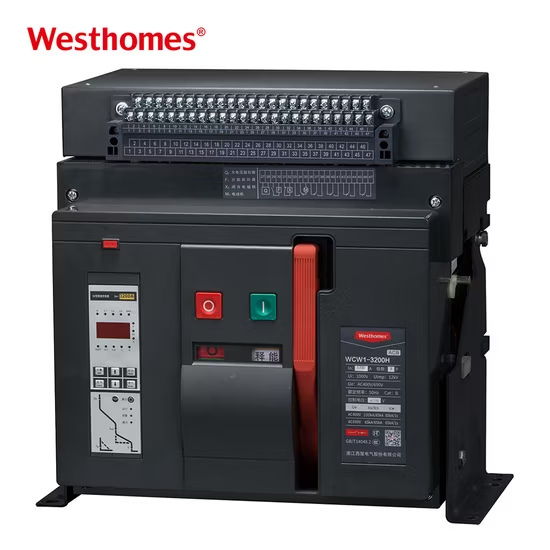

WCW1 Series Intelligent Circuit Breaker | 3200A 3P | Smart Protection

A smart ACB is an air circuit breaker equipped with a microprocessor trip unit that measures electrical quantities in real time, provides fully adjustable protection curves, records faults, meters energy, and communicates over fieldbus or Ethernet. Compared with a traditional thermal-magnetic ACB, it gives operators visibility into loading and faults, supports remote control and diagnostics, and enables selective coordination and predictive maintenance. The "smart protection" label emphasizes this electronic, networked, metering-and-protection platform.

At 3200 A the device is far beyond the practical range of an MCCB, which typically tops out around 1600 A in a sealed moulded case. An ACB of this rating is a drawout frame breaker with high short-time withstand (Icw) and breaking capacity (Icu/Ics), a fully adjustable LSI trip unit, and extensive accessories. It is the correct main-incoming device for large transformers (e.g., 2000–2500 kVA) where an MCCB simply cannot carry the current or coordinate selectively with downstream breakers.

Even at 3200 A continuous current, interruption occurs by opening the main contacts and directing the arc into a heavy-duty arc chute of steel splitter plates that split, cool, and stretch the arc so it cannot re-strike. Magnetic blast coils on the pole accelerate the arc into the chute. Air at atmospheric pressure is the dielectric and cooling medium, which keeps the breaker simple, safe, and suitable for indoor low-voltage switchgear up to 690 V.

The 3200 A is the rated current (In) of the frame — the maximum continuous current each pole can carry at rated ambient temperature (typically 40 °C) without exceeding temperature rise limits. The long-time pickup is adjustable down from In (commonly 0.4 × In to 1.0 × In, i.e., 1280–3200 A) to match the actual transformer rating. The 3200 A frame is a standard main-incoming size for very large commercial buildings, data halls, and heavy industrial plants.

"3P" means the breaker switches three poles, one per phase (L1, L2, L3), and is used on a three-phase three-wire system where the neutral is earthed separately and not switched. The neutral does not pass through the ACB. If the installation requires neutral switching or neutral protection, a 4P version of the same frame should be specified.

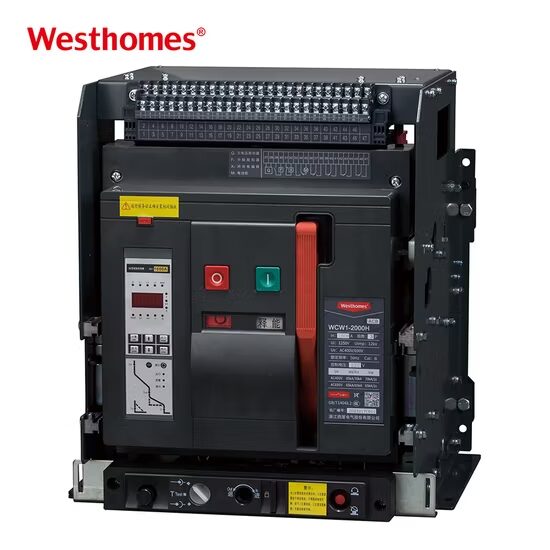

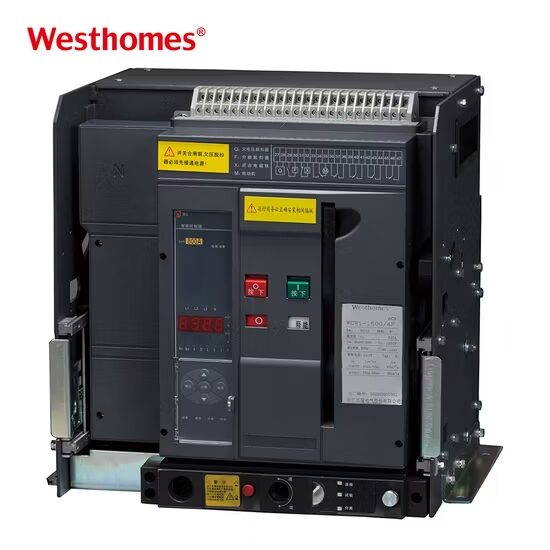

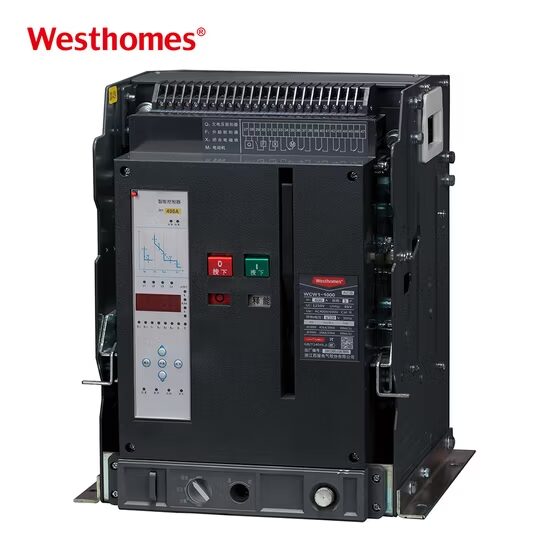

At 3200 A the busbars are massive and cannot be quickly de-energized for maintenance. The drawout truck lets technicians move the breaker to TEST (auxiliaries live, main contacts isolated) for trip testing, or to ISOLATED (withdrawn, visible gap) for maintenance, while the main bus remains energized. This is essential in data centers, hospitals, and continuous-process plants where a complete shutdown for breaker maintenance is unacceptable.

The trip unit provides Long-time (inverse-definite overload), Short-time (definite-delay short-circuit with I²t on/off), and Instantaneous (magnetic) protection, all adjustable. It typically adds earth-fault (residual or ground) protection, neutral protection, phase-unbalance and over/undervoltage alarms, and pre-fault warning. Fault records store the last trips with current magnitude and time stamp, allowing root-cause analysis after an outage.

The communication module (Modbus-RTU over RS-485 or Modbus-TCP over Ethernet) exposes RMS current, voltage, power, energy, power factor, breaker open/closed/tripped status, spring-charged status, and fault records to the BMS or SCADA. Operators can read loading trends, receive alarms before an overload trip, verify coordination settings remotely, and use the logged fault data to diagnose outages. Some models also support remote trip/close and over-the-air setting changes.

The 3200 A intelligent ACB complies with IEC 60947-2 for low-voltage circuit breakers, with CE marking under the EU LVD and EMC directives. Maintenance includes annual inspection of contacts, arc chute, and mechanism; tightening of busbar and control connections; periodic secondary injection testing of the trip unit every 1–3 years; and mechanical operation to keep the spring-charging motor and racking mechanism free. Main contacts and arc chutes should be inspected at the overhaul intervals in the manufacturer's manual.

It is used as the main incoming breaker on the secondary side of large transformers (e.g., 2000–2500 kVA, 400 V) in data centers, large hospitals, airports, shopping malls, convention centers, and heavy manufacturing plants. It is also used as a bus-tie breaker between two low-voltage switchboards, allowing selective load transfer. Its high current rating, drawout design, LSI coordination, and communication make it the central protective and switching element of a modern smart power distribution system.
