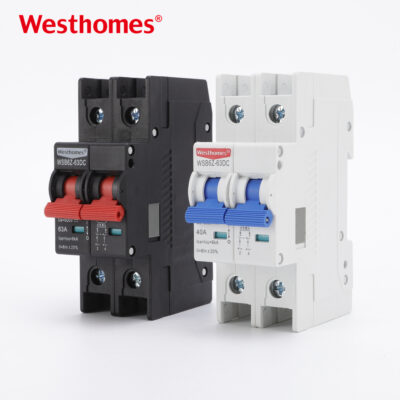

WSB9Z-80 Moulded case circuit breaker
WSB9Z-80 is one of updated type MCCBs researched and developed by the company by using advanced design and manufacture technology internationally.
Get quick appointment for technical support!

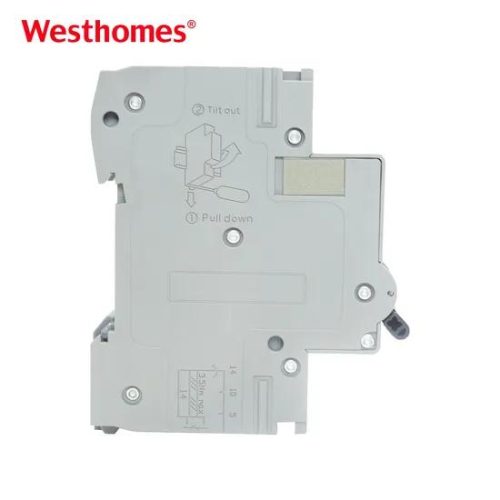

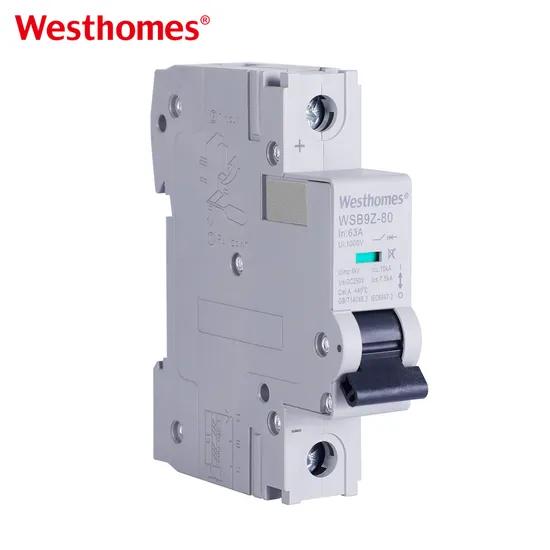

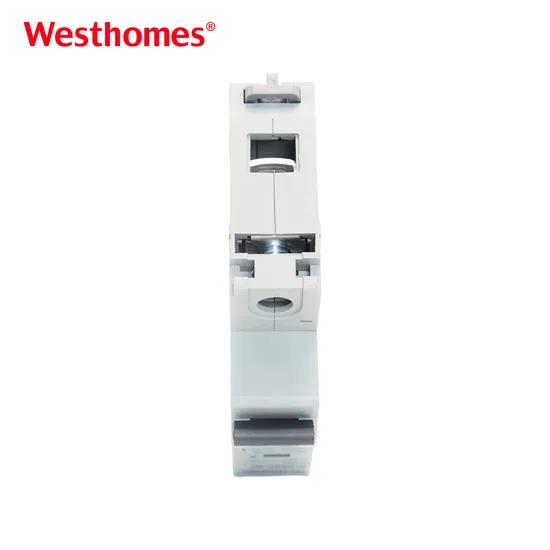

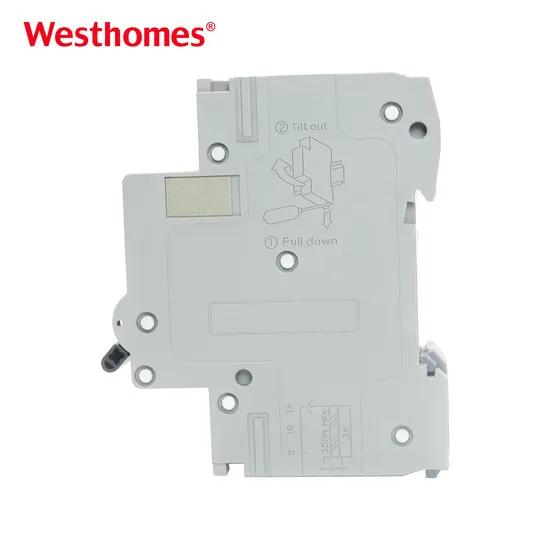

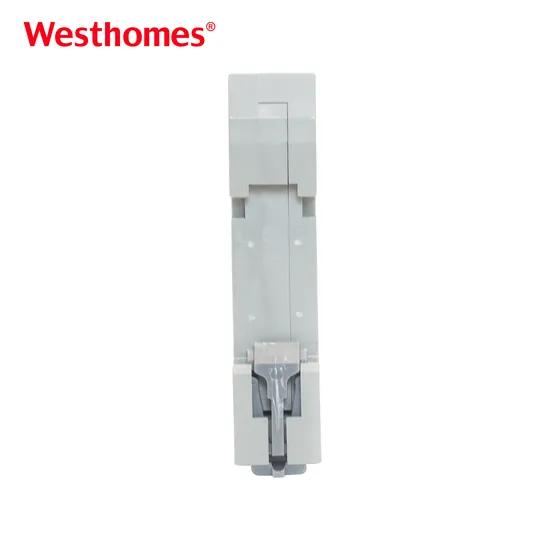

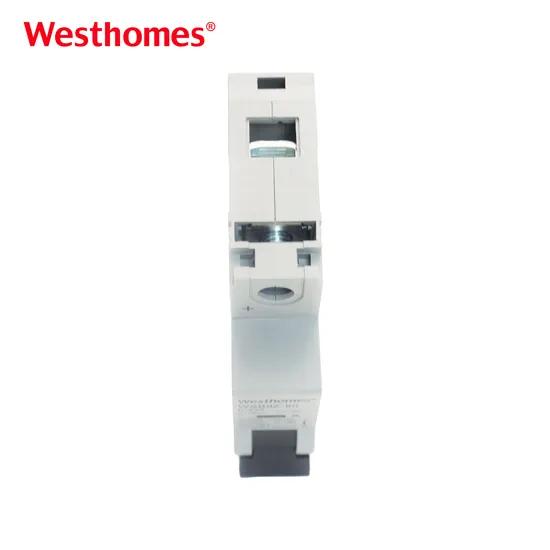

Westhomes 1A to 80A 1 Pole DIN Rail DC MCB Breaker Miniature Circuit Breaker
WSB9Z-80 series MCB is one of updated type MCCBs researched and developed by the company by using advanced design and manufacture technology internationally.
WSB9Z-80 circuit breaker is used for DC rated voltage to 1000V, rated current to 80A line, for overload and short circuit protection, and can also be used as an infrequent operation of the line.Circuit breakers are used in DC applications such as communications and photovoltaic system.
The product meets standards of GB/T14048.2 and IEC6947-2, at international advanced level.
KEY INFORMATION
WSB9Z-80
| Frequency | 50Hz/60Hz |
| Pole | 1, 2, 3, 4 |
| Voltage | DC250V/500V/750V/1000V |
| kA | 10kA |
| Amps | 6-80A |
| Width | 18, 36, 54, 72mm |
| Mounting | Din rail |
MAIN TECHNICAL DATA
| Item No. | WSB9Z-80 |
| Rated current In(A) | 6, 10, 16, 20, 25, 32, 40, 50, 63, 80 |
| Pole number | 1P, 2P, 3P, 4P |
| Trip characteristics | C type |
| Rated insulating voltage Ui(V) | 1000 |
| Rated operating voltage Ue(V) | DC 250V/500V/750V/1000V |
| Rated impulse voltage Uimp(kV) | 4 |
| Breaking capacity Icu/Ics(kA) | 10/7.5 |
| Mechanical life(times) | 20000 |
| Electrical life(times) | 4000 |
